On GS970M/10PS, GS970M/18PS and GS970M/28PS switches, the Link/
Activity/Speed and PoE LEDs provide information about the 10/
1000BASE-T and the 100BASE-TX ports.
GS970M Series PoE switches indicate Link/Activity/Speed and PoE status
with two LEDs for each port (
Figure 19). For each port:
 the left LED corresponds to Link/Activity/Speed
 the right LED corresponds to PoE status
Note
All of the port LEDs are OFF when the switch is operating in the low
power mode. To toggle on the LEDs, use the ecofriendly button. See
“ecofriendly button” on page 41 for more information.

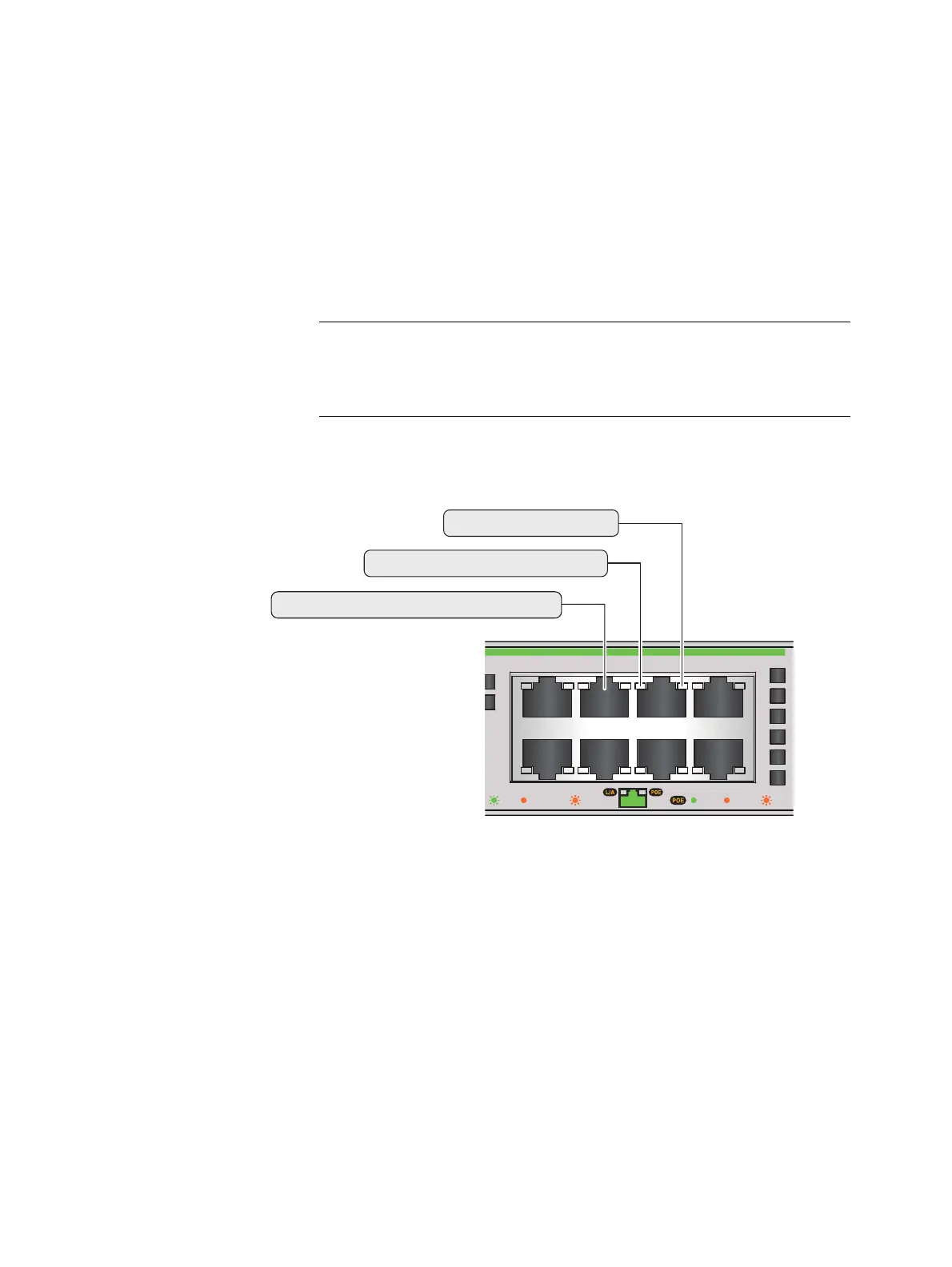

FIGURE 19. LINK/ACTIVITY/SPEED AND POE LEDS
LT
WER
ACT 10/100 LINK ACT PD ON PD ERR MAX C
24 68
1357
Link/activity/speed LED
PoE status LED
10/100/1000Mbps PoE+ ports
