Chapter 5: Installing the Switch in an Equipment Rack
108
Overview of Installing the x530L-10GHXm Switch in an Equipment
Rack
You can install the x530L-10GHXm switch in a 19-inch equipment rack
two ways. One way is with the RKMT-J14 brackets that come with the
switch. Refer to Figure 46.

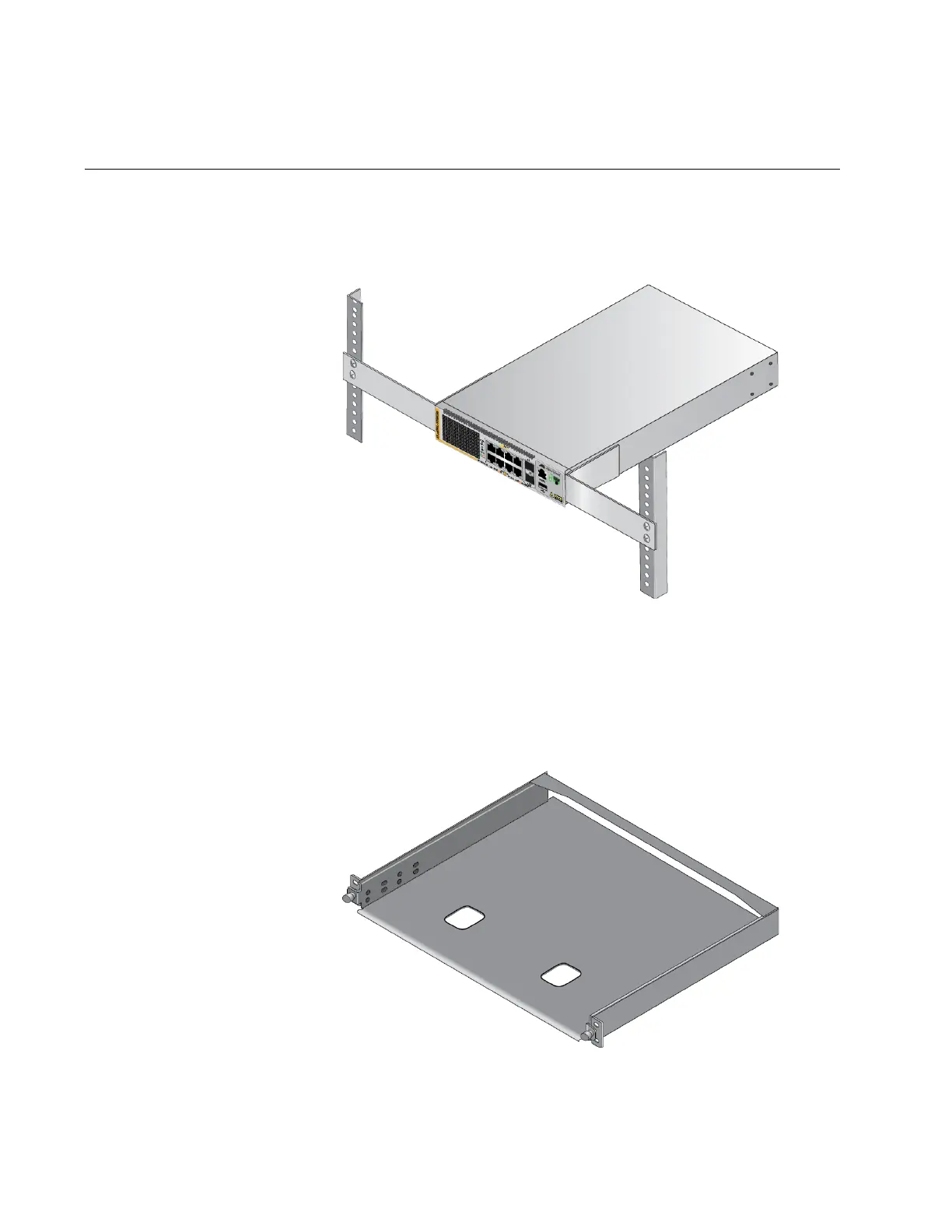

Figure 46. RKMT-J14 Brackets and Switch
For installation instructions, refer to “Installing the x530L-10GHXm Switch
in an Equipment Rack with the RKMT-J14 Brackets” on page 110.
You can also install the switch in an equipment rack with the optional
RKMT-J15 bracket. Refer to Figure 47.
Figure 47. RKMT-J15 Bracket
