Figure 21 shows examples of stack trunks for two, three, and four
switches, using the default stacking ports 9 and 10 on 10-port x530L-
10GHXm switches.

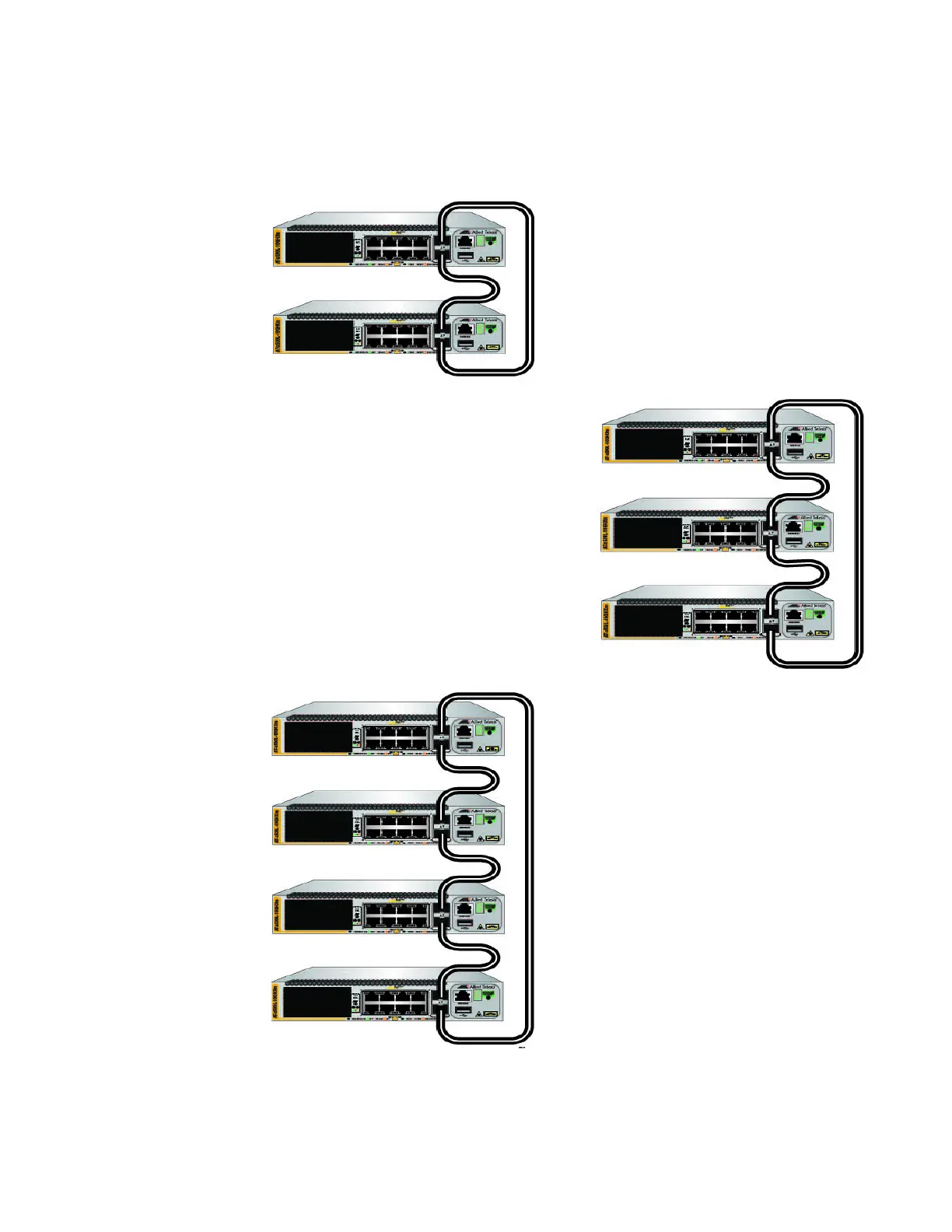

Figure 21. Valid Stack Trunk Using Default Stacking Ports 9 to 10 on 10-
Port x530L Switches
Stack of Two Switches
Stack of Three Switches
Stack of Four Switches
