x530L Series Installation Guide for Virtual Chassis Stacking
143
Installing the Power Cord Retaining Clip(s)
The power cord retaining clips that come with the switch protect the power
cords from being accidentally unplugged from the unit.
1. To install a power cord retaining clip, position it the “u” part facing
down, press in the sides, and insert the ends of the clip into the holes
in the retaining bracket on the AC connector on the switch. Refer to
Figure 80.

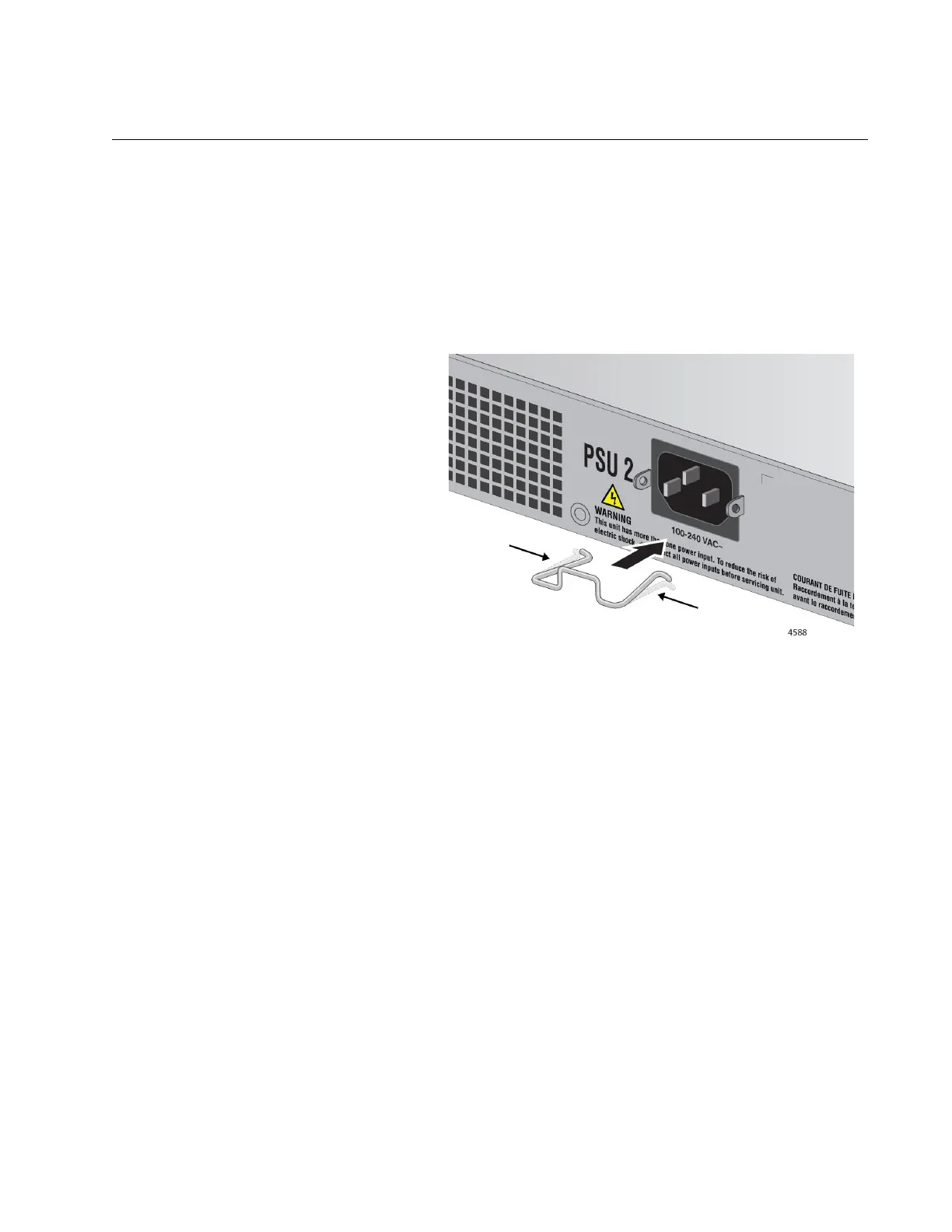

Figure 80. Installing the Retaining Clip
2. Go to either “Powering On the Switches Individually” on page 144 or
“Powering On the Switches Simultaneously” on page 148.
