Chapter 2: Virtual Chassis Stacking
64

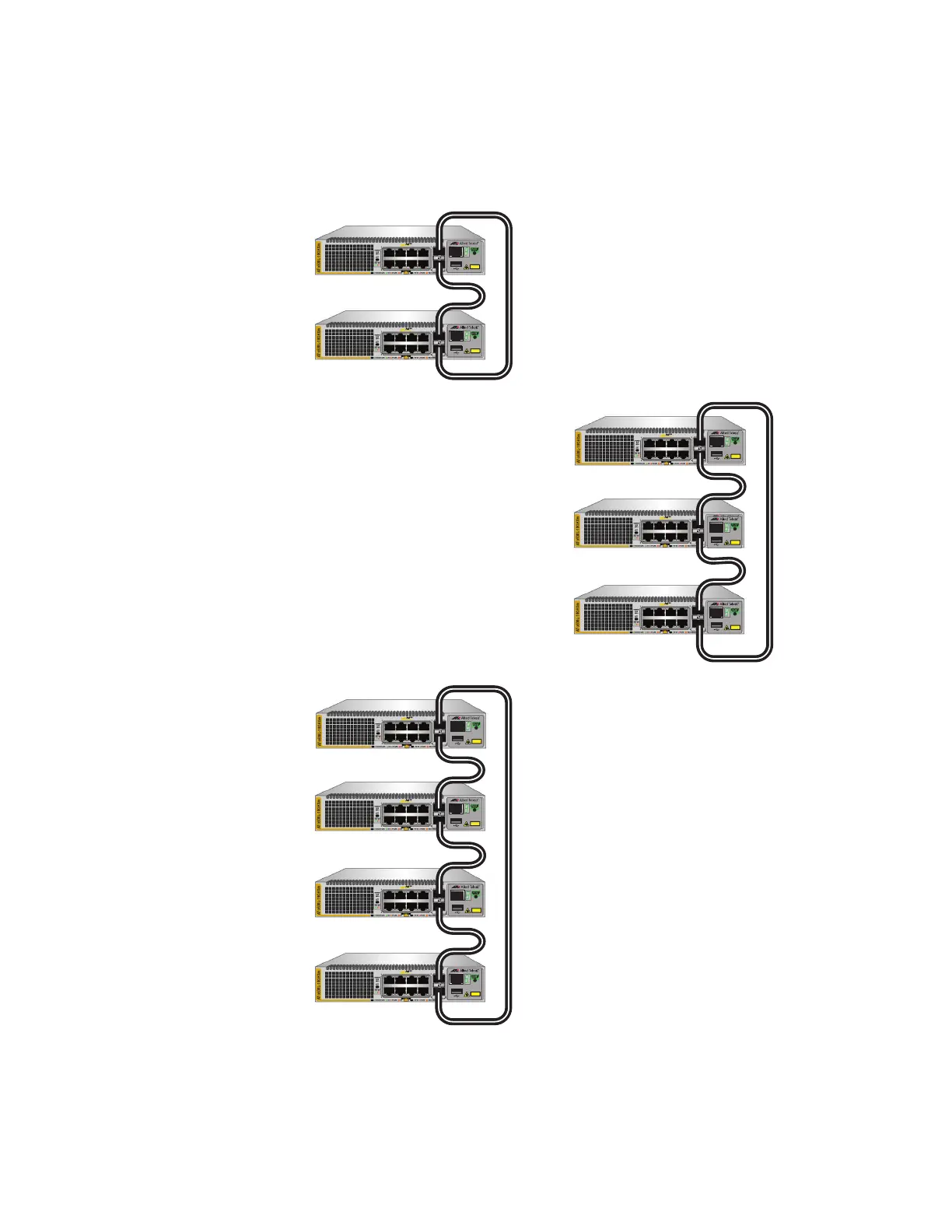

Figure 22 shows examples of stack trunks for two, three, and four
switches, using the default stacking ports 17 and 18 on 18-port x530L-
18GHXm switches.
Figure 22. Valid Stack Trunk Using Default Stacking Ports 17 to 18 on 18-
Port x530L Switches
27/S1
28/S2
CLASS
1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS
1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS
1
LASER PRODUCT
CONSOLE
27/S1
28/S2
CLASS1
LASER PRODUCT
CONSOLE
27/S1
28/S2
27/S1
28/S2
27/S1
28/S2
27/S1
28/S2
27/S1
28/S2
27/S1
28/S2
27/S1
28/S2
27/S1
28/S2
4624
27/S1
28/S2
Stack of Two Switches
Stack of Three Switches
Stack of Four Switches
