Figure 24 shows examples of stack trunks for two, three, and four
switches, using the default stacking ports 51 and 52 on 52-port x530L-
52GPX and x530L-52GTX switches.

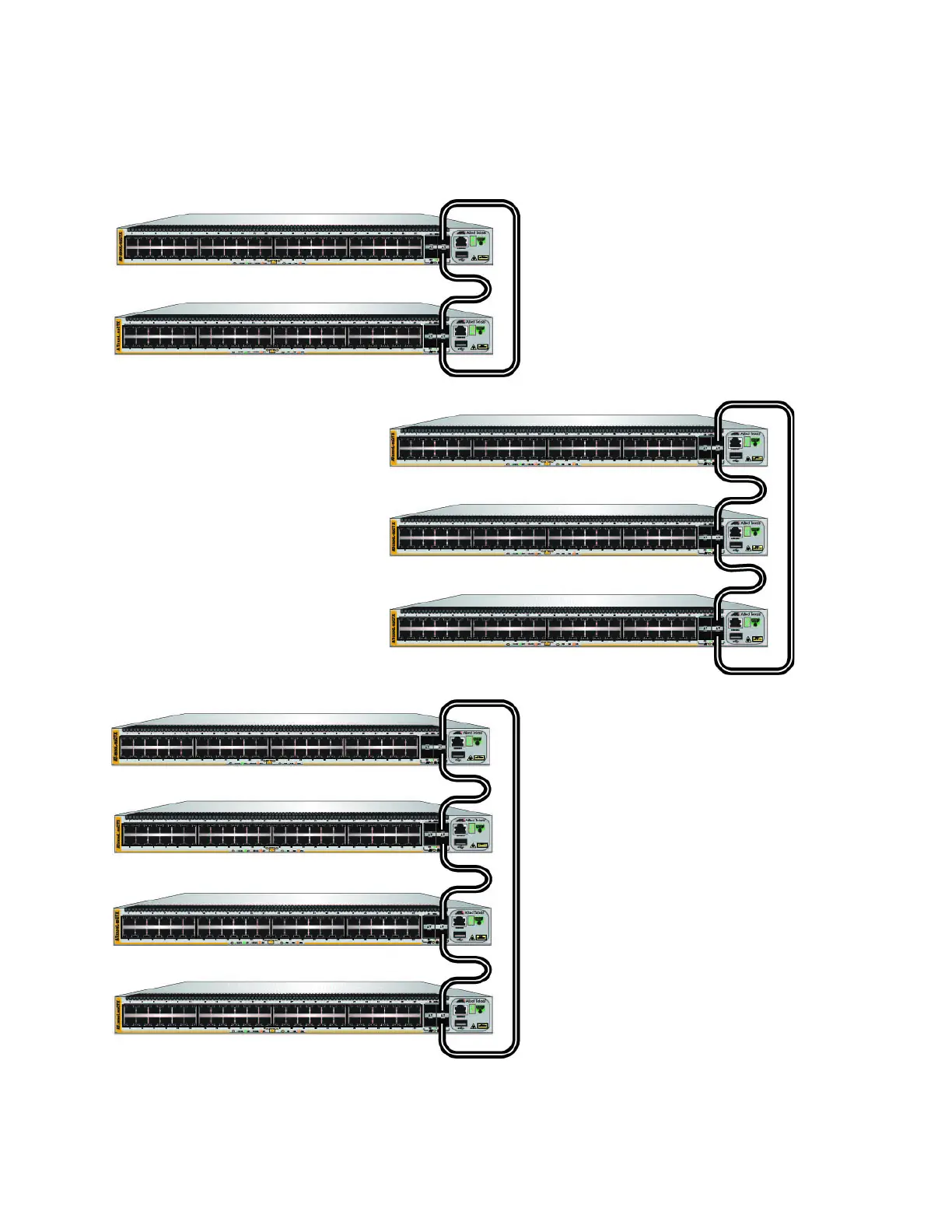

Figure 24. Valid Stack Trunk Using Default Stacking Ports 51 to 52 on 52-
Port x530L Switches
Stack of Two Switches
Stack of Three Switches
Stack of Four Switches
