Appendix A: Technical Specifications
216
Physical Specifications
Dimensions
Table 34 lists the dimensions of the switches. Figure 98 through Figure
101 on page 218 illustrate the dimensions of the switches.

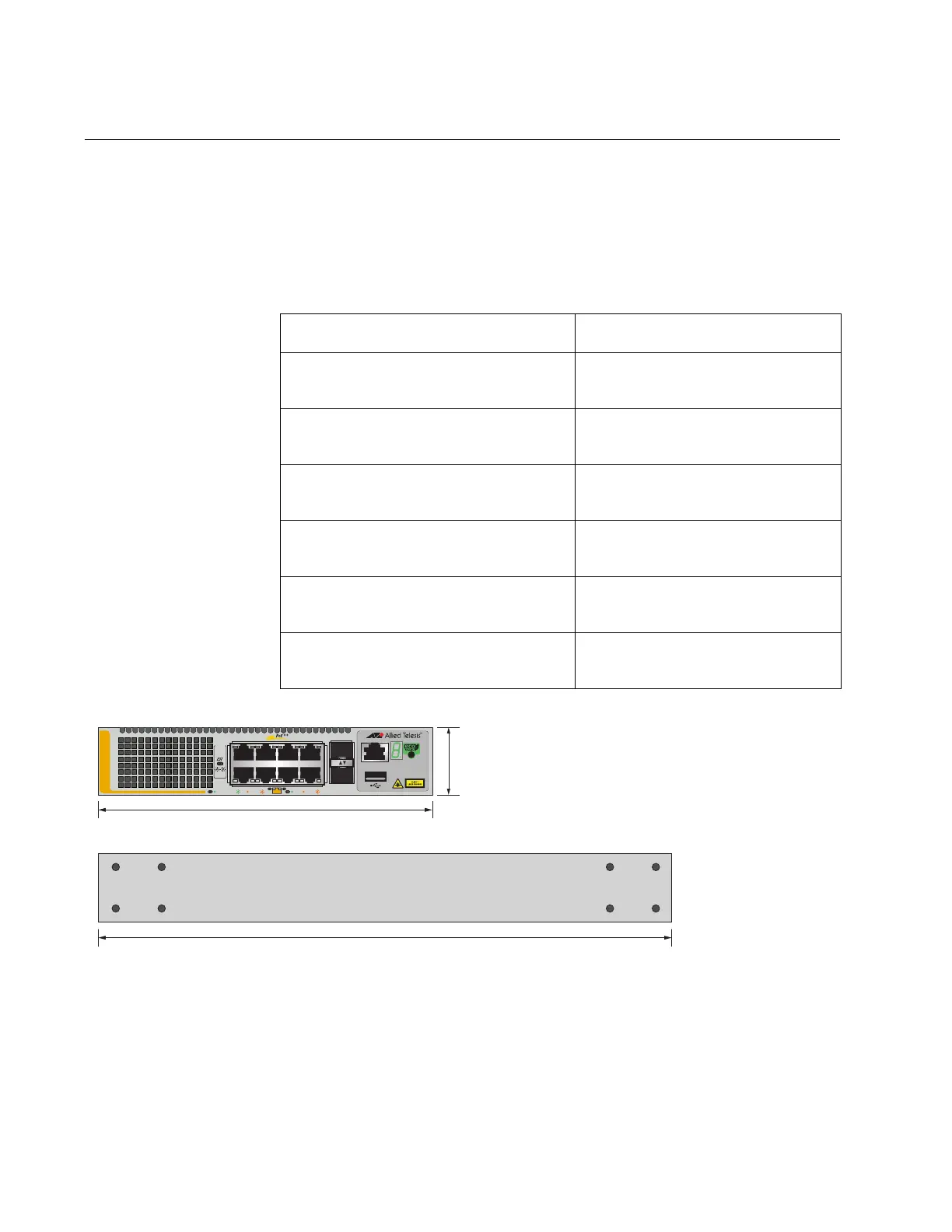

Figure 96. x530L-10GHXm
Table 34. Product Dimensions
Model Dimension (W x H x D)
x530L-10GHXm 21.03 cm x 4.24 cm x 36.14 cm
(8.28 in. x 1.67 in. x 14.23 in.)
x530L-18GHXm 44.05 cm x 4.37 cm x 25.53 cm
(17.34 in. x 1.72 in. x 10.5 in.)
x530L-28GTX 44.05 cm x 4.37 cm x 32.26 cm
(17.344 in. x 1.72 in. x 12.7 in.)
x530L-28GPX 44.05 cm x 4.37 cm x 42.06cm
(17.344 in. x 1.72 in. x 16.56 in.)
x530L-52GTX 44.05 cm x 4.37 cm x 32.26 cm
(17.344 in. x 1.72 in. x 12.7 in.)
x530L-52GPX 44.05 cm x 4.37 cm x 42.06 cm
(17.344 in. x 1.72 in. x 16.56 in.)
21.03 cm (8.28 in)
36.14 cm (14.23 in)
4.24 cm
(1.67 in)
AT-x530L-10GHXm
10/S2
CONSOLE
9/S1 SFP+
5G/2.5G/1G LINK ACT 100 LINK ACT PD ON PD ERR MAX CURRENT
17
28
PORTS
9-10
SFP+
10G/1G
