Chapter 9: Cabling the Networking Ports
206
Installing SFP or SFP+ Transceivers in the Switches
This section contains installation instructions for SFP or SFP+
transceivers in:
x530L-10GHXm ports 9 and 10
x530L-18GHXm ports 17 and 18
x530L-28GTX and x530L-28GPX ports 25 to 28
x530L-52GTX and x530L-52GPX ports 49 to 52
The following illustrations show a transceiver with a duplex LC connector.
The connectors on your transceivers may be different.
To install transceivers, perform the following procedure:
1. Select a port for the transceiver.
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. If you are installing the transceiver in a top port, position the
transceiver with the Allied Telesis label facing up. If you are installing
the transceiver in a bottom port, position the transceiver with the label
facing down. Refer to Figure 92.

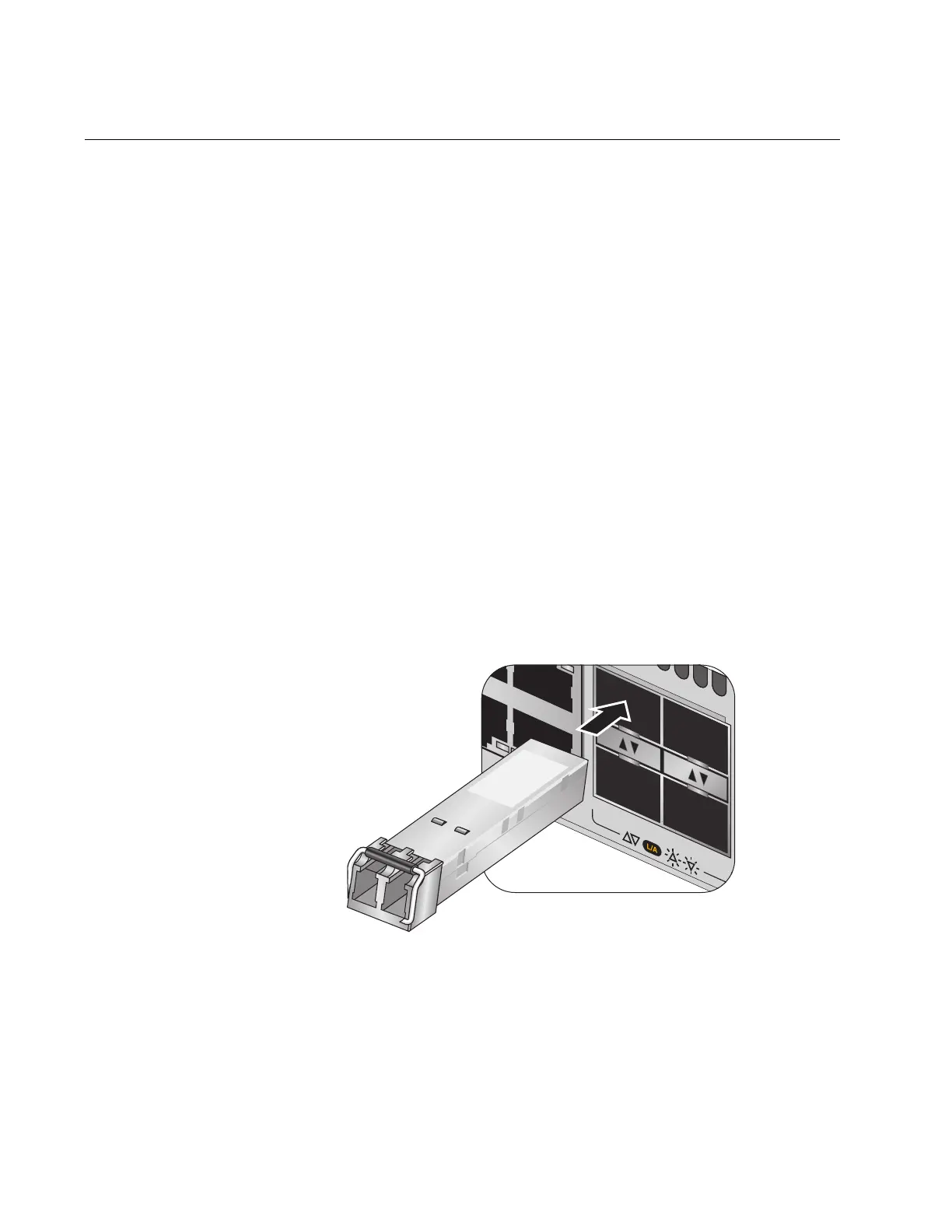

Figure 92. Installing an SFP Transceiver
4. Slide the transceiver into the port until it clicks into place.
27/S1
25 SFP+
26
10G/1G
2
5G/2.5G/1G/100
