Chapter 1: Overview
46
SFP+ Transceiver Ports
1Gbps/10 Gbps
SFP or SFP+
Transceivers
The following ports support 1Gbps/10 Gbps SFP or SFP+ transceivers:
 x530L-10GHXm switch has two ports (ports 9 - 10)
 x530L-18GHXm switch has two ports (ports 17 - 18)
 x530L-28GPX and x530L-28GTX switches have four ports
(ports 25 - 28)
 x530L-52GTX and x530L-52GPX switches have four ports
(ports 49 - 52)
See “SFP+ Transceiver Ports” on page 25 for a description and guidelines
of the SFP+ transceivers.
Note
SFP or SFP+ transceivers must be purchased separately. For a list
of supported transceivers, refer to the product data sheet on the
Allied Telesis web site.
LEDs Each transceiver port has one LED. The LEDs are located between the
ports. Refer to Figure 18.

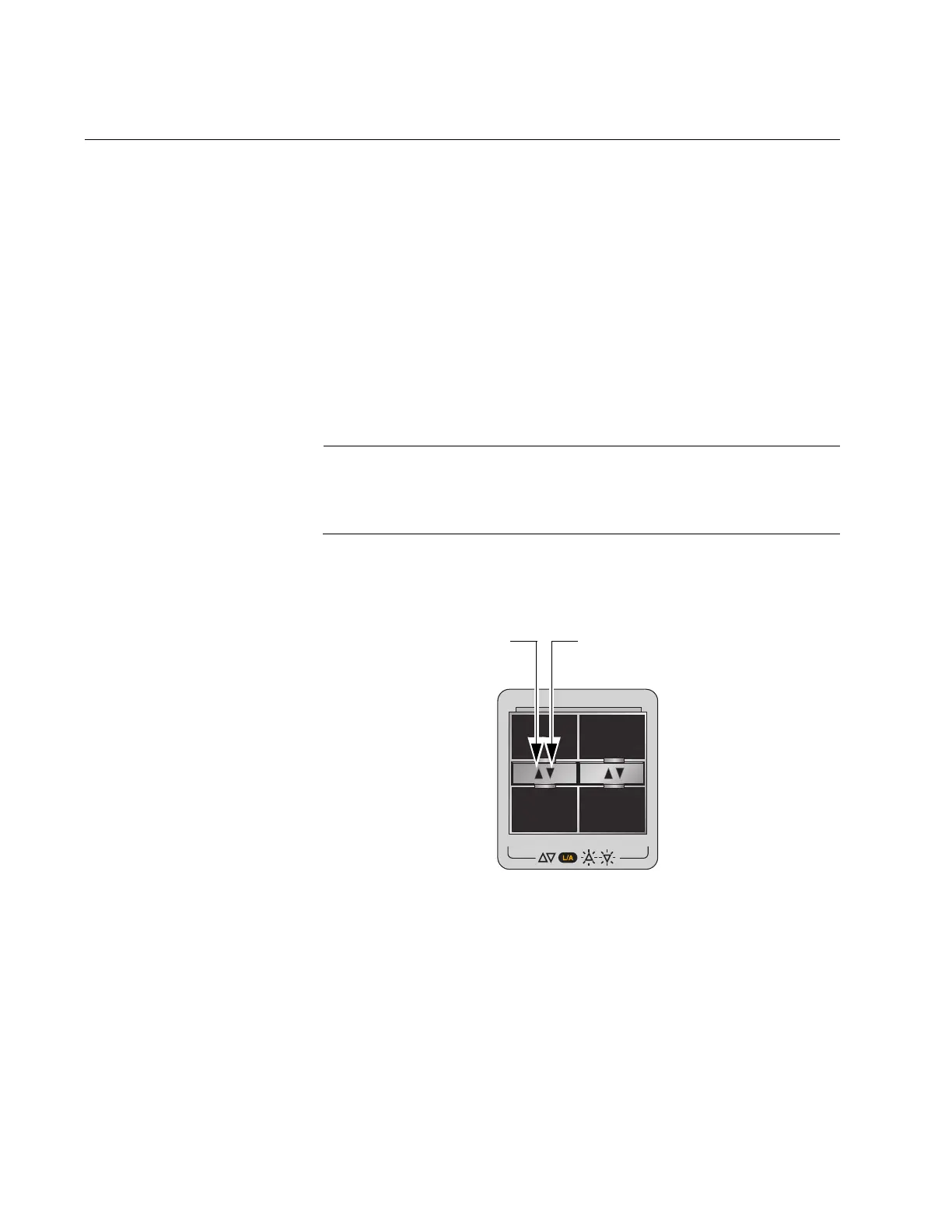

Figure 18. Link and Activity LEDs for the 1Gbps SFP/10Gbps SFP+ Ports
27/S1
28/S2
25 SFP+
26
10G/1G
4566
Top Transceiver Port LED Bottom Transceiver Port LED
