Chapter 4: Installing the Switch on a Table
104
Installing the Bumper Feet
The switch comes with four bumper feet in the accessory kit. The feet,
which are reusable, are used when installing the switch on a table. If they
are already assembled, disassemble them by removing the rivets and rivet
housings from the bumper feet. Refer to Figure 41.

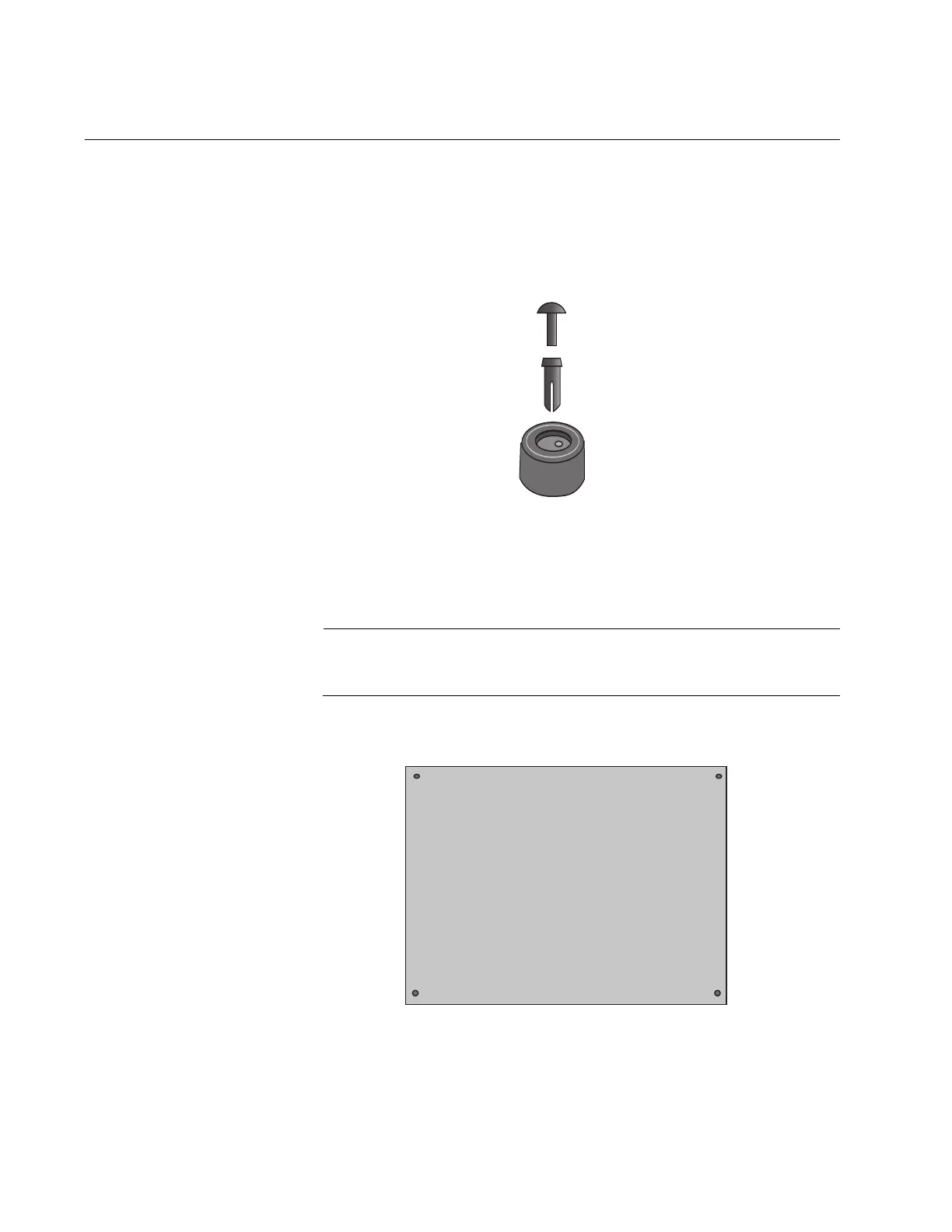

Figure 41. Parts of the Bumper Feet
The holes in the base of the switch for the bumper feet are shown in
Figure 42.
Note
Although you cannot stack the switches on top of each other, they
can be placed next to each other.
Figure 42. Holes for Bumper Feet
Rivet
Rivet Housing
Bumper Foot
Rear of Chassis
Front of Chassis
