Chapter 1: Overview
38
x530L-52GTX
The LEDs indicate Link/Activity (L/A) and Duplex/Collision (FDX/HDX/
COL) information. These LEDs are shown in Figure 15.

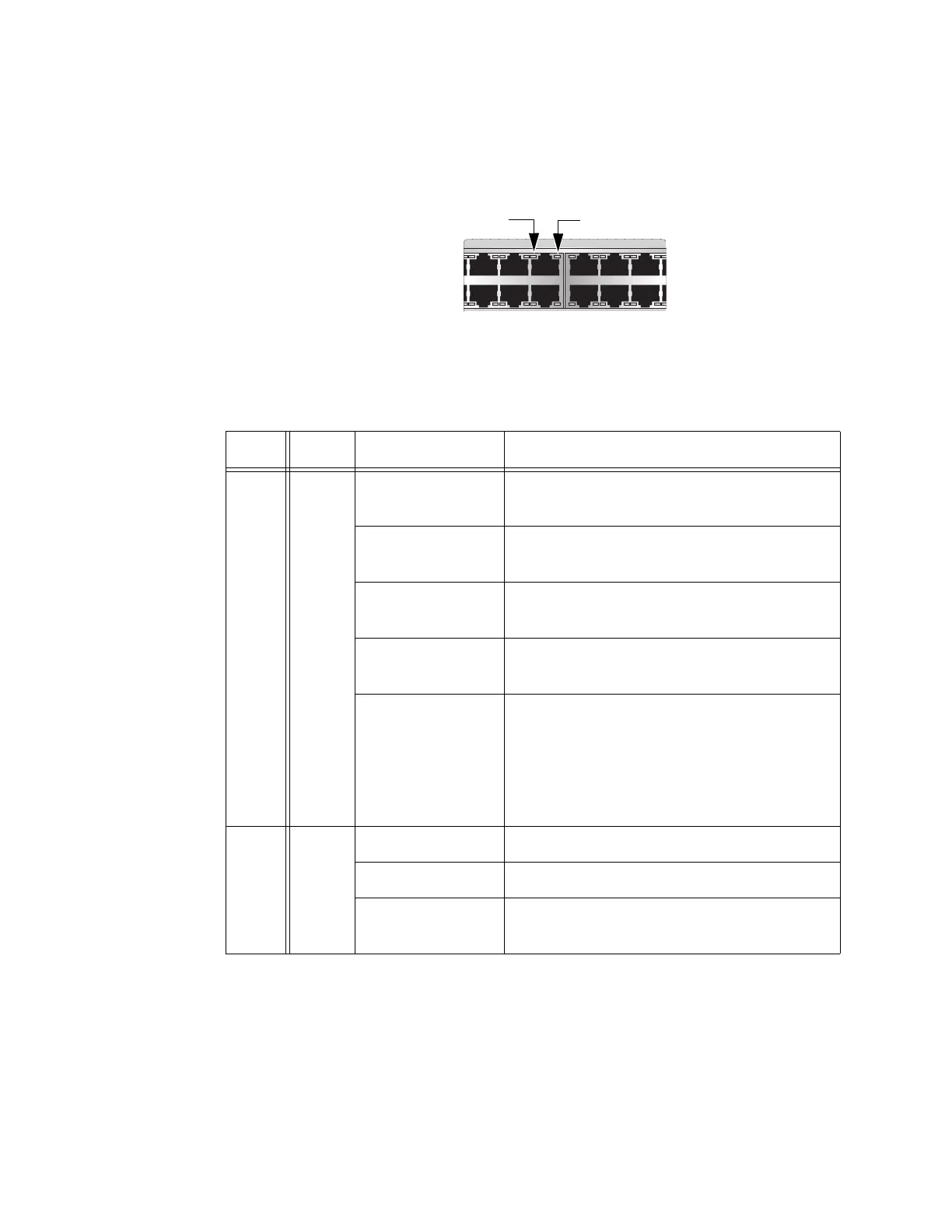

Figure 15. x530L-52GTX Twisted Pair Port LEDs
The states of the x530L-52GTX LEDs are described in Table 11.
7 9 11 13 15 17
16 1814
81012
L/A LED D/C LED
Table 11. x530L-52GTX Twisted Pair Ports 1 - 48 LED Functions
LED Ports State Description
L/A 1 - 48
Solid Green The port has established a 1Gbps link to a
network device.
Flashing Green The port is transmitting or receiving data at
1Gbps.
Solid Amber The port has established a 10Mbps or
100 Mbps link to a network device.
Flashing Amber The port is transmitting or receiving data at
10Mbps or 100Mbps.
Off Possible causes of this state are:
- The port has not established a link with
another network device.
- The LEDs are turned off. To turn on the
LEDs, use the eco-friendly button.
D/C 1 - 48
Solid Green The port is operating in full-duplex mode.
Solid Amber The port is operating in half-duplex mode.
Flashing Amber The port is operating in half-duplex mode
with collisions.
