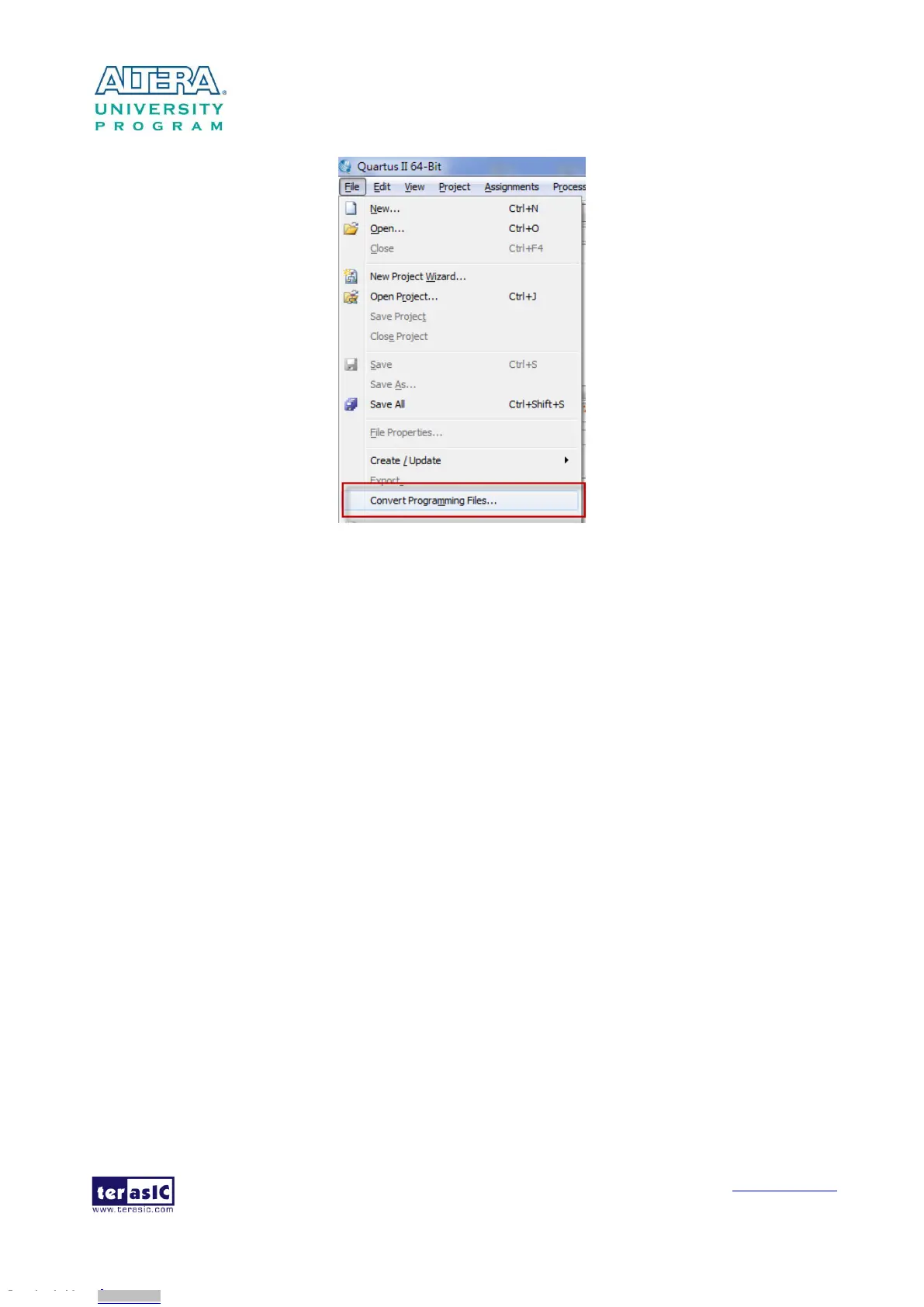

Figure 8-1 File menu of Quartus II
2. Select JTAG Indirect Configuration File (.jic) from the Programming file type field in
the dialog of Convert Programming Files.
3. Choose EPCQ256 from the Configuration device field.
4. Choose Active Serial x4 from the Model filed.
5. Browse to the target directory from the File name field and specify the name of output file.
6. Click on the SOF data in the section of Input files to convert, as shown in Figure 8-2.
