Altera DE1-SoC - DE1-SoC Gigabit Ethernet Interface

DE1-SoC User Manual
44
www.terasic.com
March 14, 2014
Table 3-23 Pin Assignment of LEDs, Switches and Push-buttons
Signal Name
HPS GPIO
Register/bit
Function
HPS_KEY
GPIO54
GPIO1[25]
I/O
HPS_LED
GPIO53
GPIO1[24]
I/O
3
3
.
.
7
7
.
.
2
2
G
G
i
i
g
g
a
a
b
b
i
i
t
t
E
E
t
t
h
h
e
e
r
r
n
n
e
e
t
t
The board supports Gigabit Ethernet transfer by an external Micrel KSZ9021RN PHY chip and
HPS Ethernet MAC function. The KSZ9021RN chip with integrated 10/100/1000 Mbps Gigabit
Ethernet transceiver also supports RGMII MAC interface. Figure 3-31 shows the connections
between the HPS, Gigabit Ethernet PHY, and RJ-45 connector.
The pin assignment associated to Gigabit Ethernet interface is listed in Table 3-24. More
information about the KSZ9021RN PHY chip and its datasheet, as well as the application notes,
which are available on the manufacturer’s website.

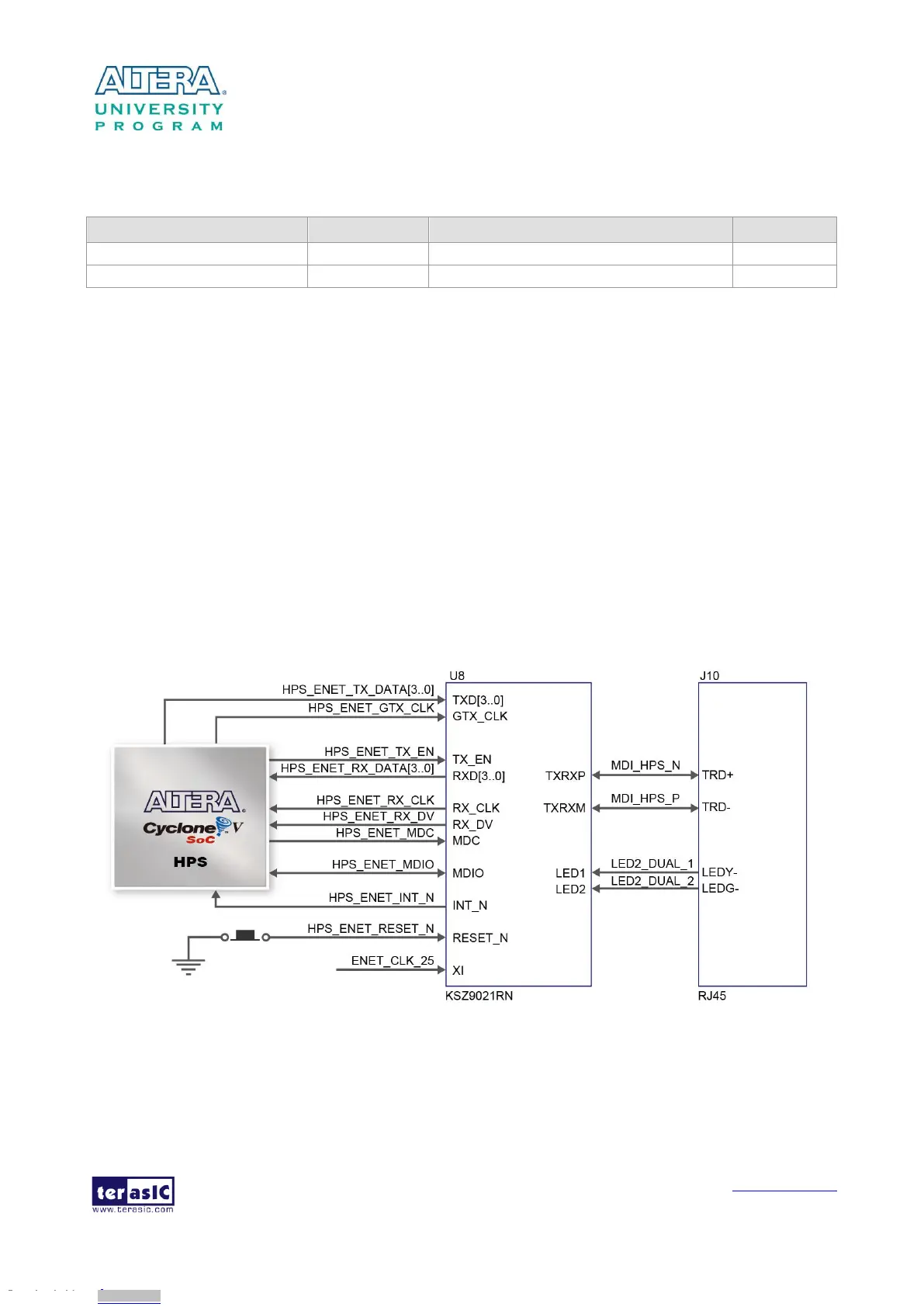

Figure 3-31 Connections between the HPS and Gigabit Ethernet
