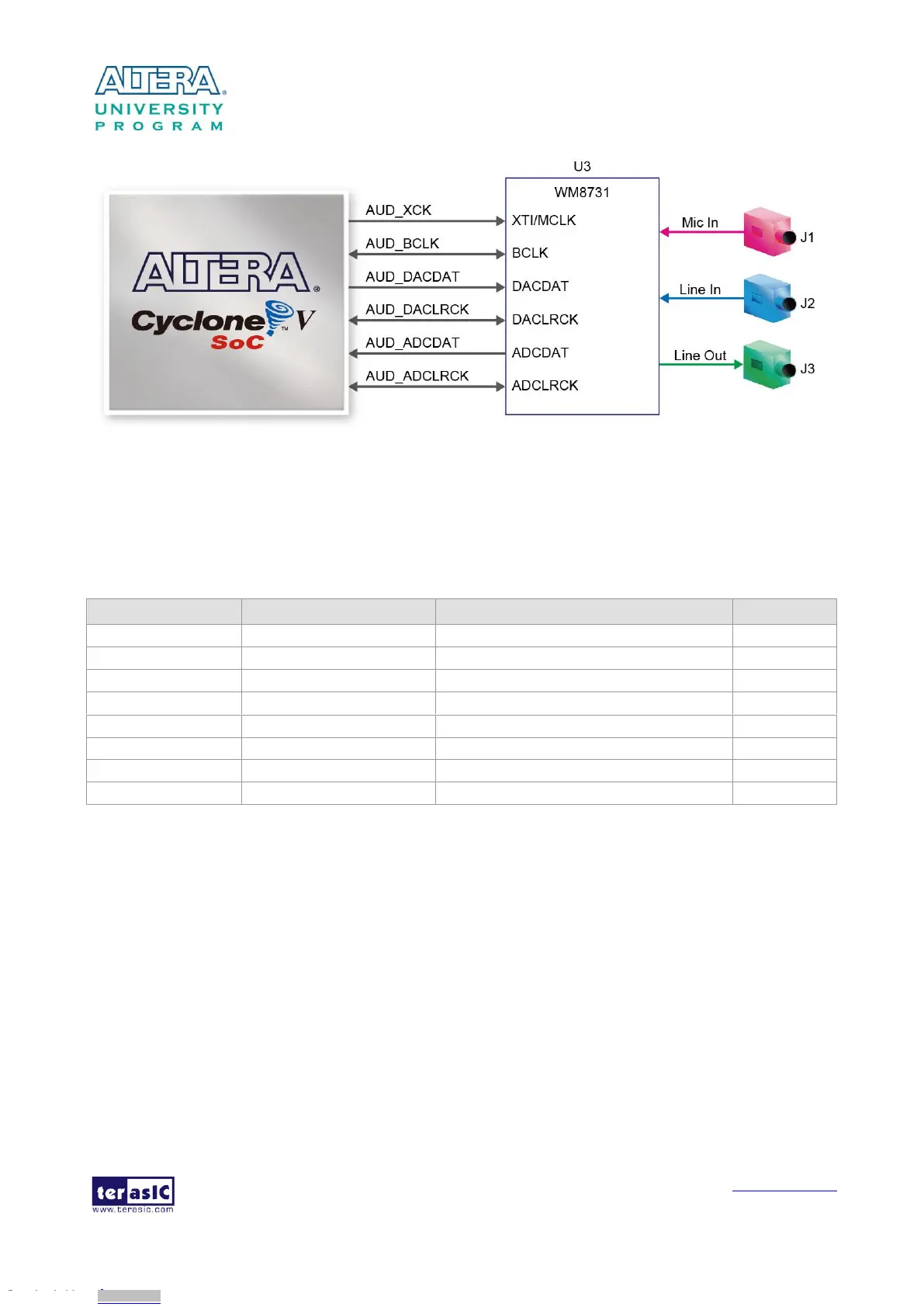

Figure 3-19 Connections between the FPGA and audio CODEC
Table 3-12 Pin Assignment of Audio CODEC
Signal Name
FPGA Pin No.
Description
I/O Standard
AUD_ADCLRCK
PIN_K8
Audio CODEC ADC LR Clock
3.3V
AUD_ADCDAT
PIN_K7
Audio CODEC ADC Data
3.3V
AUD_DACLRCK
PIN_H8
Audio CODEC DAC LR Clock
3.3V
AUD_DACDAT
PIN_J7
Audio CODEC DAC Data
3.3V
AUD_XCK
PIN_G7
Audio CODEC Chip Clock
3.3V
AUD_BCLK
PIN_H7
Audio CODEC Bit-stream Clock
3.3V
I2C_SCLK
PIN_J12 or PIN_E23
I2C Clock
3.3V
I2C_SDAT
PIN_K12 or PIN_C24
I2C Data
3.3V
3.6.5 I2C Multiplexer
The DE1-SoC board implements an I2C multiplexer for HPS to access the I2C bus originally
owned by FPGA. Figure 3-20 shows the connection of I2C multiplexer to the FPGA and HPS. HPS
can access Audio CODEC and TV Decoder if and only if the HPS_I2C_CONTROL signal is set to
high. The pin assignment of I2C bus is listed in Table 3-13 .
