Altera DE1-SoC - Erasing the EPCQ Device Contents

DE1-SoC User Manual
110
www.terasic.com
March 14, 2014

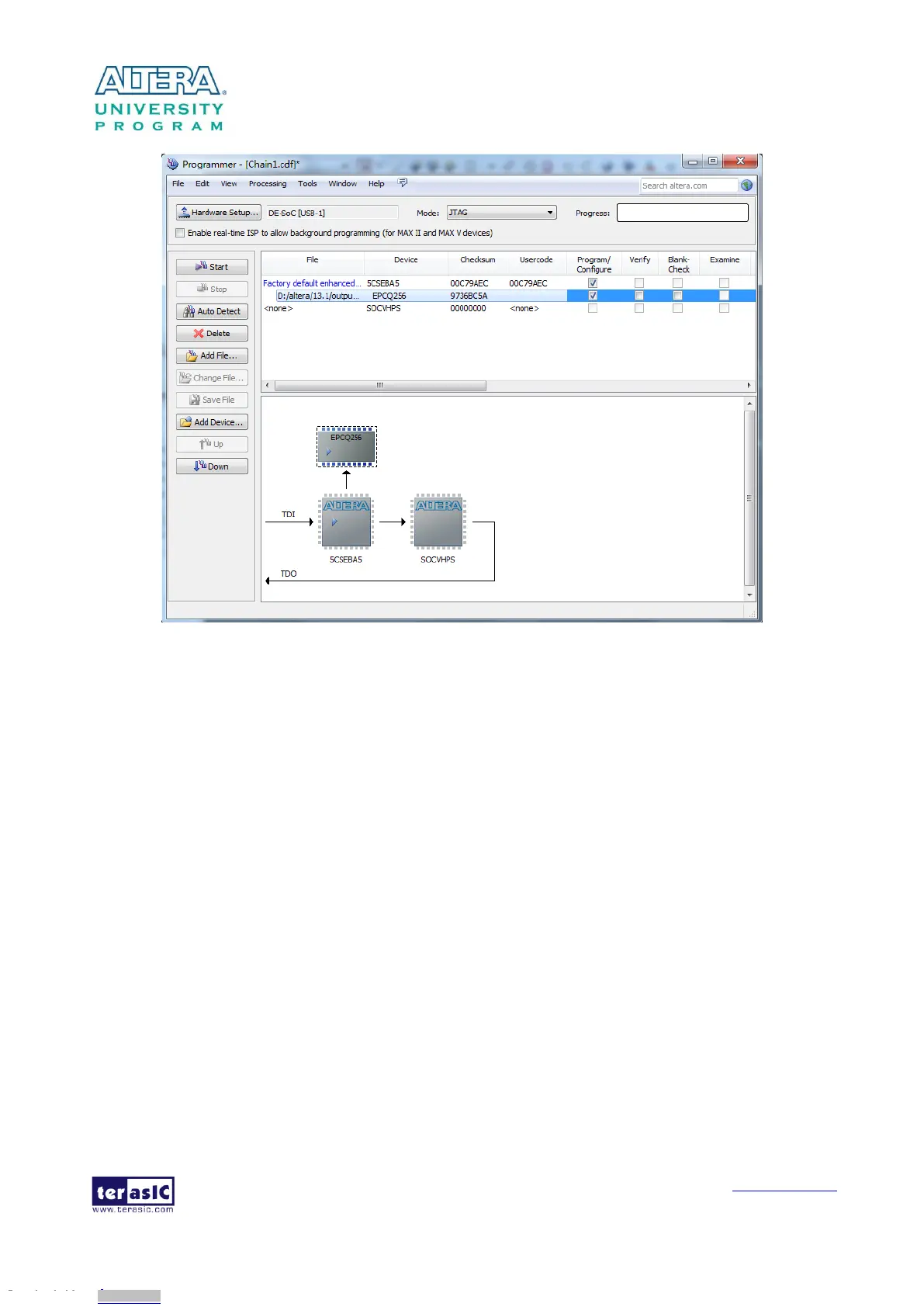

Figure 8-7 Quartus II programmer window with one .jic file
8
8
.
.
4
4
E
E
r
r
a
a
s
s
e
e
t
t
h
h
e
e
E
E
P
P
C
C
Q
Q
D
D
e
e
v
v
i
i
c
c
e
e
The steps to erase the existing file in the EPCQ device are:
1. Set MSEL[4..0] = “10010”
2. Choose Programmer from the Tools menu and the Chain.cdf window will appear.
3. Click Auto Detect, and then select correct device, both FPGA device and HPS will detected.
(See Figure 8-6)
4. Double click the green rectangle region shown in Figure 8-6, and the Select New
Programming File page will appear. Select the correct .jic file.
5. Erase the EPCQ device by clicking the corresponding Erase box. A factory default SFL
image will be loaded, as shown in Figure 8-8.
