The DE1-SoC Control Panel is a more comprehensive example. It demonstrates:
 Control HPS LED and FPGA LED/HEX
 Query the status of buttons connected to HPS and FPGA
 Configure and query G-sensor connected to HPS
 Control Video-in and VGA-out connected to FPGA
 Control IR receiver connected to FPGA
This example not only controls the peripherals of HPS and FPGA, but also shows how to
implement a GUI program on Linux. Figure 7-4 is the screenshot of DE1-SOC Control Panel.

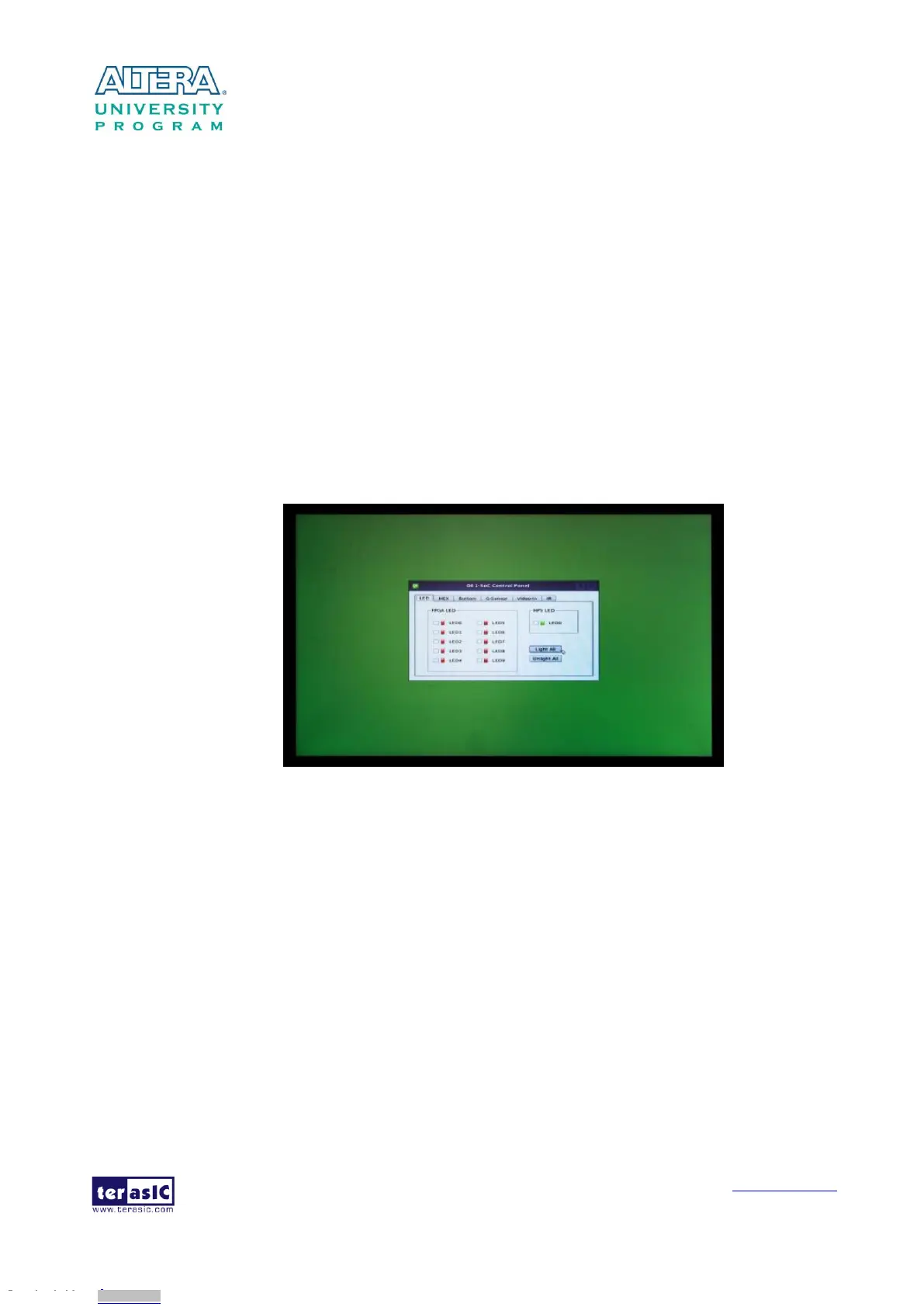

Figure 7-4 Screenshot of DE1-SoC Control Panel
Please refer to DE1-SoC_Control_Panel.pdf, which is included in the DE1-SOC System CD for
more information on how to build a GUI program step by step.
