Altera DE1-SoC - Programming the EPCQ Device with JIC File

DE1-SoC User Manual
109
www.terasic.com
March 14, 2014
8
8
.
.
3
3
W
W
r
r
i
i
t
t
e
e
J
J
I
I
C
C
F
F
i
i
l
l
e
e
i
i
n
n
t
t
o
o
t
t
h
h
e
e
E
E
P
P
C
C
Q
Q
D
D
e
e
v
v
i
i
c
c
e
e
When the conversion of SOF-to-JIC file is complete, please follow the steps below to program the
EPCQ device with the .jic file created in Quartus II Programmer.
1. Set MSEL[4..0] = “10010”
2. Choose Programmer from the Tools menu and the Chain.cdf window will appear.
3. Click Auto Detect and then select the correct device. Both FPGA device and HPS should be
detected, as shown in Figure 8-6.
4. Double click the green rectangle region shown in Figure 8-6 and the Select New
Programming File page will appear. Select the .jic file to be programmed.
5. Program the EPCQ device by clicking the corresponding Program/Configure box. A
factory default SFL image will be loaded, as shown in Figure 8-7.
6. Click Start to program the EPCQ device.

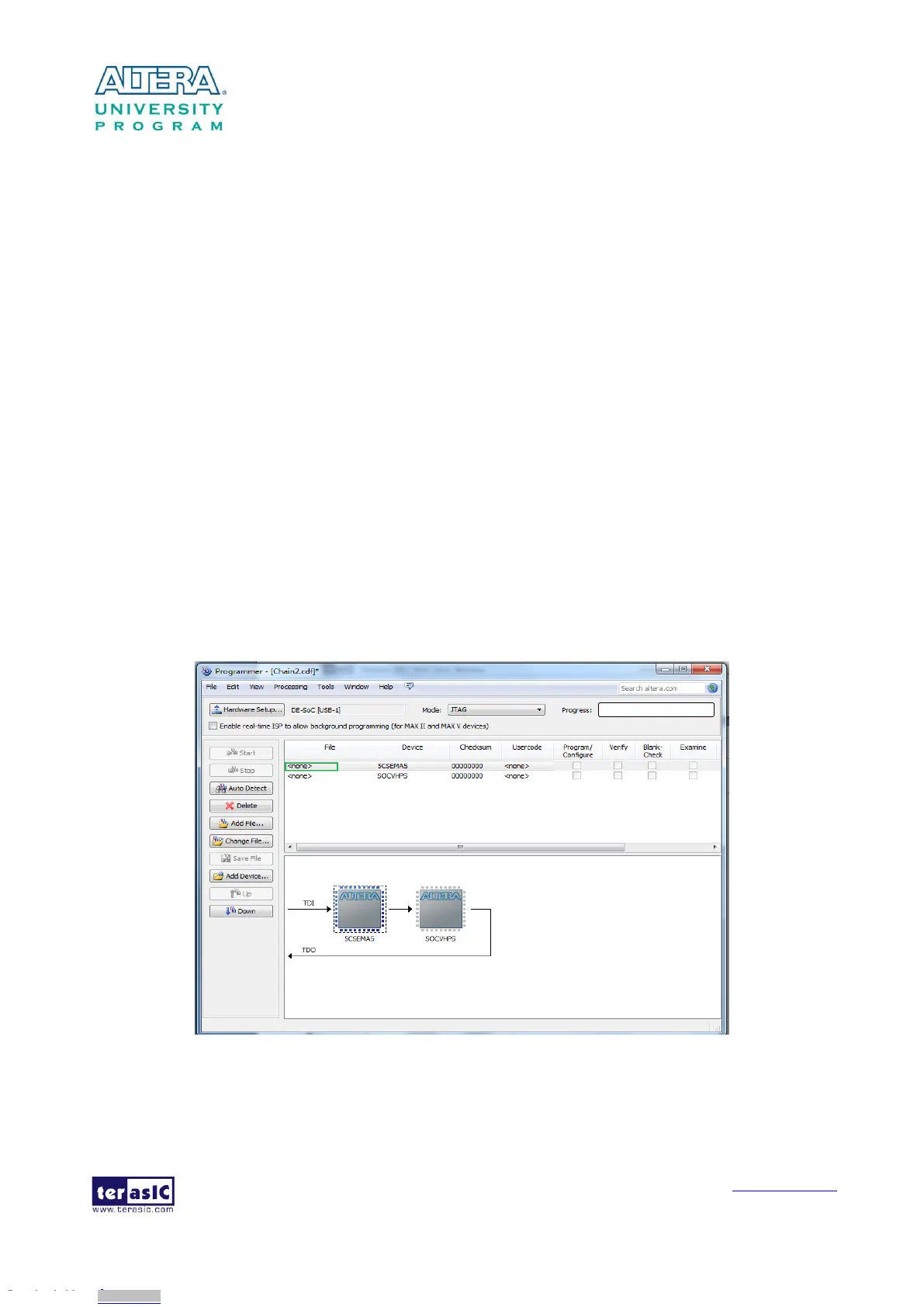

Figure 8-6 Two devices are detected in the Quartus II Programmer
