"Running Linux on the DE1-SoC board" on DE1-SoC_Getting_Started_Guide.pdf on
how to build a booting microSD card image.
 Power on the DE1-SoC board.
 Launch PuTTY to establish connection to the UART port of the DE1-SoC board. Type
"root" to login Altera Yocto Linux.
 Execute "./hps_config_fpga soc_system_dc.rbf " in the UART terminal of PuTTY to
configure the FPGA through the FPGA manager. After the configuration is successful,
the message shown in Figure 7-2 will be displayed in the terminal.

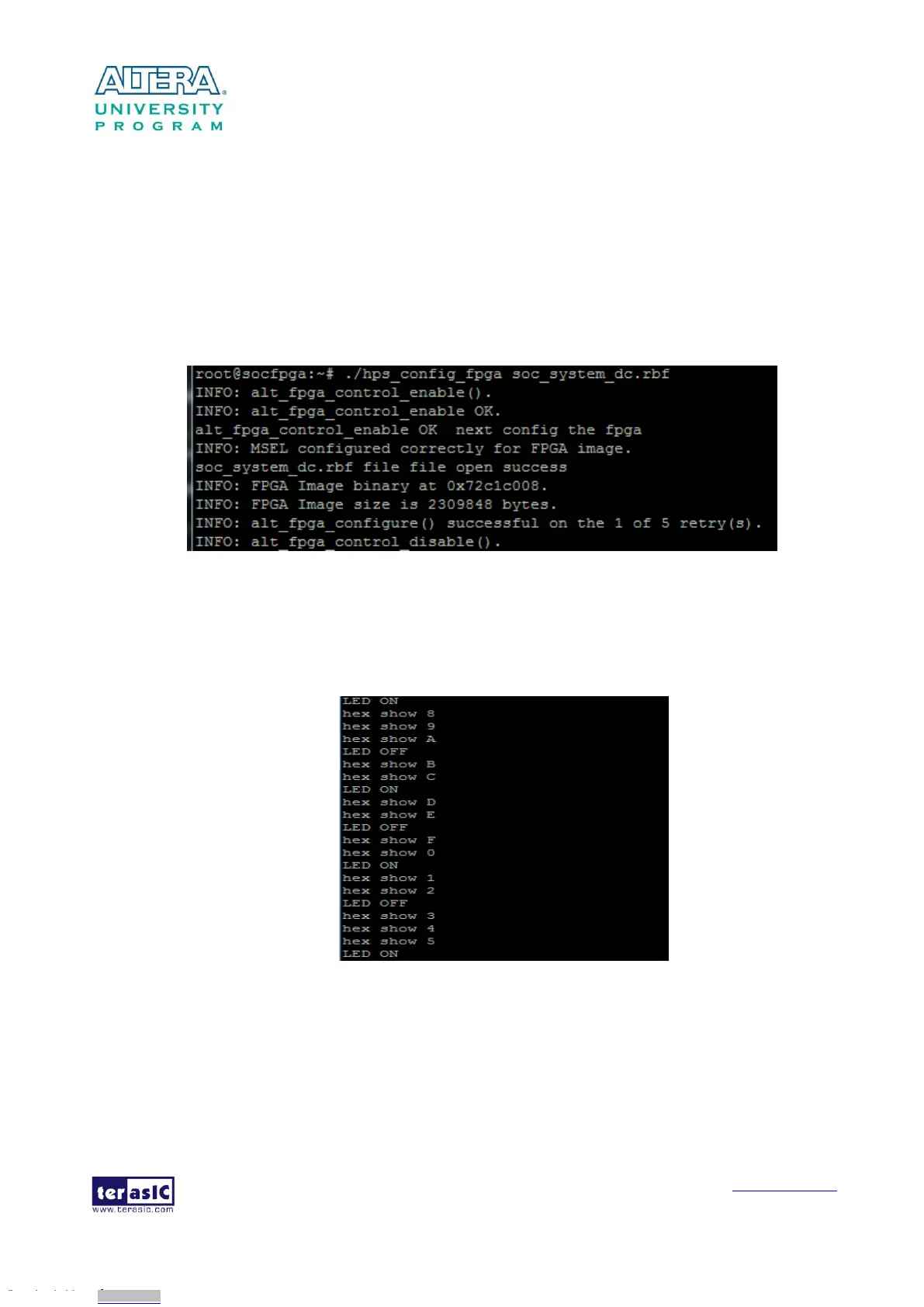

Figure 7-2 Running the application to configure the FPGA
 Execute "./HPS_LED_HEX " in the UART terminal of PuTTY to start the program.
 The message shown in Figure 7-3, will be displayed in the terminal. The LED[9:0]
will be flashing and the number on the HEX[5:0] will keep changing simultaneously.
Figure 7-3 Running result in the terminal of PuTTY
 Press "CTRL + C" to terminate the program.
