Altera DE1-SoC - DE1-SoC Board Architecture Overview

DE1-SoC User Manual
7
www.terasic.com
March 14, 2014

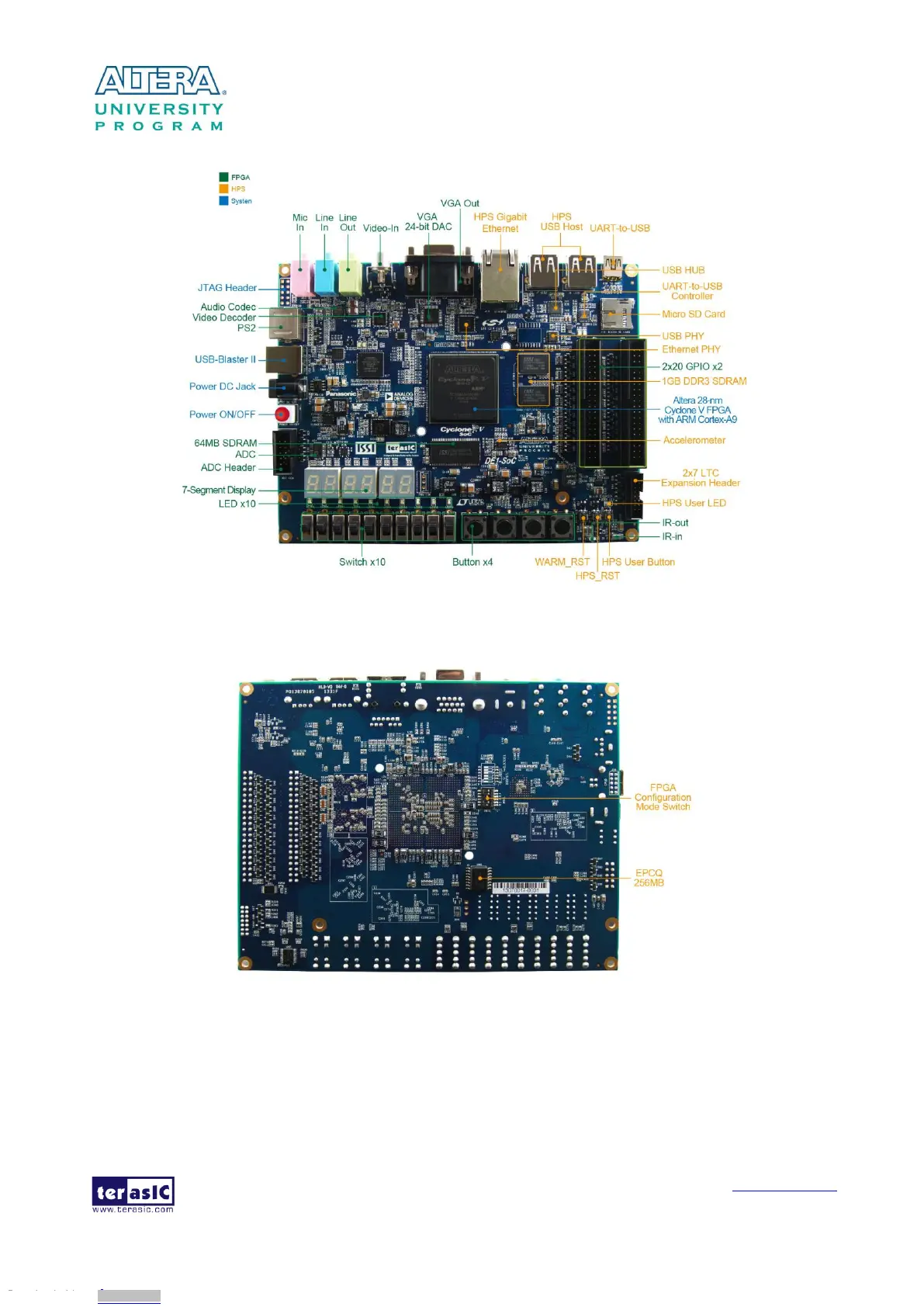

Figure 2-1 DE1-SoC development board (top view)
Figure 2-2 De1-SoC development board (bottom view)
The DE1-SoC board has many features that allow users to implement a wide range of designed
circuits, from simple circuits to various multimedia projects.
