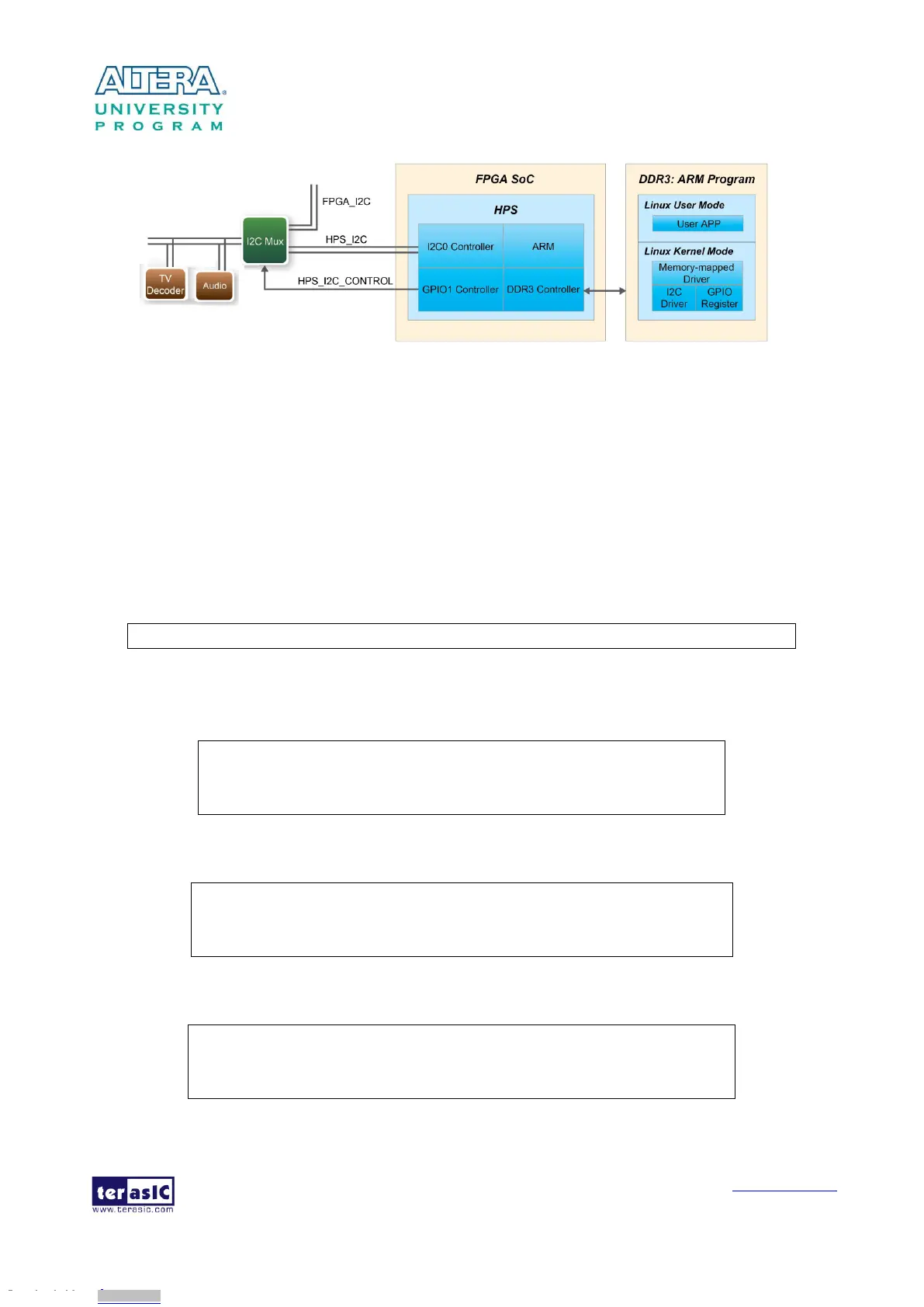

Figure 6-9 Block diagram of the I2C MUX test demonstration
 HPS_I2C_CONTROL Control
HPS_I2C_CONTROL is connected to HPS_GPIO48, which is bit-19 of the GPIO1 controller.
Once HPS gets access to the I2C bus, it can then access Audio CODEC and TV Decoder when the
HPS_I2C_CONTROL signal is set to high.
The following mask in the demo code is defined to control the direction and output value of
HPS_I2C_CONTROL.
#define HPS_I2C_CONTROL ( 0x00080000 )
The following statement is used to configure the HPS_I2C_CONTROL associated pins as output
pin.
alt_setbits_word( ( virtual_base +
( ( uint32_t )( ALT_GPIO1_SWPORTA_DDR_ADDR ) &
( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );
The following statement is used to set HPS_I2C_CONTROL high.
alt_setbits_word( ( virtual_base +
( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) &
( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );
The following statement is used to set HPS_I2C_CONTROL low.
alt_clrbits_word( ( virtual_base +
( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) &
( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );
