11 RS2310002 Rev. 1
Installation Instructions for Slide-In Ranges
Packing Material
Remove protective packing materials from range. Tape
residue can be cleaned with a soft cloth and alcohol.
Range Location
WARNING
To avoid risk of burns or fire by reaching over heated
surface units, cabinet storage space located above
range should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range
hood that projects horizontally a minimum of 5 inches
beyond the bottom of the cabinets.
Choose a location based on following factors.
• Drafts caused by home heating and air conditioning
and open doors or windows can disrupt ventilation air
pattern. Range should not be installed near windows or
doors.
• Make sure there is adequate space for proper
installation.
• Carefully read all instructions before beginning
installation.
• Any openings in wall behind range and in floor below
range must be sealed.
• Installation of appliances designed for manufactured
(mobile) home installation must conform with
Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280 [Formerly the Federal Standard
for Mobile Home Construction and Safety, Title 24,
HUD (Part 280)] or, when such standard is not
applicable, Standard for Manufactured Home
Installations, ANSI A225.1 and Manufactured Home
Installations, Sites, and Communities ANSI/NFPA
501A, or with local codes.

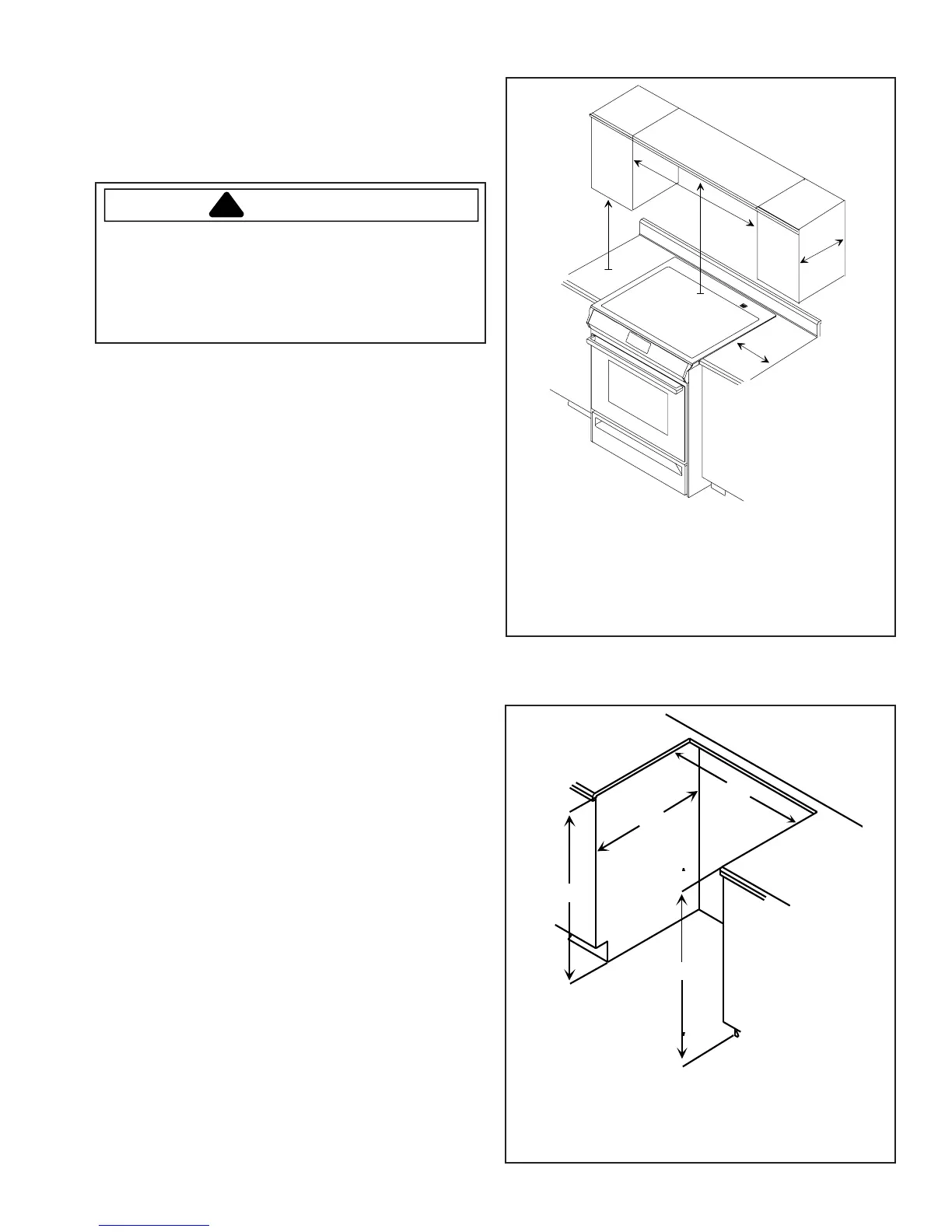

Minimum Clearances to Combustible
Surfaces
• Minimum clearance to a vertical right or left side wall
extending above cooking surface is 3 inches.
• Minimum clearance to counter top/cabinet on each
side is 0 inches.
• Minimum of 30 inches between top of cooking surface
and bottom of an unprotected wood or metal cabinet.
• 24 inches between cooking surface and protected wood
or metal cabinet above range. Cabinet bottom must be
protected by at least ¼ inch thick millboard with not
less than No. 28 MSG sheet steel, .015 inch thick
stainless steel, .024 inch thick aluminum, or .020 inch
thick copper. See illustration for typical installation.
• Minimum clearance to rear wall is 0 inches.
A
B
C
D
E
A—30 inches minimum
B—30 inches unprotected minimum
24 inches protected minimum
C—13 inches maximum
D—3 inches minimum (Each side of range)
E—18 inches minimum
Standard Cabinet and Counter Top Height
and Depth
A
C
B
D
A—30
1
/8 to 30¼ inches
B—36 inches
C—35 inches
D—23 inches
To Next Page
