45 RS2310002 Rev. 1
Disassembly Procedures
WARNING
To avoid risk of electrical shock, personal injury, or
death: disconnect electrical and gas supply before
servicing.
13.Move rear of side panel away from range then move
side panel forward to clear flange.
14.Reverse procedure to reinstall side panel.
Storage Drawer and Storage Drawer Panel
Removal
1. Pull drawer straight out to first stop. Lift front and pull
out to second stop.
2. Let front of door rest on floor. Place hands toward
back of drawer and lift it out.
3. To replace:
a. Place the set of rollers on the drawer behind the
set of rollers on the oven. (As shown below.)
b. Align the guides and push the drawer back into
position.
Storage Drawer Track Removal
1. Remove the storage drawer by pulling it out to the
fully open or stop position, lifting the drawer at the
rear to disengage the drawer track rollers from the
drawer runners, and sliding the drawer out of the
range.
2. The tracks are mounted to a rear support and the
frame of the range. Remove the two track mounting
screws and remove the track. If the track support is
being replaced, remove the mounting screw securing
it to the side frame and remove the support.
Oven Door Hinge
1. Turn off electrical power to range.
2. Remove oven door assembly from the range,
remove screws securing oven door to hinges if so
equipped.

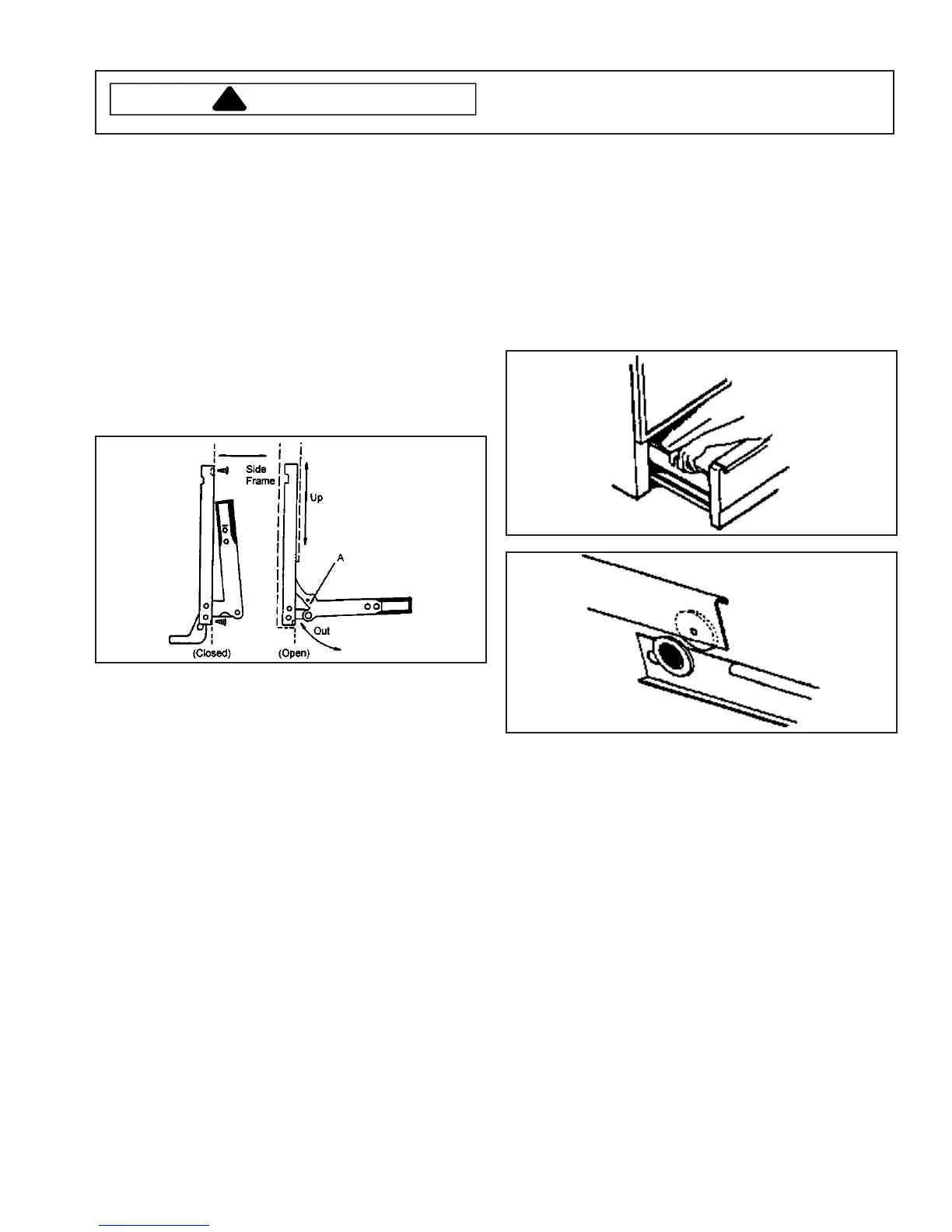

3. Carefully open the hinge fully, and insert a wooden
dowel or screwdriver bit into opening marked A on
the following diagram.
4. Remove the top and bottom screws securing hinge
assembly to the front frame.
5. Slide the hinge assembly up and move top of hinge
towards rear of the range. Withdraw hinge assembly
through the frame opening.
6. Reverse procedure to reinstall oven door hinge
assembly.
Side Panel Removal
NOTE: Replace left or right side panel one at a time. Do
not attempt to remove both side panels as lack
of support may cause subsequent damage/twist
to backguard.
1. Turn off power to unit.
2. Disconnect electrical power and gas line from range.
3. Remove oven door assembly.
4. Remove storage drawer assembly.
5. Remove maintop.
6. Remove lower rear galvanized cover from appliance.
7. Support side of range four to six inches off floor.
Remove four screws from bottom flange of side
panel.
8. Remove main top support rod on side being
repaired, if applicable.
9. Remove screws securing side panel to rear
insulation retainer.
10.Remove screws securing backguard support to side
panel.
11.Remove screws securing drip baffle to side panel.
12.Remove screws securing side panel to front frame
flange.
