RS2310002 Rev. 1 12

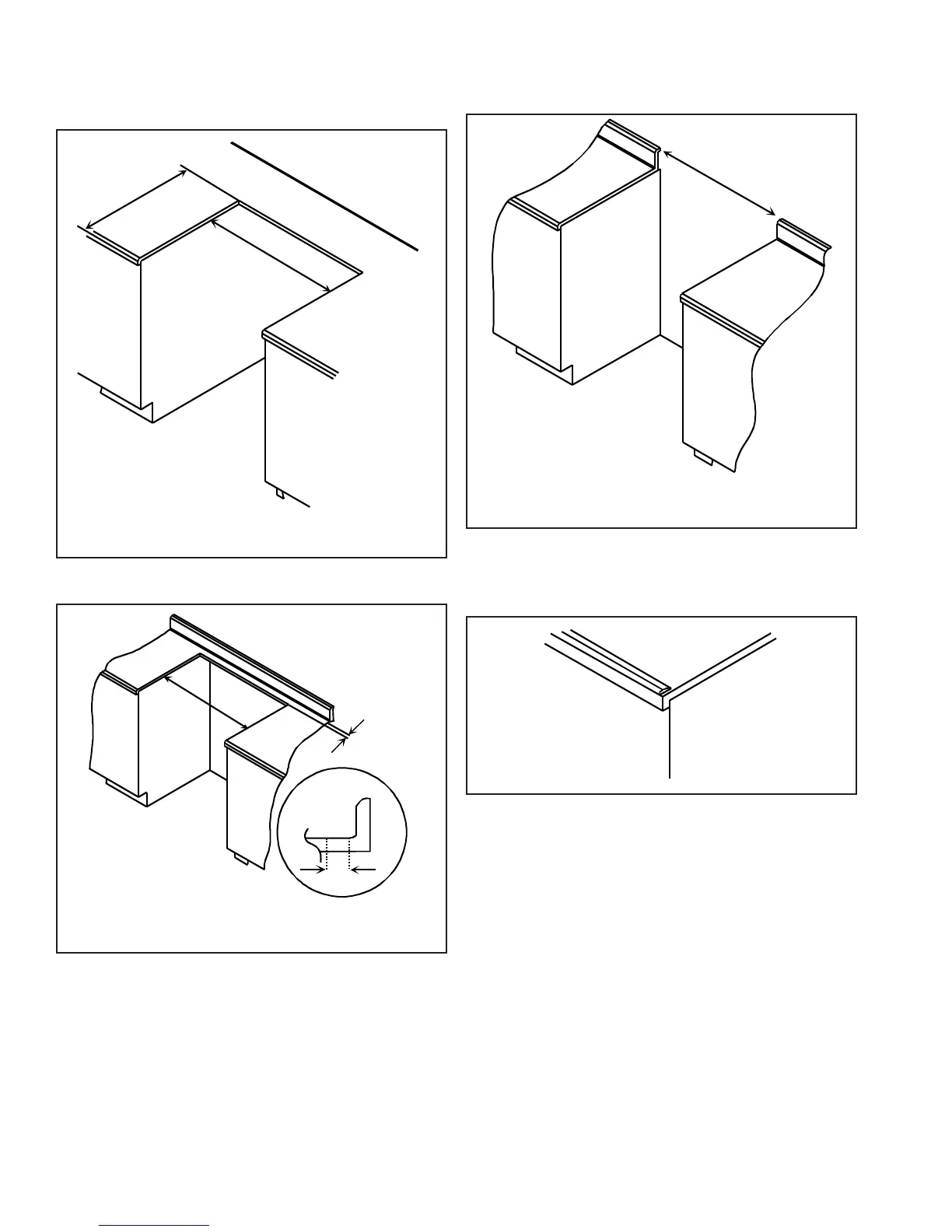

Installation Instructions for Slide-In Ranges
Counter Top without Backsplash
A
A—30
1
/8 inches minimum
Minimum clearances of 0 inches to rear wall.
Counter Top Front Edge
Counter top front edge may require cutting to fit 31 inch
range top. Allow for ½ inch overlap on each side.
Irregular Cabinet and Counter Top Heights
Counter tops such as ceramic tile tops can cause
cabinet and counter top to be higher than 36 inches.
Follow instructions below when counter top is higher
than 36 inches.
1. Raise leveling legs to maximum level.
2. Measure from floor to range top. If measurement is
less than height of counter top floor must be
shimmed.
3. Shim floor using a piece of plywood same size as
range opening. Secure plywood to floor. Plywood
must be as secure as original flooring.
4. Install anti-tip bracket and slide range into place.
• See “Anti-tip Bracket Installation” section.
Counter Top Opening
Island Installation
A
B
A—25 inches
B—30
1
/8 to 30¼ inches
Counter Top with Backsplash
A
B
B
A—30
1
/8 to 30¼ inches
B—
1
/2 inch minimum starting on horizontal plane
