Installation Instructions for Slide-In Ranges

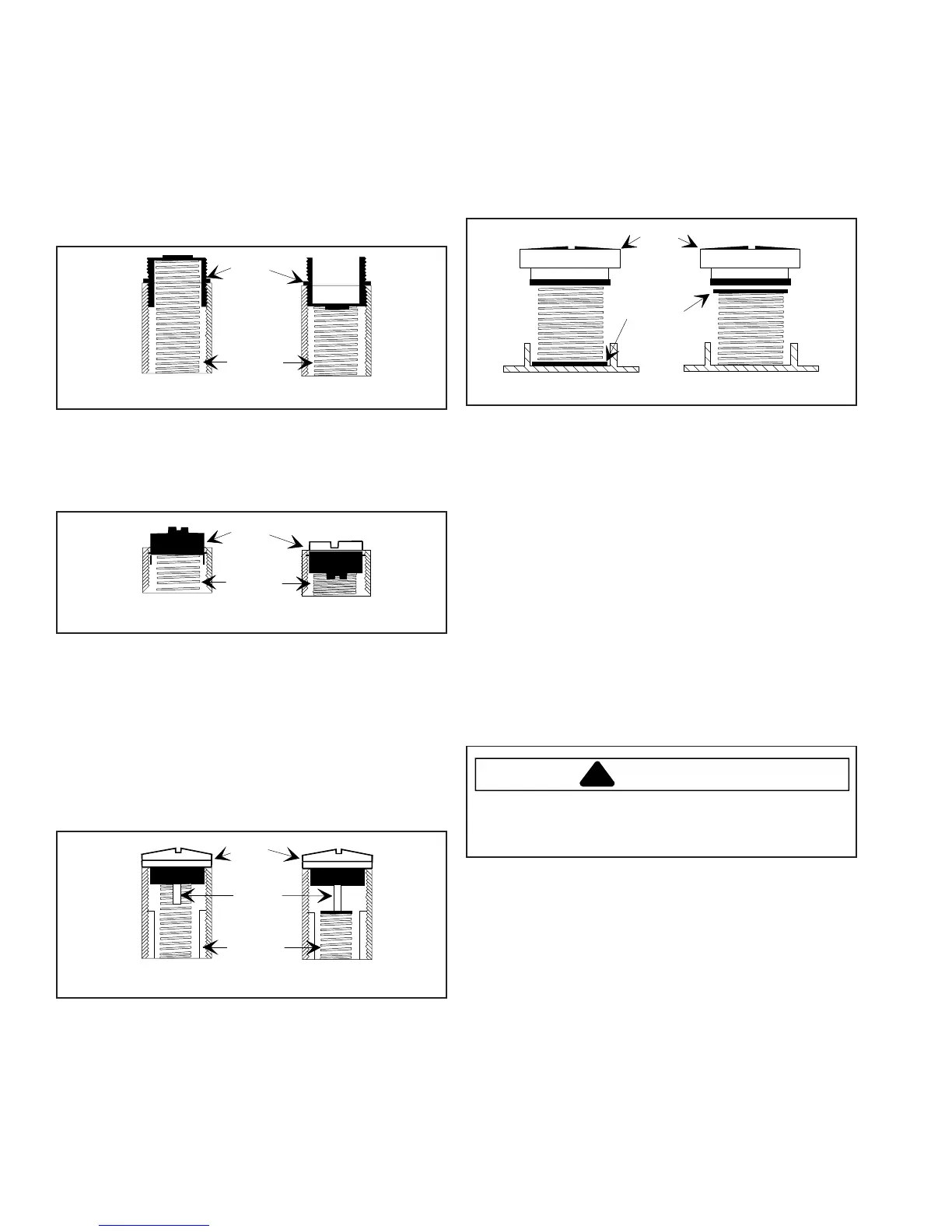

Example Three
1. Remove cap marked “Nat.”
2. Reverse cap. “LP” now appears on cap.
3. Reinsert cap. Do not disturb spring beneath the cap.
Verify fiber washer is correctly between cap and the
regulator body.
NOTE: Some models may not have washers. If washer
is not supplied, none is needed.
Natural Gas
L.P. Gas
Cap
Spring
Example Four
1. Remove cap with screwdriver slot.
2. Reverse and replace cap. Verify “LPG10” is visible. Do
not disturb spring beneath cap.
Natural Gas
L.P. Gas
Cap
Spring
Example Five
1. Remove cap with screwdriver slot.
2. Remove black insert marked “NAT.” from cap. Insert
fits tightly in cap.
3. Reverse insert.
4. Replace in hole. Verify “LP” is visible. Verify that
insert is pressed firmly into shoulder. Do not disturb
spring in regulator body.
5. Replace cap in regulator body and tighten.
Natural Gas
L.P. Gas
Cap
Insert
Spring
Example Six
1. Remove cap with screwdriver slot.
2. Remove spring and washer. Washer will be at bottom
of spring as illustrated below.
3. Reverse to bring washer to the top.
4. Reinstall spring and washer.
5. Tighten cap.
Cap
Washer
Natural Gas
L.P. Gas
Gas Connection
Connect gas supply to regulator using hard pipe or a
flexible connector. Pressure regulator supplied with this
appliance has a ½ inch NPT female connection. If gas
union is used, remove storage drawer, slide range into
place, and connect union. See illustration.
• A manual shutoff, not supplied with range, must be
installed in an accessible location outside of range.
• Use joint compound that is resistant to action of
propane gas on all male pipe threads.
• Use supplied pressure regulator only.
• Do not overtighten gas fitting when attaching to
pressure regulator. Overtightening may crack regulator.
• Support pressure regulator with wrench when installing
gas fitting.
WARNING
!
To avoid property damage or personal injury, only use a
new flexible connector that is AGA/CGA design
certified.
• Do not use an old connector.
• Do not reuse a connector after moving
appliance.
