RS2310002 Rev. 1 22
Installation Instructions for Slide-In Ranges
AXF100 Backguard Kit Installation

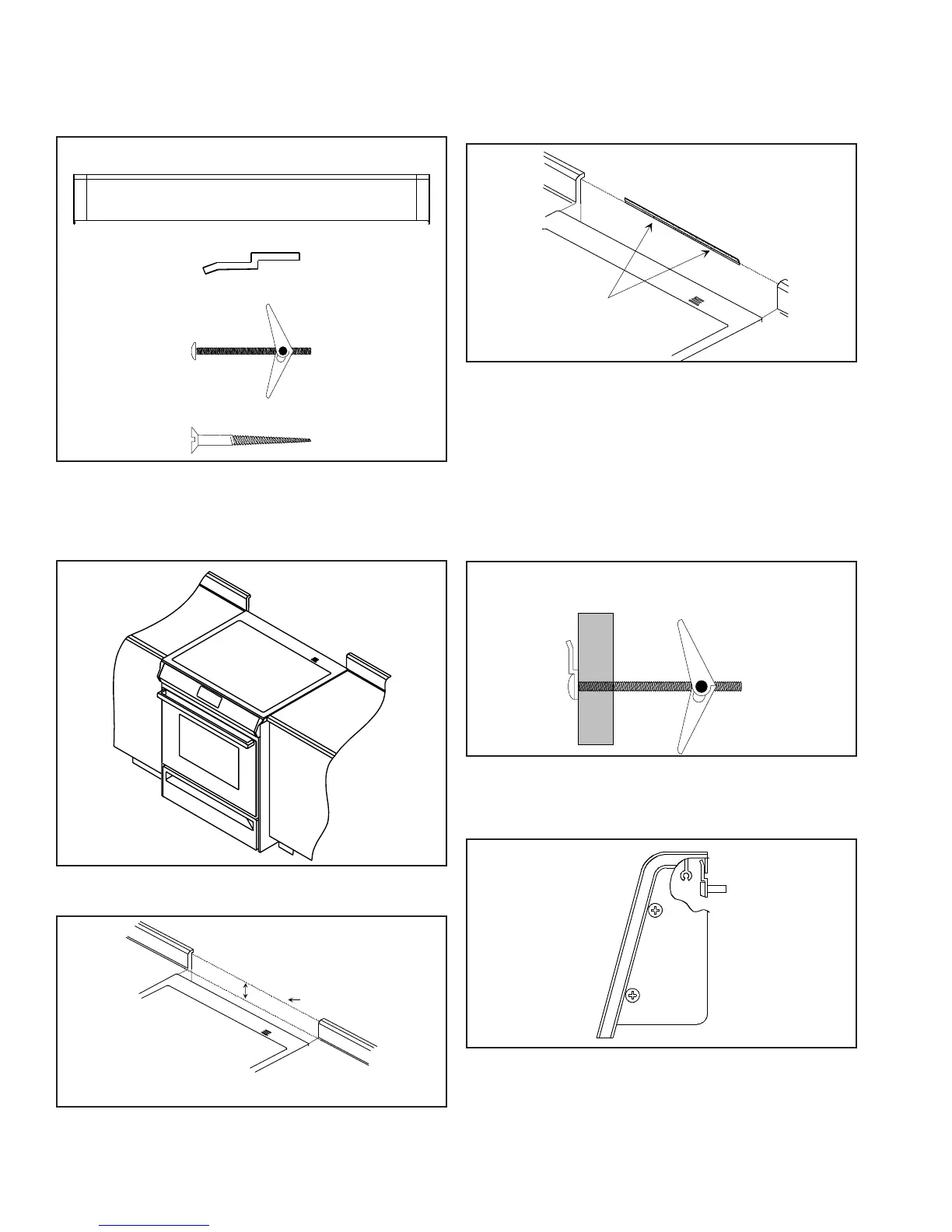

Instructions Contents
1—Backguard
1—Bracket (24" long)
2—Bolt and toggle (For dry wall mounting)
2—Screws (For wood wall mounting)
1. Install range according to Owner's Manual
instructions.
• Install Kit AXF100 where countertop backsplash
has been removed.
2. Measure 3½ inches above countertop and draw a line
across cutout.
A
Draw line
A=3½ inches
3. Place bracket against rear wall in center of cutout.
Move bracket until line shows through screw holes.
Mark screw hole locations on wall.
Mark hole locations
4. Drill holes at marked screw hole locations.
• Use
3
/8-inch drill bit for bolt and toggle.
• Use
3
/32-inch drill bit for wood screw.
5. Insert toggle bolts or wood screws through bracket as
shown.
• If using wood screws, go to next step.
• Confirm bracket is facing correct direction on bolt
before pushing into wall. If bracket is facing wrong
direction, backguard will not fit on bracket.
Note the direction bolt passes
through bracket.
Wall
6. Push toggle bolts into holes and tighten. If using
wood screws, screw bracket to wall.
7. Place backguard onto bracket.
To Next Page
