C–1 RS2310002 Rev. 1

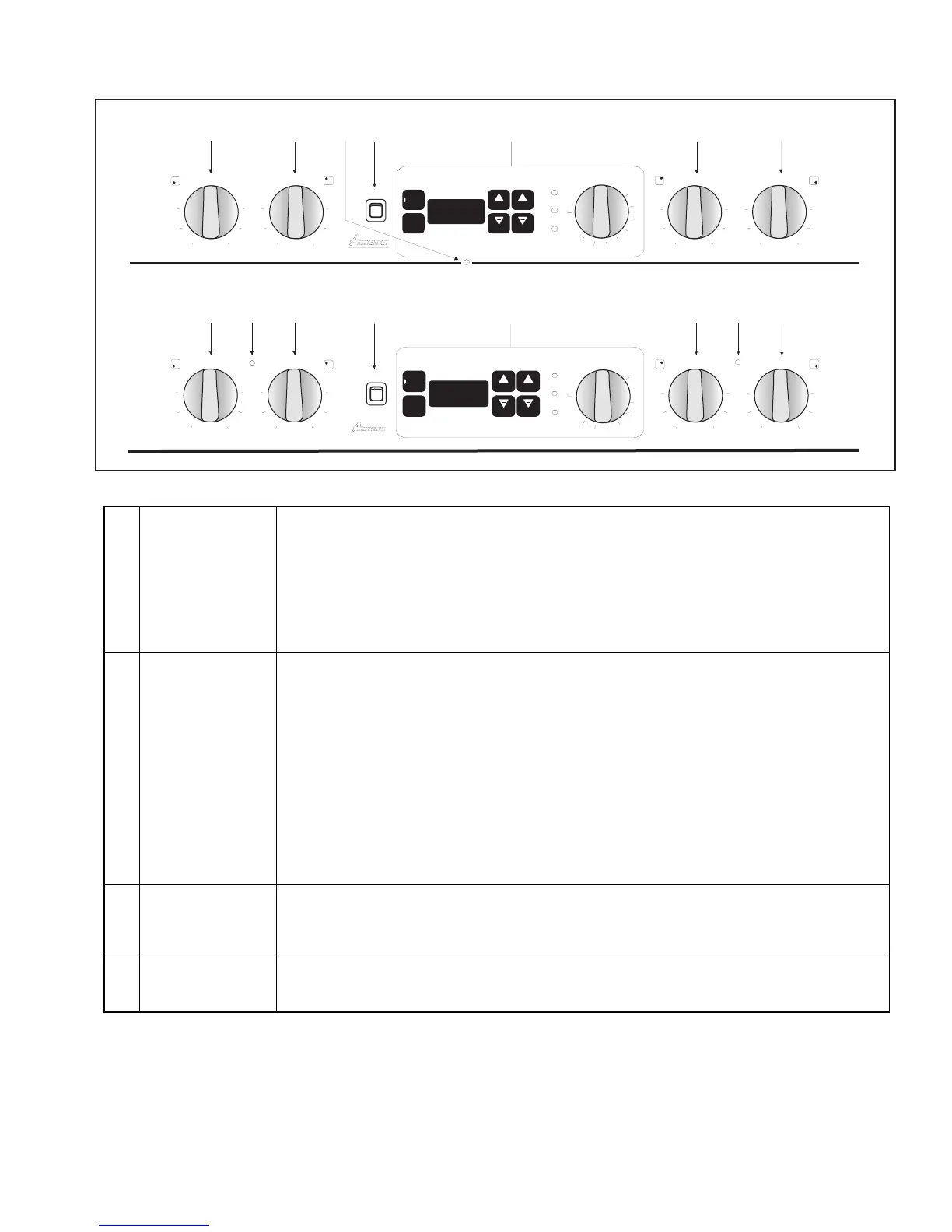

Eaton KRC with Mylar Overlay
SELF CLEAN OVEN
OFF
LO HI
MED
REAR
FRONT
OFF
LO HI
MED
OFF
WM
500
BROIL
250
450
550
PREHEATED
OVEN
OFF
LO HI
MED
OFF
LO
HI
MED
FRONT REAR
OVEN
LIGHT
SURF
ACE
400
350
300
200
dition
F
irst
E
LOCKED
CLEAN
TIMER
CLOCK
+
HRS
+
MINS
HRS
MINS
TIMER
CLOCK
+
HRS
+
MINS
HRS
MINS
OFF
LO
HI
MED
REAR
FRONT
OFF
LO
HI
MED
OFF
WM
500
BROIL
250
450
550
PREHEATED
OVEN
OFF
LO HI
MED
OFF
LO HI
MED
FRONT
REAR
OVEN
LIGHT
400
350
300
200
LOCKED
CLEAN
SELF CLEAN OVEN
B
C
AD
A
A
A
B
CA
D
A
A
A
B
A Surface element
control knob
Use to turn surface elements on and off. Settings:
LO
—
Use to prepare food at less than boiling temperatures or to simmer.
MED
—
Use to maintain boiling of larger amounts of food, low temperature frying and to
maintain correct pressure in a pressure cooker.
HI
—
Use to bring food to boiling temperatures. When food is boiling temperature setting
should be reduced to MED through HI.
B Surface element
indicator light
Some ranges have two indicator lights, one for elements on right side and one for
elements on left side of range. When either front or rear element is on, corresponding
indicator light glows.
Some ranges have one indicator under clock. When any element is on, indicator light
glows.
Smoothtop ranges can have one or two indicator lights. After the surface controls are
turned off, the appropriate surface indicator light will continue to glow until the surface
elements have cooled. The time each light remains on will vary. Do not expect the
lights for two different heating areas to go off at the same time even if the elements
were turned off simultaneously.
C Oven light switch Used to light inside of oven. On some models, light turns on when oven door is opened.
On all models, switch located next to clock, turns oven light on and off without opening
door.
D Range control Used to control oven functions like baking, broiling, and self-clean. Also controls clock
and minute timer.
