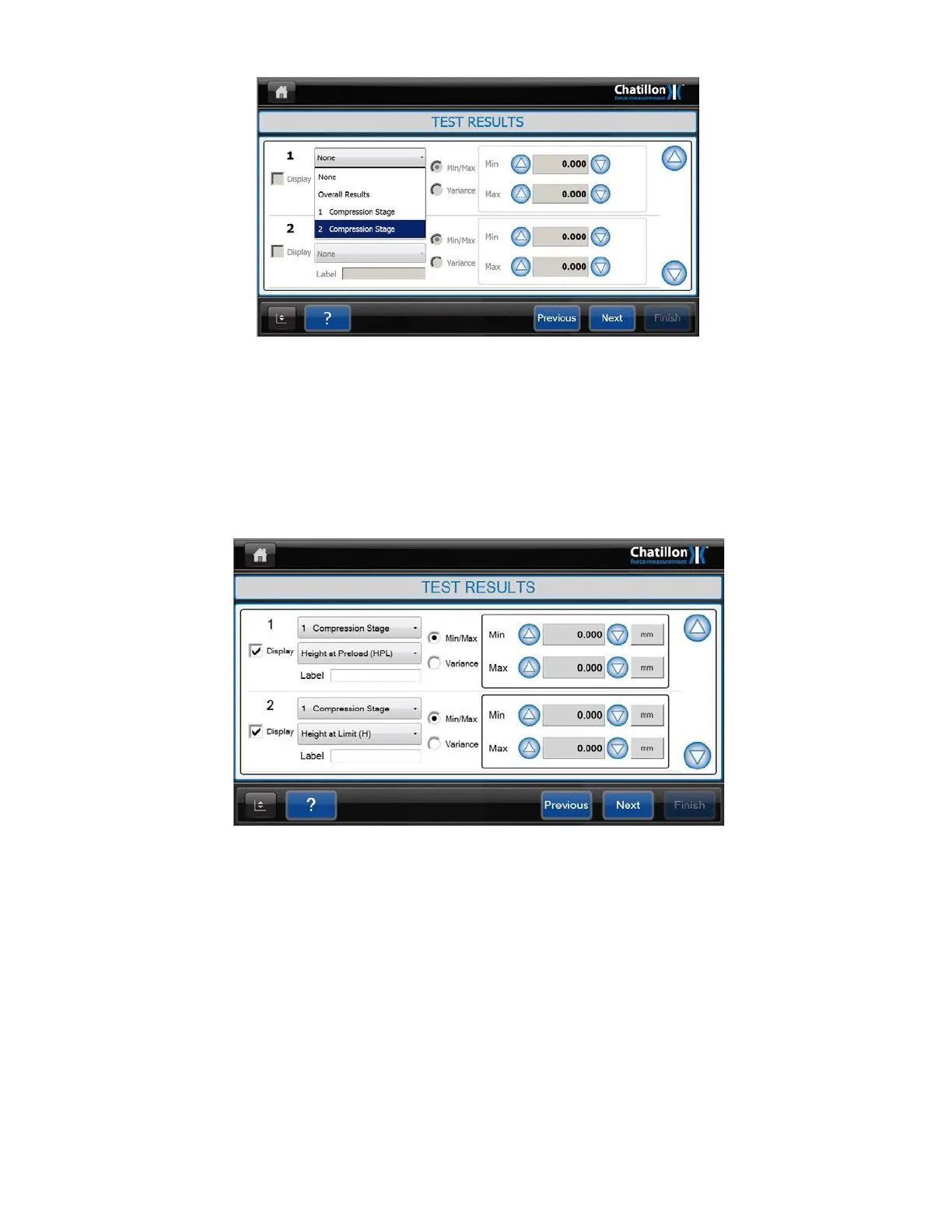

14 Press on the “NEXT” button to display the “TEST RESULTS” screen.
15 Press on the top drop down control for result 1 to display the list of “Stages” then
select “1 Compression Stage”.
16 Press on the bottom drop down control for result 1 to display the list of “Results”
then select “Height at Preload (HPL)”.
17 Press on the top drop down control for result 2 to display the list of “Stages” then
select “1 Compression Stage”.
18 Press on the bottom drop down control for result 1 to display the list of “Results”
then select “Height at Limit (H)”.
19 Press on the top drop down control for result 3 to display the list of “Stages” then
select “2 Compression Stage”.
104 CS User Manual
