9 Press on the “OK” button to close the screen and return to the “SELECT NEXT
STAGE” screen.

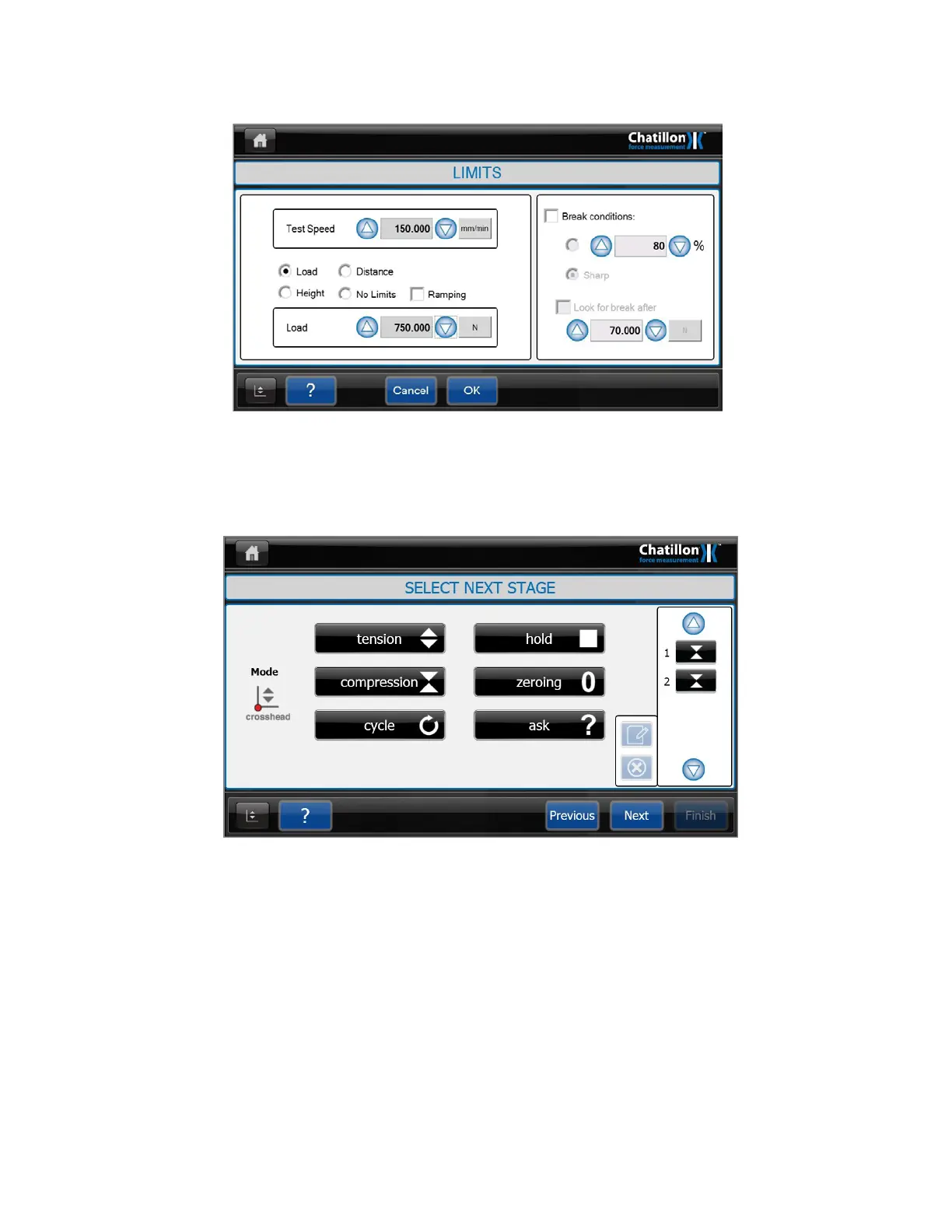

10 Press on the "COMPRESSION" again to redisplay the "LIMITS" screen.
11 Set the Test Speed to the required value (150mm/min in the example screen
above), then select the Load option and set the Load to the value required for L2.
Uncheck Ramping box.
12 Press on the “OK” button to close the screen and return to the “SELECT NEXT
STAGE” screen.
13 Note that the right hand side of the screen shows that 2 actions have been defined.
CS User Manual
103
