During calibration several other functions are available:
“Result
1
” - To view the calibration results (no editing is
possible).
“Pause
3
” - To pause the calibration.
“Prev
4
” - Force the calibration to jump a step backwards
to the previous calibration screen regardless of
the calibration stability.
“Next
5
” - Force the calibration to jump a step forwards to
the next calibration screen regardless of the
calibration stability. This will leave the current
step without saving calibration results.
“View
6
” - To view the workorder settings.

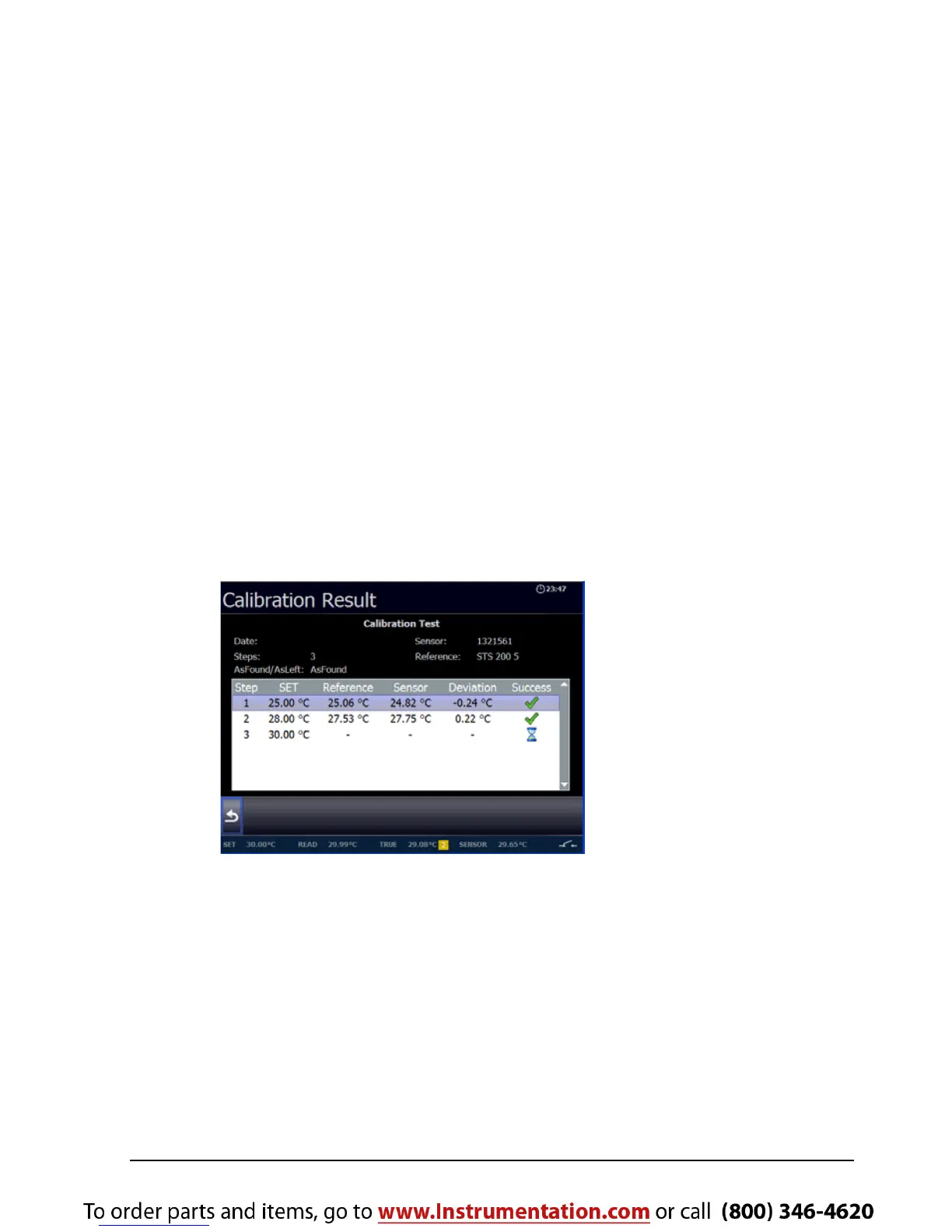

When the calibration has completed a green check is
shown on the screen and the Calibration Result follows
quickly hereafter.
Select “Save
1
” to store the results in the calibrator
or
select “Discard
2
” and press “Yes” to delete the calibration
results or “No” to return to the Calibration Result screen.
A full Calibration Result List can be viewed using the
instructions in section 4.7.2.
