User Manual – Rev AV AMETEK Programmable Power
MX Series 131

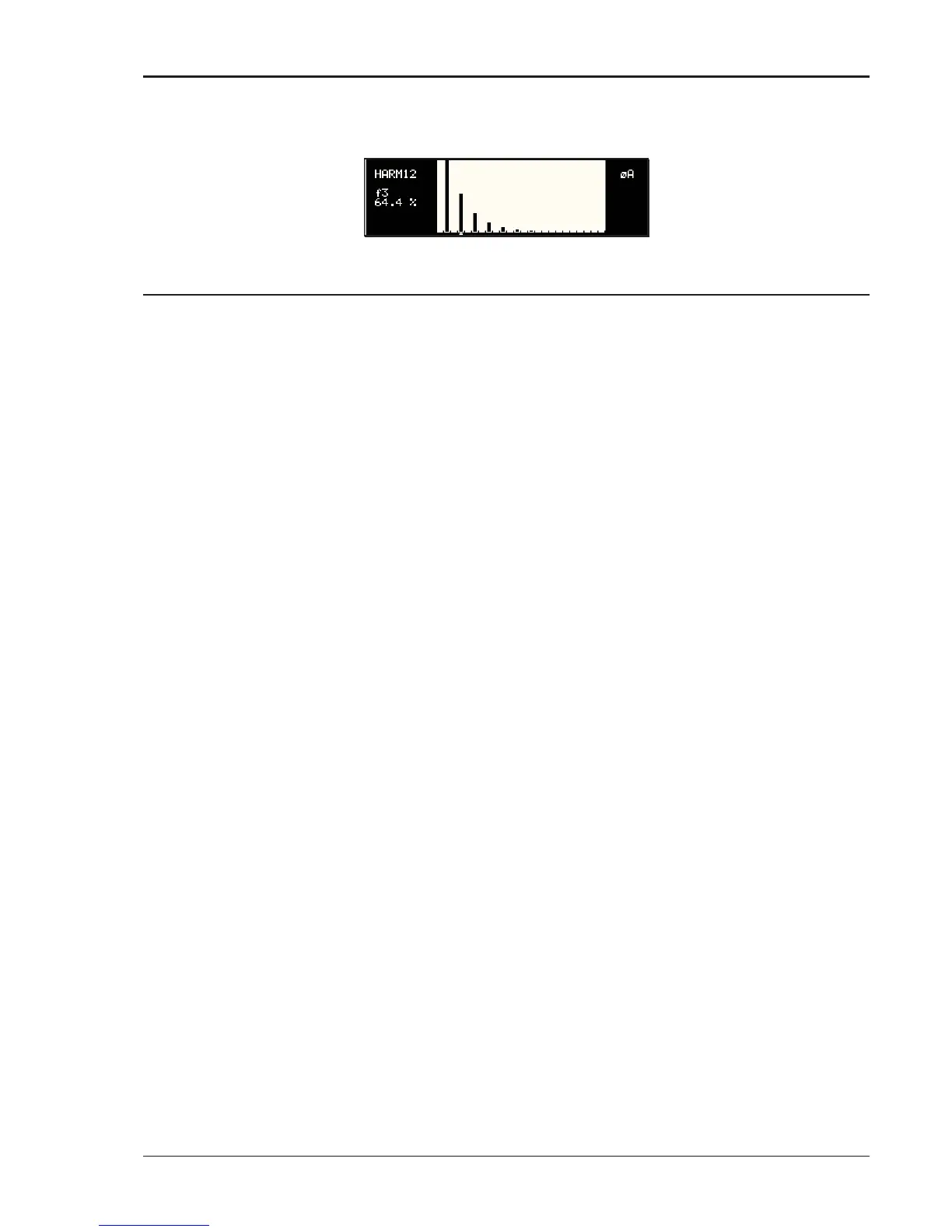

The frequency domain VIEW mode in the WAVEFORMS menu may be used to visualize the
content of each custom waveform register on the LCD.
Figure 4-35: Waveform Frequency Domain View Mode
4.4.7 Switching Waveforms
Waveforms can be switched as part of the transient system. Each transient type setup menu has
a FUNCTION field. This field allows selection of any of the standard or custom waveforms
available in the selected group. Refer to the section on transients for more details on using
transient list to switch output waveforms.
