User Manual – Rev AV AMETEK Programmable Power
MX Series 43
3ø
AC Line
Input
PROTECTIVE
GROUND
EXTERNAL
CIRCUIT
BREAKER
AC MAINS
3 PHASE

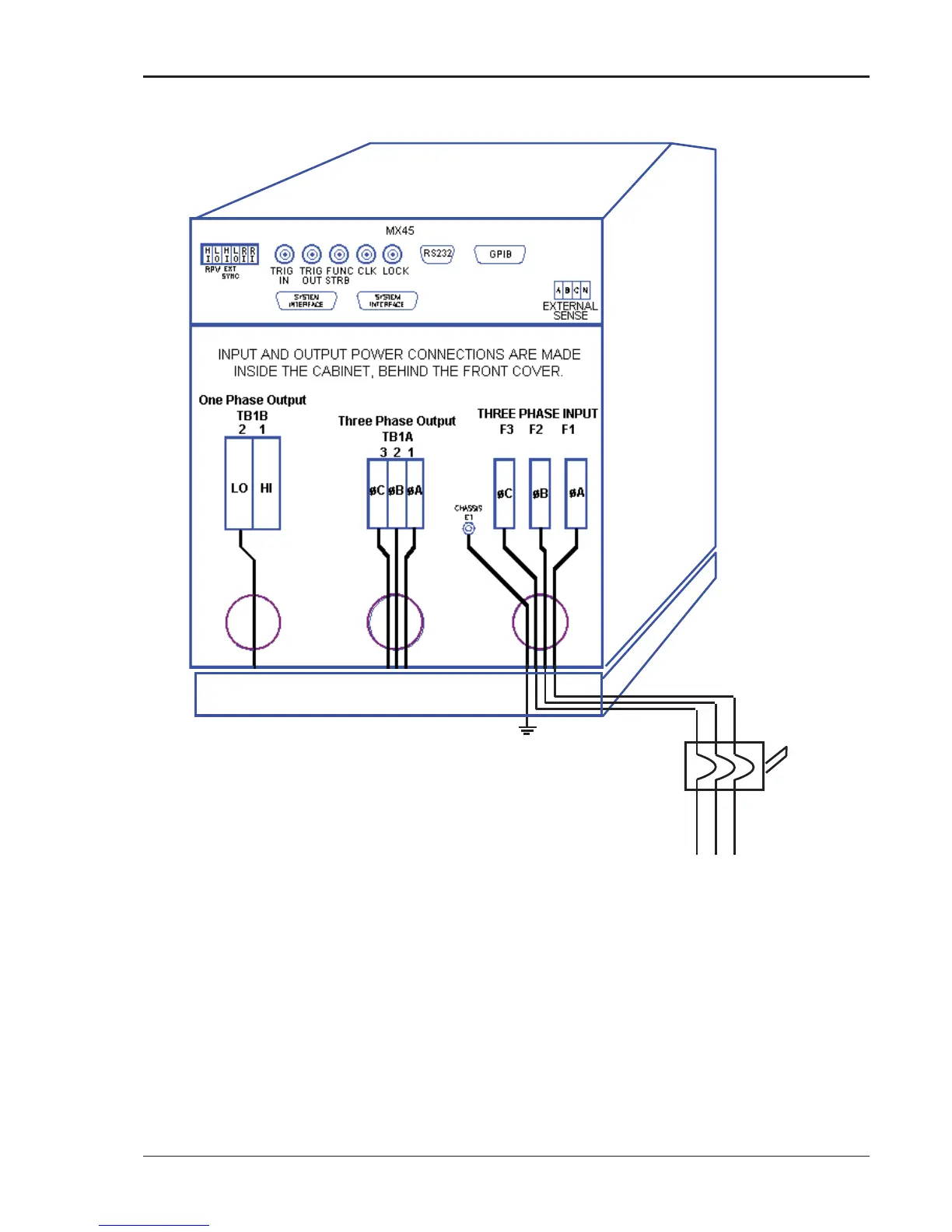

Figure 3-3: MX Series AC Input Connection Diagram (Rear view)
