2.9. Using the machine under special conditions
68
1
((
((
(
2
4
5
1
2
3
4
3

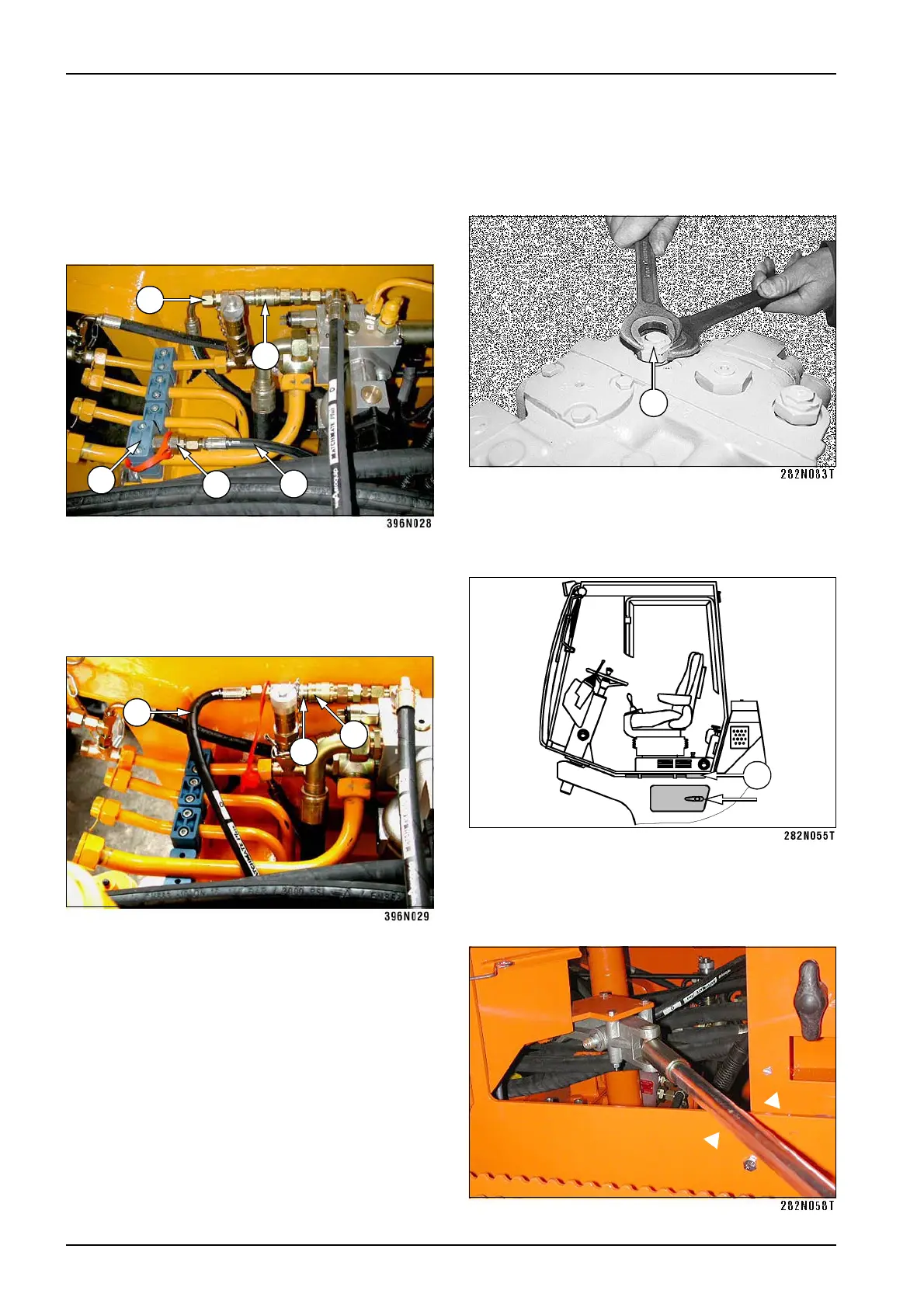

• Unscrew central parts (1) (haxagonal 27 mm (11/16”))
by three turns anti-clockwise on two multi-purpose
safety valves of the hydro-generator of travel.
• Open the cover on the left side under cabin. Take out
the lever (68) under the driver’s stand.
• Insert the lever (68) into the manual hydro-generator
and pump until the machine is unbraked for towing
now.
Releasing brakes of the drum and the wheels for ASC
200÷250
• Release hose 4 by quick coupler 3 in clamp 5.
• Disconnect hose 1 from pressure filter to hydraulic
tank in quick coupler 2.
• Connect quick coupler 3 on hose 4 to manual hydrau-
lic generator with quick coupler 2 in hose 1.
