48 ASC110/ASC130/ASC150/ASC200/ASC250
2.1. Safety Regulations

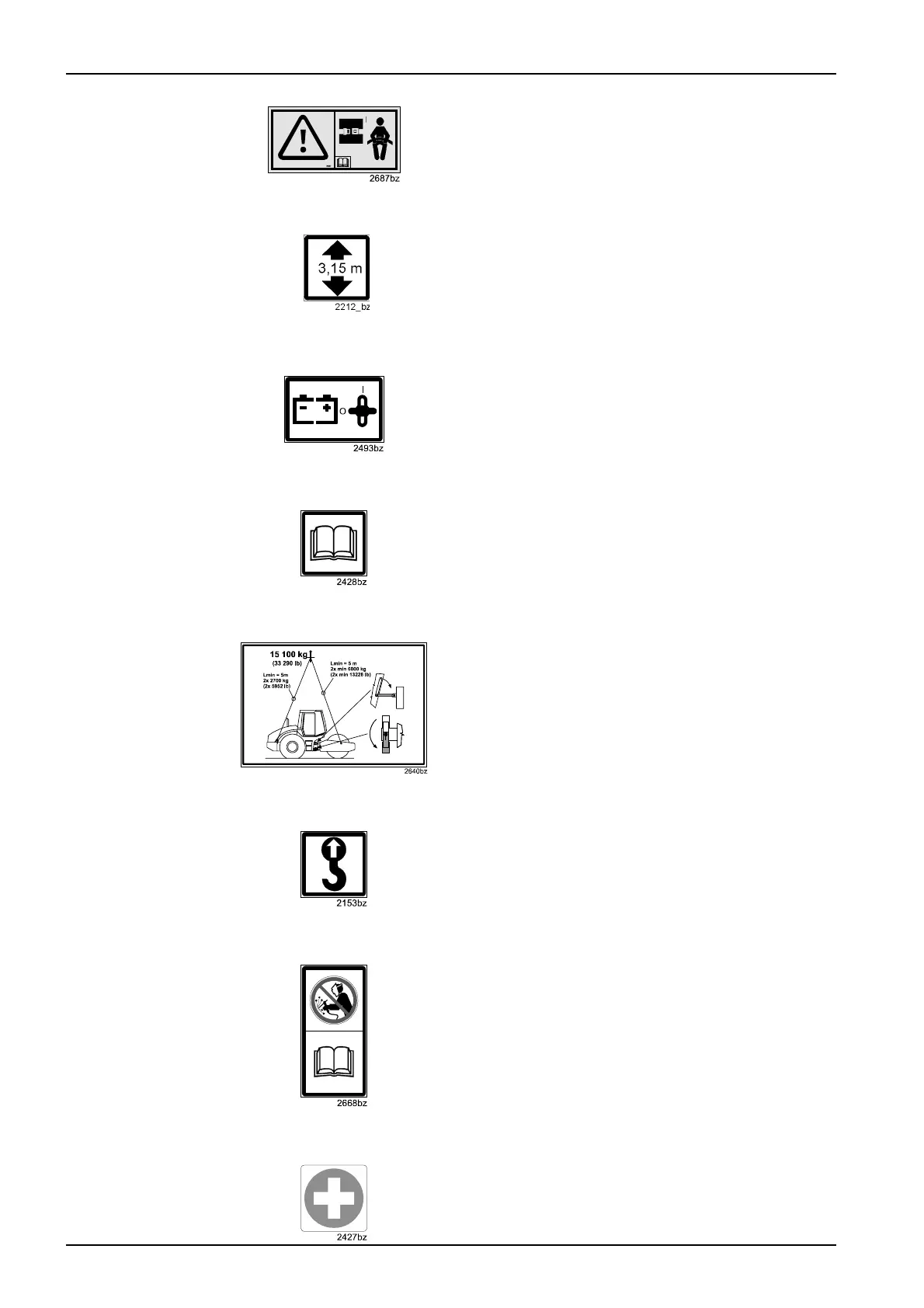

7. Safety belt Fasten your safety belt before machine start. (Symbol located on
the left side of the control board)
8. Machine maximum height Attention to be paid when driving through places with a height
limit. (Symbol located on the left side, on the frame under the
cab)
9. Battery disconnector Switch the battery disconnector into „O“ position in the case of a
failure and after end of work. (Symbol located on the panel under
the left side door)
10. Handbook Indication of a box containing the machine handbook (Symbol
located at the back of the seat)
11. Hanging figure To lift machine, binding means of sufficient capacity to be used.
Lock the machine joint before hanging it. (Symbol located on the
left side door)
12. Hanging spots Suspend the machine in these spots only. (Symbols located on
the both sides of the frames)
13. Disconnect the alternator Prior to welding on the machine disconnect the alternator, ASC,
control unit of engine (Symbol located on the internal side of the
side door)
14. First-aid kit Indication of the first-aid kit box. (Symbol located in the top left
corner of the cab)
