59ASC110/ASC130/ASC150/ASC200/ASC250
OPERATING INSTRUCTIONS

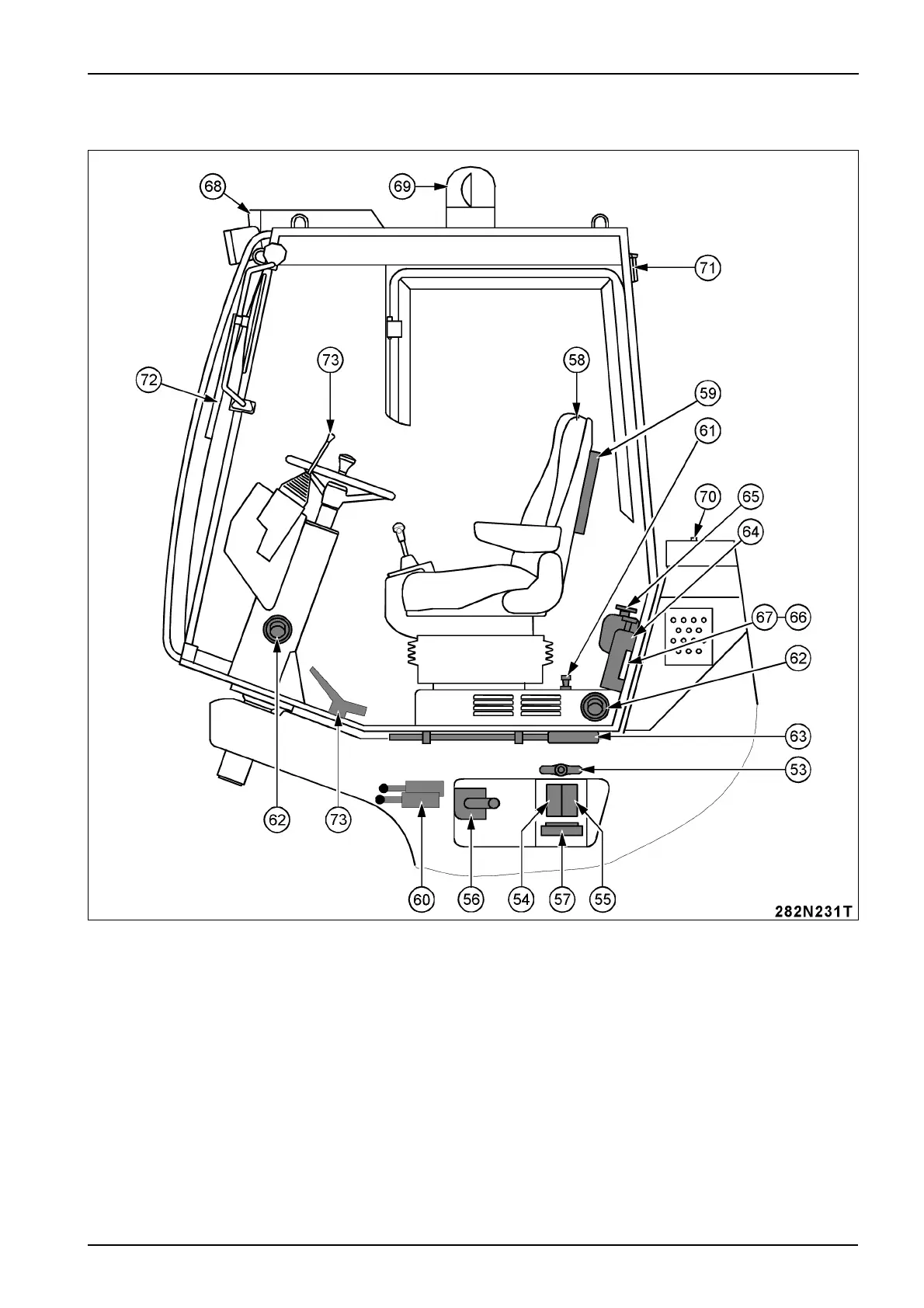

Cabin
53 - Battery disconnector
54 - Cabin lifting and lowering switch
55 - Bonnet lifting and lowering switch
56 - Manual hydro-generator for lifting and lowering of
driver’s stand and bonnet
57 - (50A) fuse
58 - Driver’s seat
59 - Box
60 - Levers of lifting and lowering of cab and hood
61 - Heat control
62 - Heating vents
63 - Manual hydro-generator operating lever
64 - Fire extinguisher
65 - Washer tank
66 - Bottle holder
67 - Storage compartment
68 - Cabin ventilation filter
69 - Beacon
70 - Beacon connector
71 - Rear wiper
72 - Front wiper
73 - Blade control - hand
pedal
