73ASC110/ASC130/ASC150/ASC200/ASC250
OPERATING INSTRUCTIONS
45
47 44
46
ASC connector (41)
Use this connector to connect a service device (notebook)
in order to communicate with the control module (susmic)
and to troubleshoot.
Fuse box (42)
Fuse (F1) -20 A (upper fuse) front + rear lights, front
parking + rear lights, auxiliary head-
lights, dashboard illumination, lifting
and lowering of bonnet and driver’s
stand, license plate illumination.
Fuse (F2) -10 A portable lamp connector, cabin illumi-
nation, horn, direction indicators, bea-
con.
Fuse (F3) -7.5 A brake, brake signal lamp, brake lights,
magnets - transporting speed of whe-
els, travel servo valve, vibration mag-
nets, vibration-on signal lamp, back
horn, hydraulic oil level signal lamp,
travel control neutral position signal
lamp
Fuse (F4) -10 A ASC (Anti Slip Control)
Fuse (F5) -15 A fuel gauge, revolution counter, hour-
meter, hydraulic oil thermometer, char-
ging signal lamp, air filter signal lamp,
hydraulic oil level signal lamp, water
in fuel signal lamp, maintenance sig-
nal lamp, stop engine signal lamp,
engine warning signal lamp.
Fuse (F6) -15 A ventilation fan, heating fan, front and
rear washers, front and rear wipers.
Fuse (F7) -20 A reserve (air conditioning)
Fuse (F8) -20 A reserve
! NOTE !
Replace fuse with fuse of the same rate only!!!

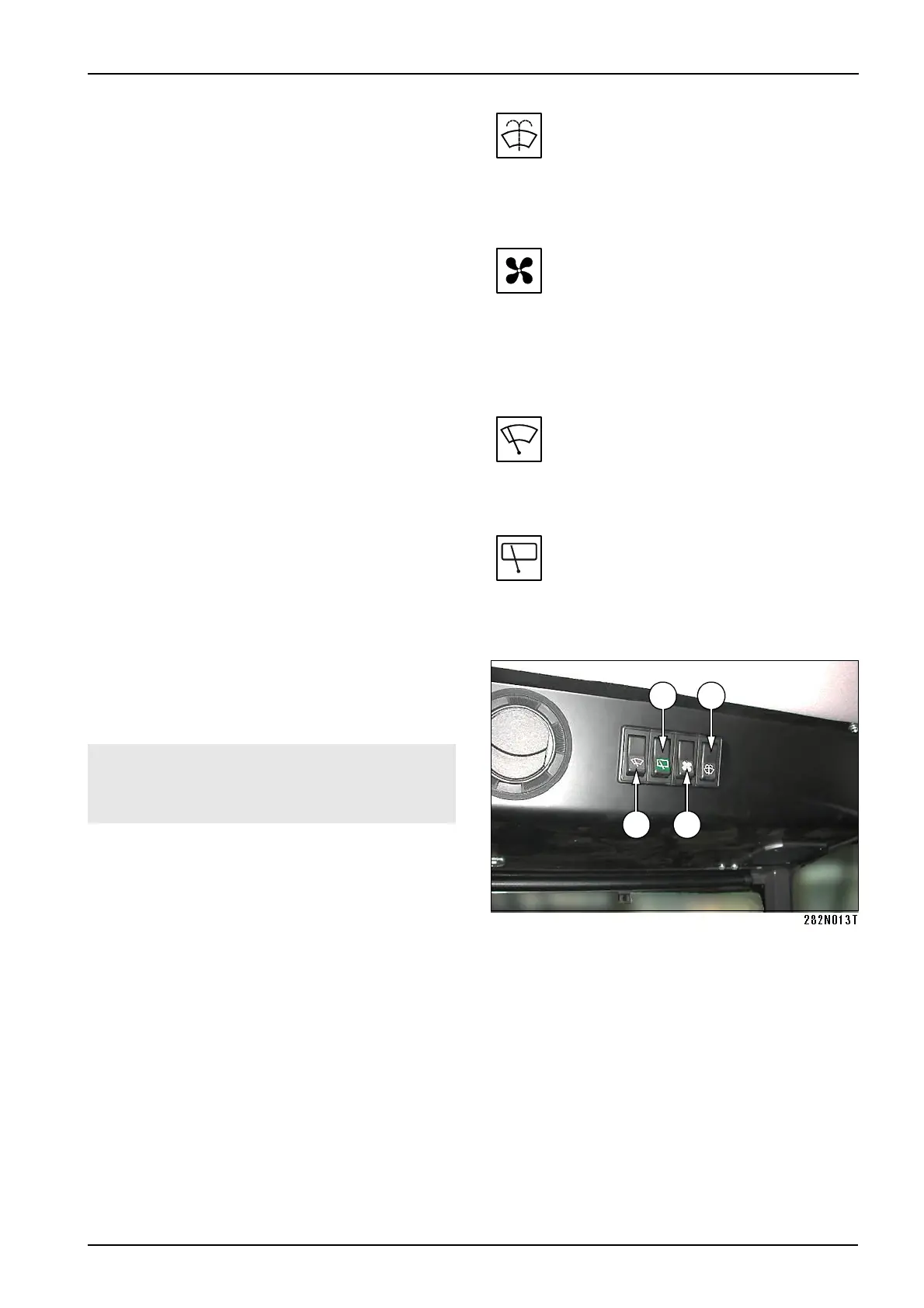

Windshield washer switch (44)
Use the switch to turn on front and rear washers at the
same time.
Roof fan switch (45)
Use this switch to turn on the roof fan.
NOTE
The fan draws outside air, through a filter.
Front wiper switch (46)
Use the switch to turn on the front wiper.
Rear wiper switch (47)
Use the switch to turn on the rear wiper.
