OPERATION MANUAL
Dashboard & Actuator Panel
1 - Ignition box
2 - Travel joy stick
3 - Parking brake
4 - Working/transport speed switch
5 - TOTAL STOP pushbutton (for emergency brake)
6 - Vibration switch
7 - Engine speed selector
8 - Power View Display
9 - Hydraulic oil thermometer
10 - ECM engine socket
11 - Switches
12 - Pilot lamps
13 - Fuses

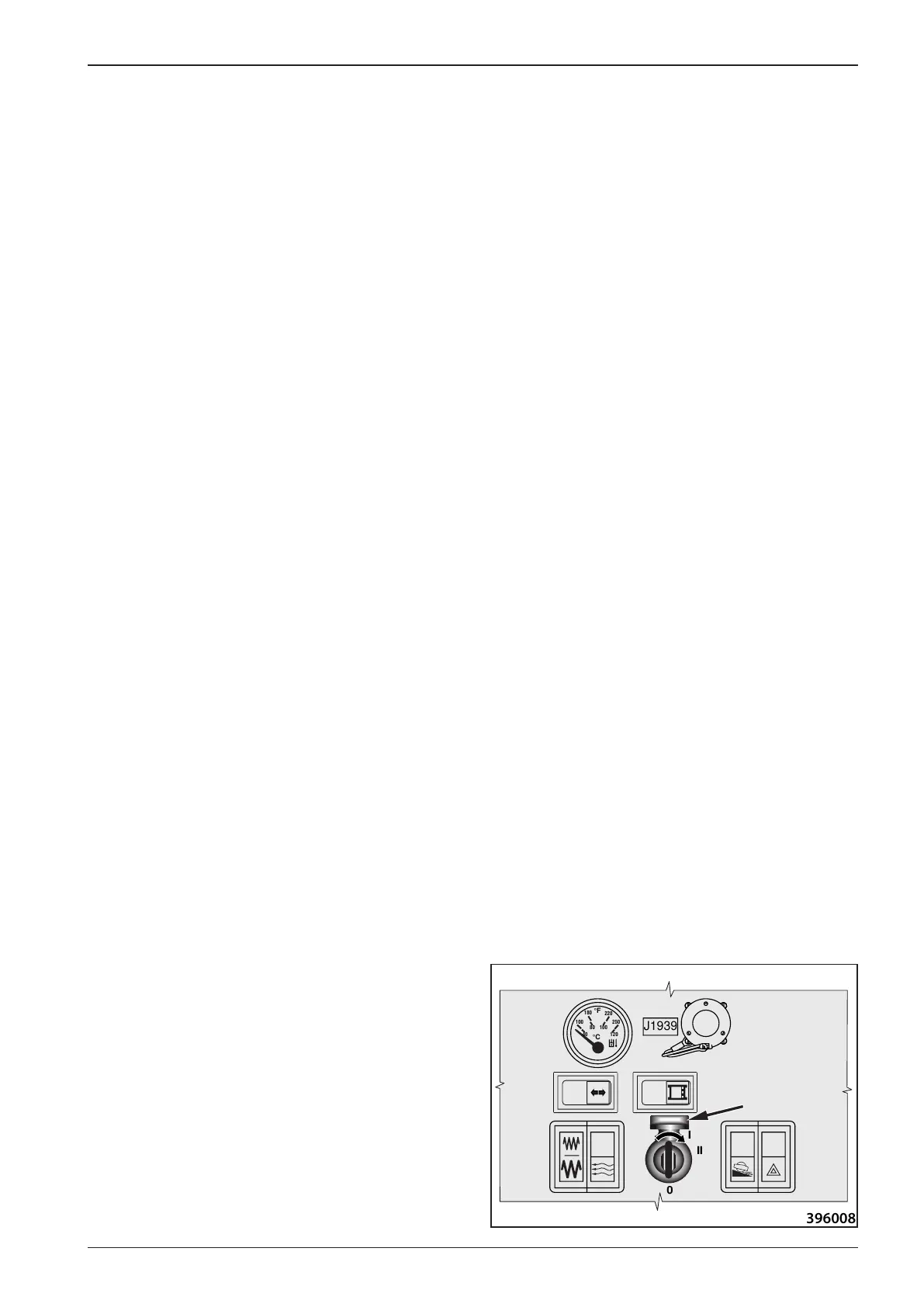

Ignition box (1)
While in “0” position the lights, cab/bonnet lifting and AC are
connected. While in “I” position the dashboard instruments are
connected. Position “II” is used to start the Machine.
Note
Ignition key is common for cab door, service door underneath
cab, and for tool kit.
