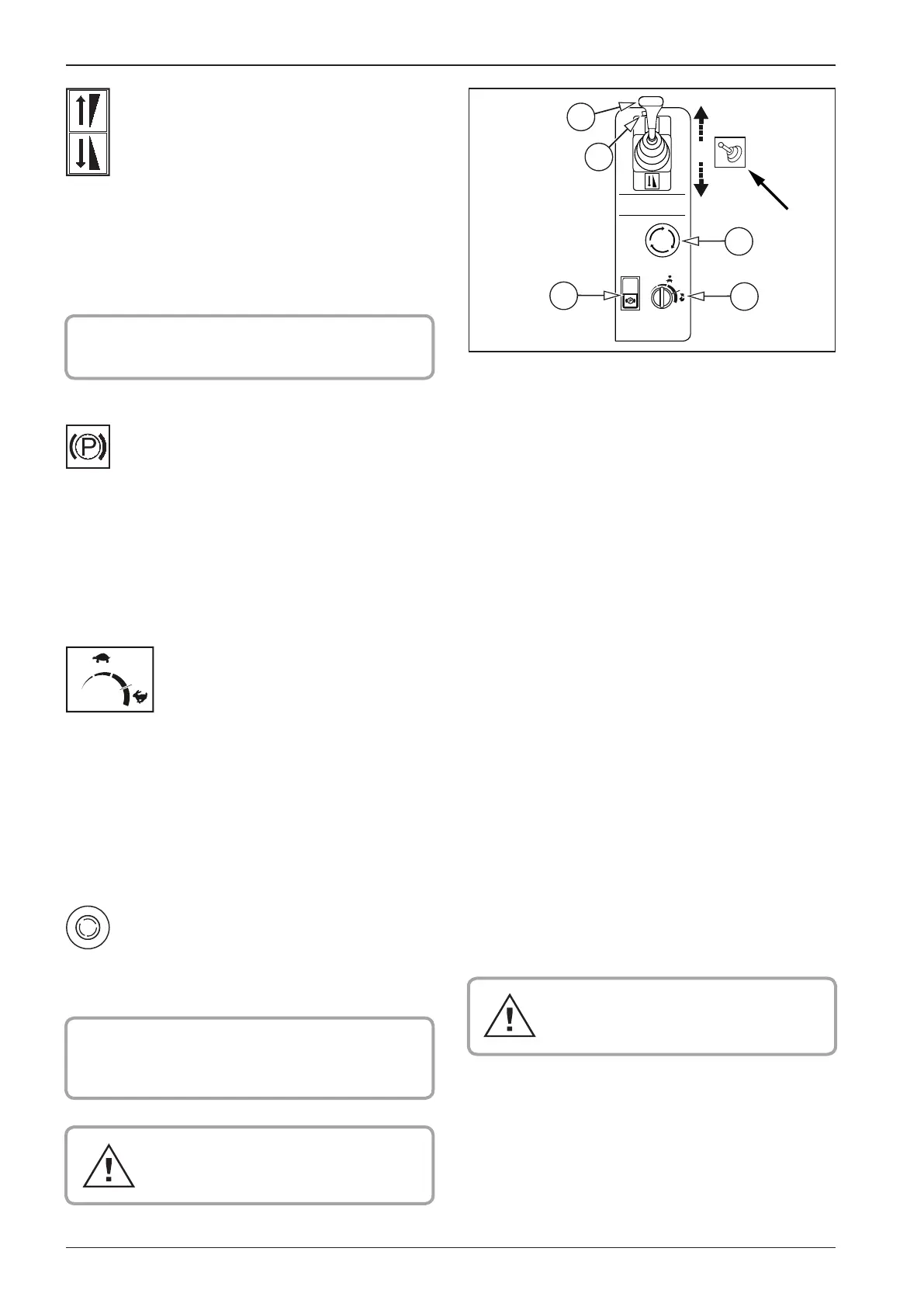

2.6. Actuators and dashboard instruments
Parking brake (3)
2582
Use this brake to stop the Roller if the engine is to keep run-
ning. In this case Driver may stand up from the seat and leave
the Roller.
Note
Unless standing Roller is braked and Driver stands up from the
seat, the Roller will brake and engine will shut o after 8 seconds.
TOTAL STOP pushbutton (5)
Press this button to stop and brake the Roller, and to shut o
the engine.
! CAUTION !
Brake o in arrow direction before starting the
engine.
It is forbidden to use the emergency brake
for turning o the engine during normal
operation of the machine!
Travel joy stick (2)
! CAUTION !
Adjust joy stick to neutral before engine start.
2445
Use this joy stick to adjust driving direction and speed. Driv-
ing speed corresponds to the size of joy stick deection from
neutral position. This joy stick becomes locked in the position
adjusted. Joy stick neutral position (N) will be signalled through
indicator lamp going on. In the actuator handle there is vibra-
tion switch (6) located to turn ON/OFF vibrations.
Vibration switch (6)
Vibration is able to be switched ON while driving.
It is forbidden to vibrate on the spot!
2703
Working/transport speed switch (4)
Three operating speeds and transport speed can be selected
using the switch while driving.
Position “I” – working speed 1 ON
Position “II” – working speed 2 ON
Position “III” – working speed 3 ON
Position “IV” – transport speed ON
