NXD-700i & NXT-CA7 7” Modero Touch Panels
NXT-CA7 Panel Connectors

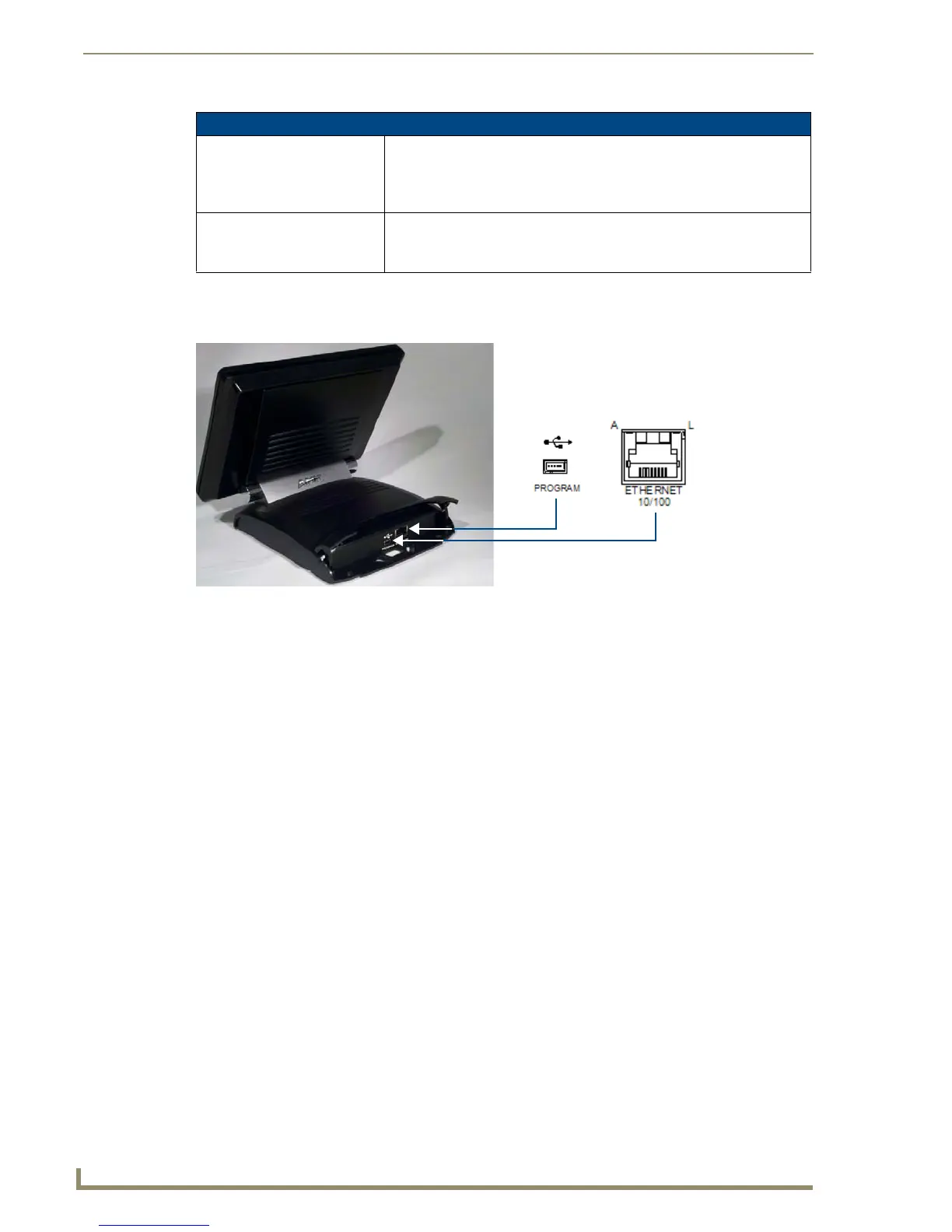

FIG. 3 shows the connectors located on the NXT-CA7 Modero panel. The mini-USB port is used both for
programming the touch panel and for audio output.
The mini-USB port is used both for programming the touch panel and for audio output.
The mini-USB port automatically detects the presence of a headphone adaptor, allowing the port to
be used for headphone connectivity.
The Ethernet connector also supports Power over Ethernet (POE)
NXT-CA7 Specifications (Cont.)
Operating /Storage
Environments:
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Other AMX Equipment: • PS-POE-AF PoE Injector (FG423-80)
• CC-USB Type-A to Mini-B5-wire programming cable (FG10-5965)
• USB to Headphone Adaptor (FG5966-23)
FIG. 5
Connector layout on the NXT-CA7 Touch Panels
