NXD-700i & NXT-CA7 7” Modero Touch Panels
NXD-700i Overview
The NXD-700i (FG2258-10) is an incredibly versatile user interface, combining a sleek, compact size, Wall/
Flush Mount flexibility and the ability to create a high quality digital home/office intercom network or to
make/receive digital local, long distance and international telephone calls.
Simply add the AMX SIP Communications Gateway (FG2182-0x) for calls that sound incredibly clear.
NXD-700i Specifications

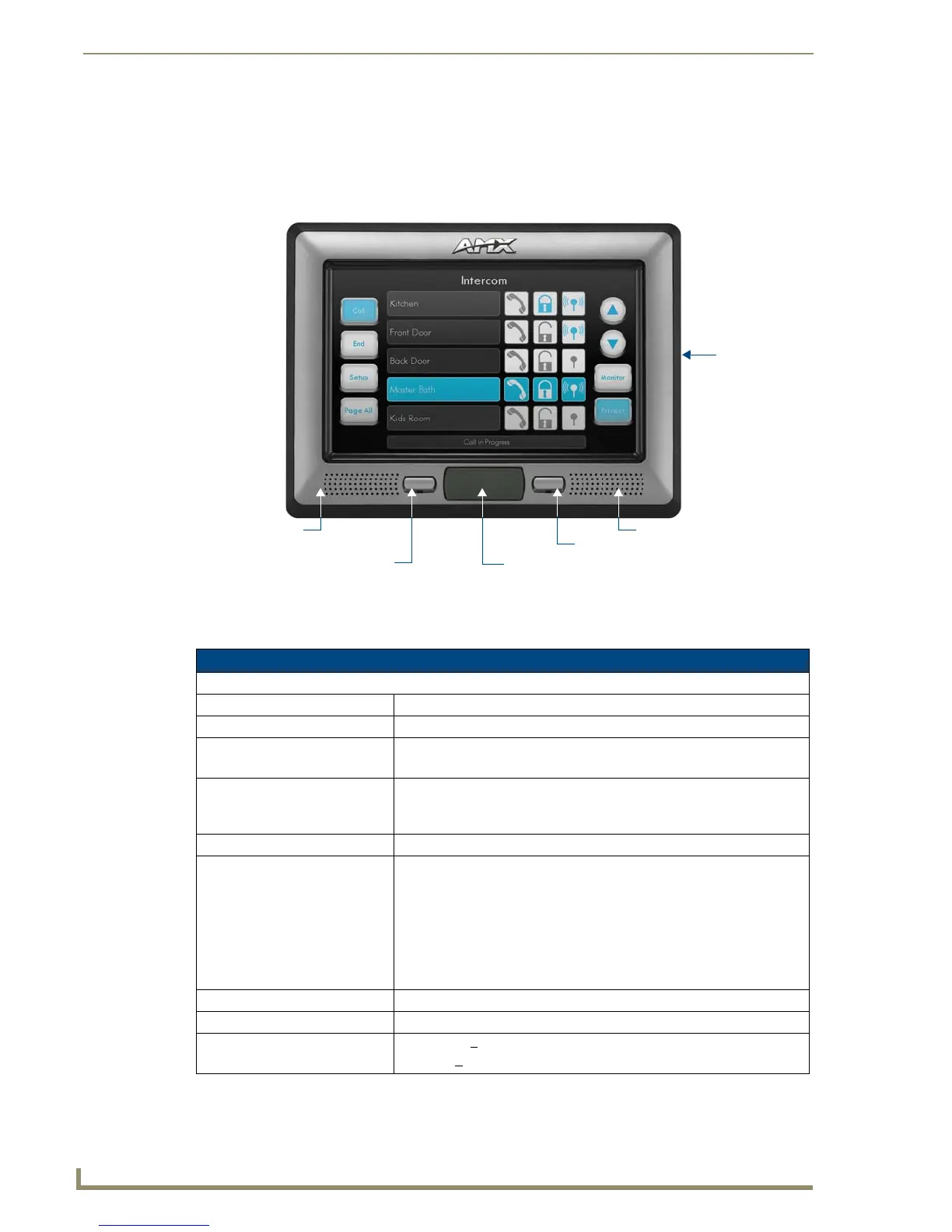

FIG. 2 NXD-700i (shown with Trim Ring 60-2258-26)
NXD-700i Specifications
Dimensions (HWD):
NXD-700i (Faceplate included) 5.93" x 7.87" x 3.28" (15.06 cm x 20.00 cm x 8.33 cm)
CB-TP7 (optional Rough-In Box) 5.47" x 7.23" x 3.40" (13.90 cm x 18.40 cm x 8.64 cm)
Power Requirements • PoE Powered - No local power supply needed
• Max power draw: 5.5W
Memory: • 128 MB SDRAM
• 256MB integrated Flash Memory (not upgradeable - factory
programmed, firmware upgradeable via a kit file)
Weight: 1lb (0.45kg)
Panel LCD Parameters: • Aspect ratio: 16 x 9
• Brightness (luminance): 300 cd/m2
• Contrast ratio: 400:1
• Display colors: 256 thousand colors (18-bit color depth)
• Dot/pixel pitch: 0.19 mm
• Panel type: TFT Color Active-Matrix
• Screen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
Active Screen Area: 6.00" x 3.60" (15.24cm x 9.14cm)
Viewing Angle: Up/Down/Left/Right: 70/60/70/70
IR Reception Angle: • Horizontal: +
50° (left and right from center)
• Vertical: +
30° (up and down from center)
Programmable pushbutton/LED
Microphone
Sleep / Setup Access button
Speaker
Programmable pushbutton/LED
Note: Programmable pushbutton/LEDs available only on Trim Ring 60-2258-26
Trim Ring
