Modero 7" Touch Panels
4
NXD-700i & NXT-CA7 7” Modero Touch Panels
NXD-700i Panel Connectors

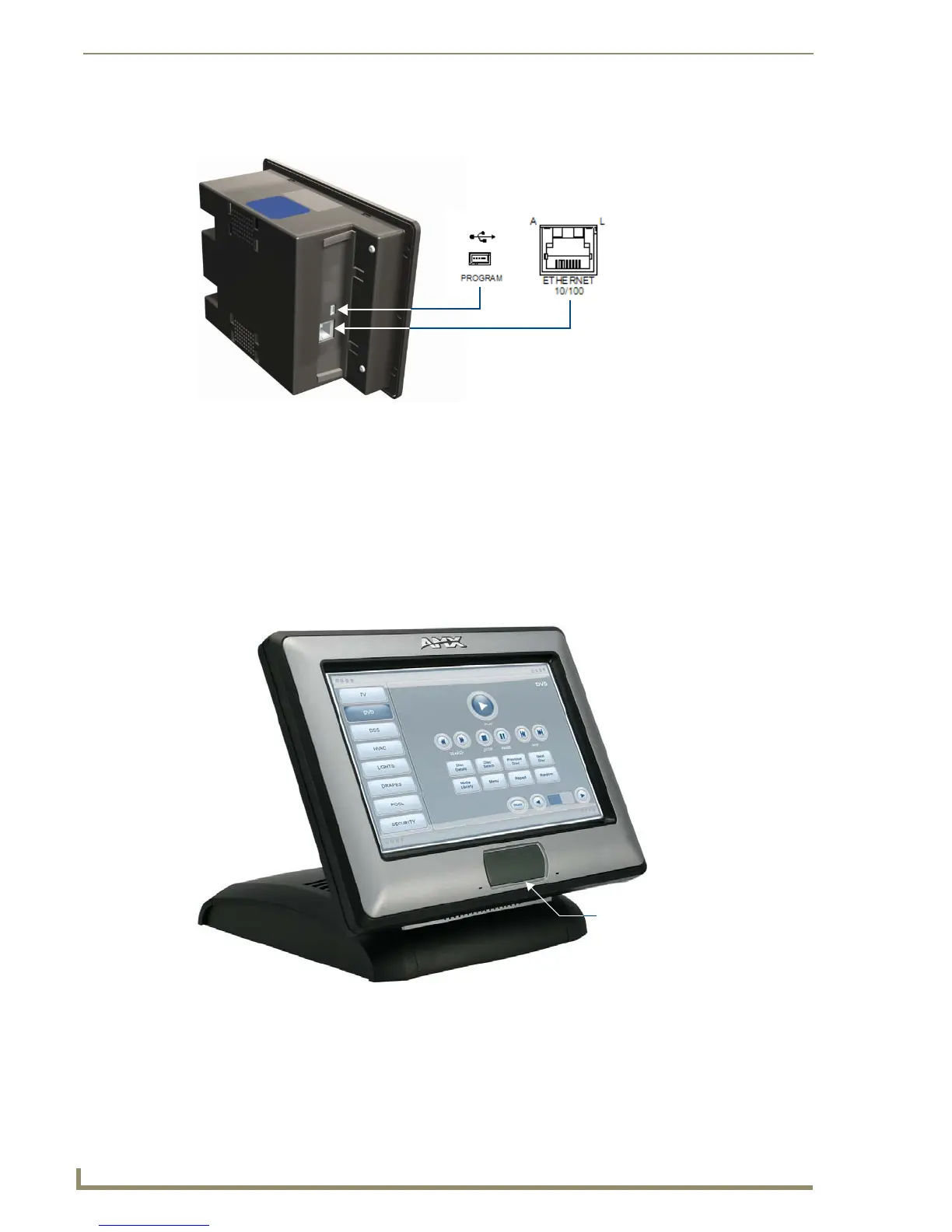

FIG. 3 shows the connectors located on the NXD-700i:
The mini-USB port is used both for programming the touch panel and for audio output.
The mini-USB port automatically detects the presence of a headphone adaptor, allowing the port to
be used for headphone connectivity.
The Ethernet connector also supports Power over Ethernet (POE)
NXT-CA7 Overview
The NXT-CA7 (FG2258-09) is an incredibly versatile user interface, combining a sleek, compact size and
Table Top flexibility.
In places where space is critical, the 7” Modero integrates a small base and an expansive 16x9 aspect ratio for
maximum visibility and one-touch control options.
FIG. 3 Connector layout on the NXD-700i
FIG. 4 NXT-CA7 Modero Touch Panel Front View
Sleep/Setup Access Button
