NXT-CA7 - Installation
17
NXD-700i & NXT-CA7 7” Modero Touch Panels
NXT-CA7 - Installation
Overview
NXT-CA7 panels are mounted onto flat (horizontal) surfaces in either a stand-alone or combo (NXT atop an
NXA-BASE/1 battery base) configuration.
Unpacking the Panel
1. Inspect and confirm the contents of the shipment box to verify you have all specified parts.
Refer to the NXT-CA7 Specifications table on page 5 for a listing of included accessories and other
(optional) AMX equipment.
2. Carefully remove the panel from the shipping box.
3. Carefully peel the protective plastic cover from the LCD.
Ethernet/RJ-45 Port: Connections and Wiring

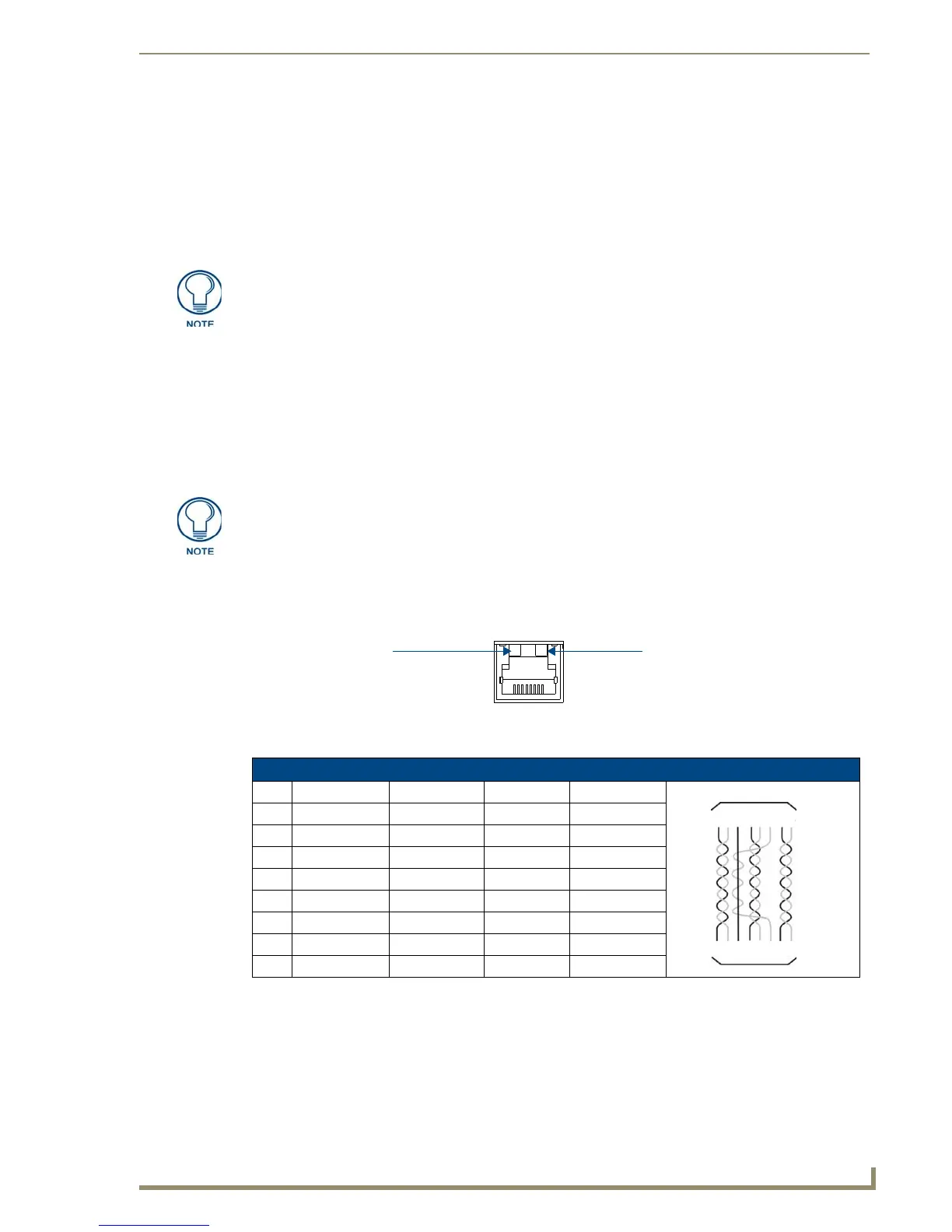

FIG. 18 describes the blink activity for the Ethernet 10/100 Base-T RJ-45 connector and cable. The Ethernet
cable is connected to the rear of Table Top and side of the Wall Mount panels.
The following table lists the pinouts, signals, and pairing associated with the Ethernet connector.
FIG. 19 diagrams the RJ-45 pinouts and signals for the Ethernet RJ-45 connector and cable.
It is recommended that if you are planning on upgrading your panel components, you
do so before beginning any panel installations.
If the protective plastic LCD cover is not removed, the panel may not respond
properly to touch points on the LCD or allow proper screen calibration.
FIG. 18 Ethernet connector (showing communication and connection LEDs)
Ethernet RJ-45 Pinouts and Signals
Pin Signals Connections Pairing Color
1 TX + 1 --------- 1 1 --------- 2 Orange-White
2 TX - 2 --------- 2 Orange
3 RX + 3 --------- 3 3 --------- 6 Green-White
4 PoE power 4 --------- 4 Blue
5 PoE power 5 --------- 5 4 --------- 5 Blue-White
6 RX - 6 --------- 6 Green
7 PoE power 7 --------- 7 7 --------- 8 Brown-White
8 PoE power 8 --------- 8 Brown
A L
A - Activity LED (yellow)
lights when receiving or
transmitting Ethernet
data packets
L - Link LED (green) lights when
the Ethernet cables are connected
and terminated correctly.
