Setup Pages and Descriptions
This section describes the Setup and Protected Settings pages and their specific functional elements.
Setup Navigation Buttons
The Setup Navigation Buttons (FIG. 44) appear on the left of the panel screen when the Setup page is currently
active.
Protected Setup
The Protected Setup button opens the Protected Setup page, which centers around the properties used by the
panel to communicate with the NetLinx Master. Refer to both the Protected Setup Navigation Buttons section
on page 52 and the Protected Setup section on page 45 for more detailed information.
Setup Page
The Setup page (FIG. 45) centers around basic Modero panel properties, such as the Connection Status of the
panel, Display Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness.

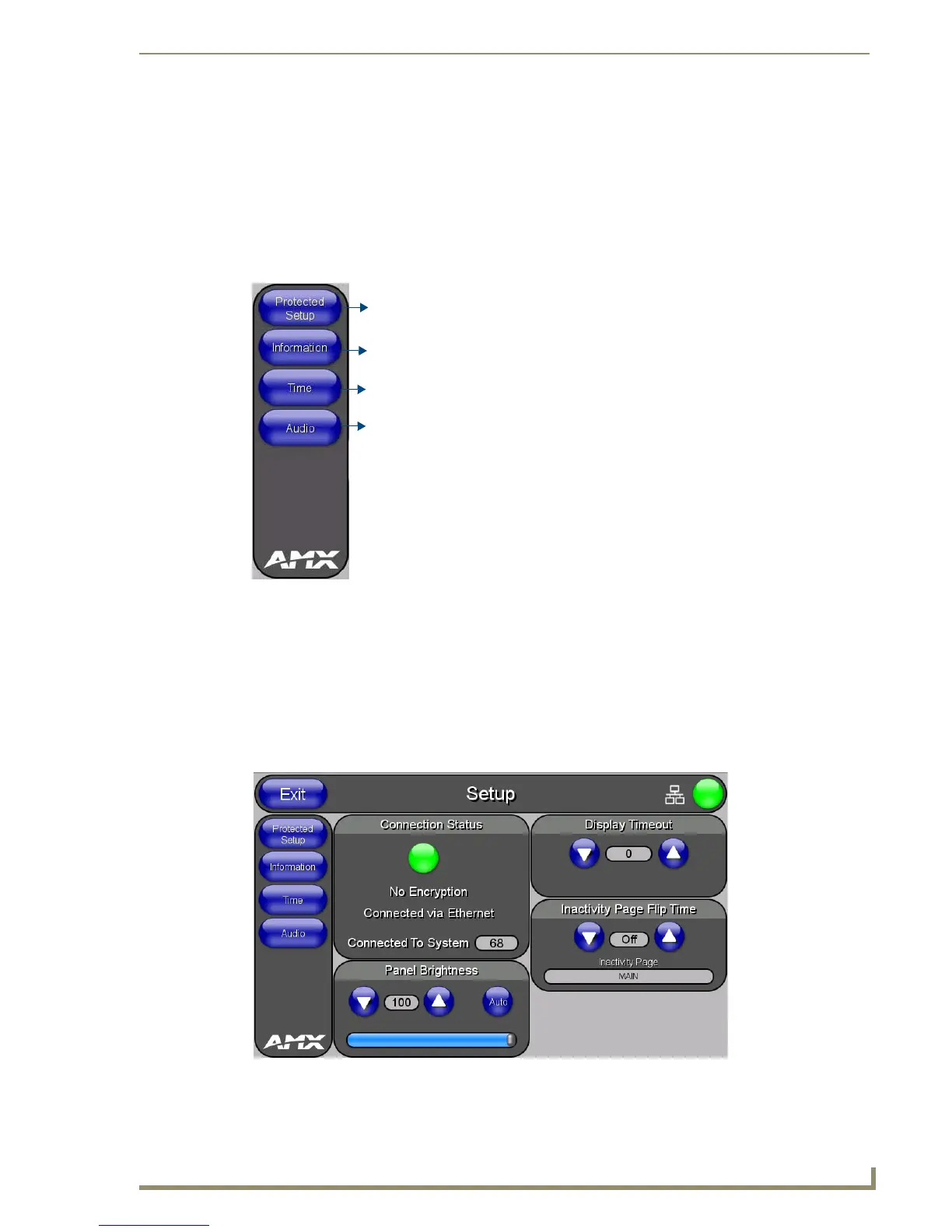

FIG. 44 Setup Navigation Buttons
FIG. 45 Setup page
Press to access the Protected Setup page for panel calibration and to access
security release passwords and connection settings.
Press to access the Information menu and select either Project Information or
Panel Information.
Press to access the Time & Date Settings page to alter the time and date settings on
Press to access the Audio Settings page to alter the audio parameters on
the Modero panel.
the Master.
