PS-POE-AF PoE Injector
19
NXD-700i & NXT-CA7 7” Modero Touch Panels
PS-POE-AF PoE Injector
Overview
The PS-POE-AF PoE Injector (FG423-80) is a single-port, self-contained Power-over-Ethernet (PoE) power
supply that delivers both DC power and data to PoE-equipped devices by “injecting” DC power through a Cat5
Ethernet cable (FIG. 20).
The PoE Injector allows devices such as the 7" Modero Touch Panels to function without an additional power
connection other than an Ethernet connection.
Power-over-Ethernet (PoE) eliminates the need for an AC outlet at each device installation point, resulting in
easier and less expensive installation. It also can be used to extend the distance between the PoE devices and
standard power outlets by up to 328 feet (100 meters).

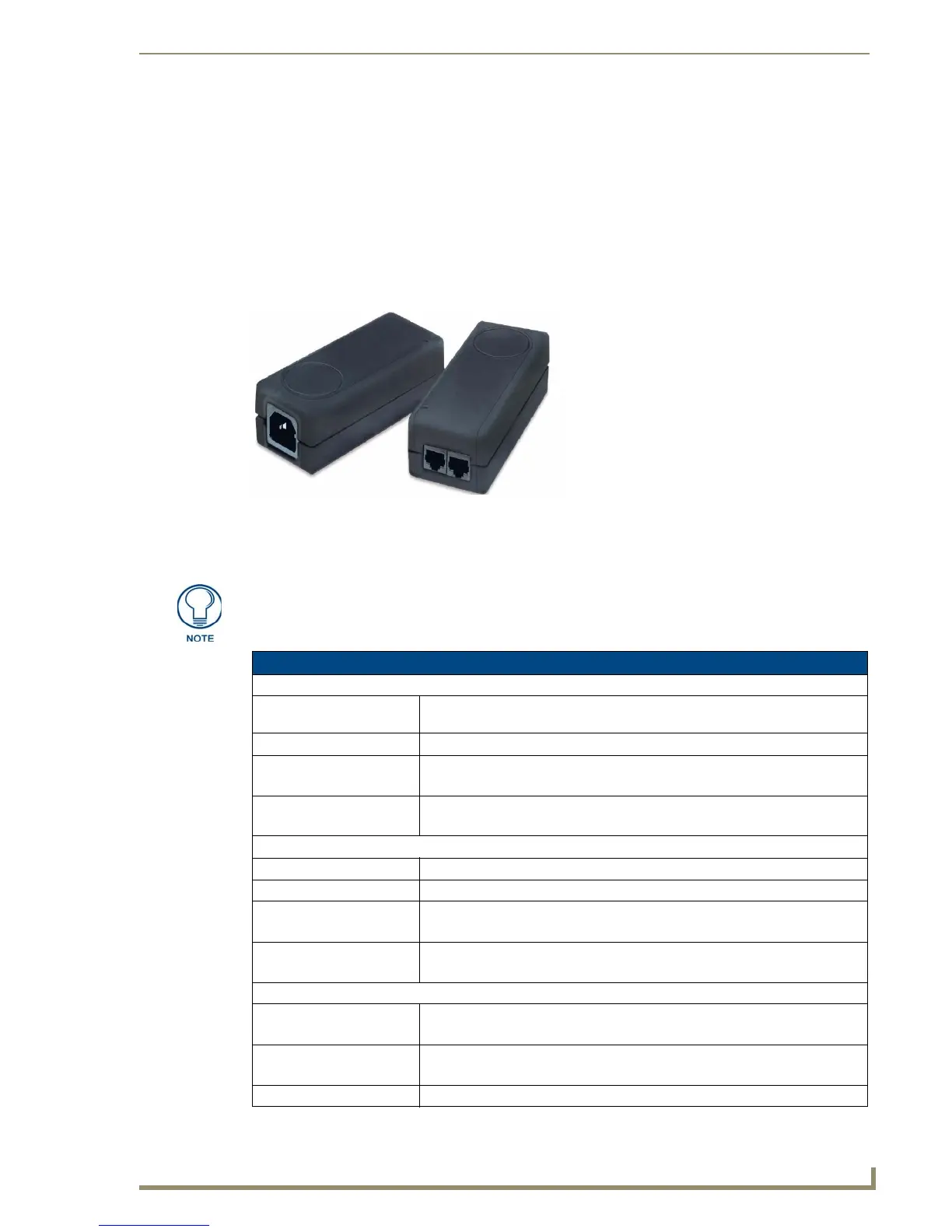

FIG. 20 PS-POE-AF Power-Over-Ethernet Power Supply
Each PoE Injector may be used for one device’s power needs. Multiple devices in a
network that require PoE will require multiple Injectors.
PS-POE-AF Specifications
Output Specifications
Combined Line and Load
Voltage Regulation
Excluding Cord ±1%
Ripple 1% Vp-p max.
Transient Response • 0.5ms for 50%
• Load Change Typical
Protection • Foldback Overcurrent Protection
• Short Circuit Protection
Input Specifications
AC Input Voltage Range 100-240VAC -10%, +6%
Line Frequency 47-63Hz
AC Input Current • 90VAC Input
•0.6A max.
Protection • Internal Primary Current Fuse
• Inrush Limiting
General Specifications
Topology • Switching-Fixed
• Frequency Flyback
Dielectric Withstand • Primary-Secondary 3000VAC, 4250VDC
• Secondary-Ground 500VDC
Spacing 5mm Primary-Secondary
