NXD-700i & NXT-CA7 7” Modero Touch Panels
Panel Information Page
The Panel Information page (FIG. 48) centers around Modero panel properties that include resolution used,
on-board memory, firmware, address/channel information, and string information.
The elements of the Panel Information page are as follows:
Project Information Page (Cont.)
AMX IR Port: Displays the AMX 38 kHz IR channel port used by the IR receiver on the panel.
• This information is pulled by the panel from AMX IR Receivers section of the
TPD4 Project Properties > IR Emitters & Receivers tab.
• For IR reception, this is the port that reports a push on for the corresponding
IR code.
• IR receivers and transmitters on G4 panels share the device address number
of the panel.
Build Number: Displays the build number information of the TPD4 software used to create the
project file.
Creation Date: Displays the project creation date.
Revision Date: Displays the last revision date for the project.
Last Save Date: Displays the last date the project was saved.
Blink Rate: Displays the feedback blink rate (10th of second).
Job Comments: Displays any comments associated to the job. These comments are taken from
the TPD4 project file.

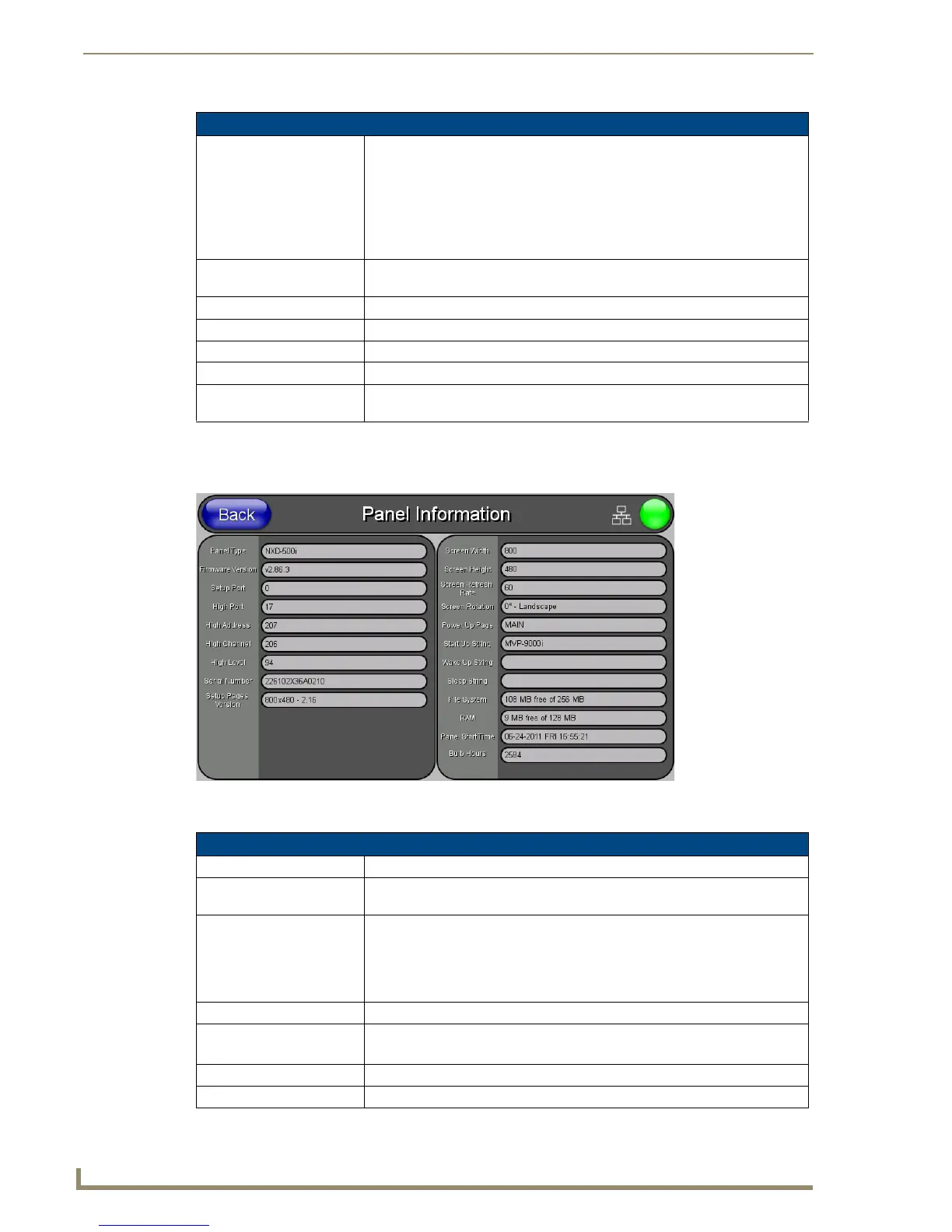

FIG. 48
Panel Information page
Panel Information Page
Back: Returns to the previously active touch panel page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current
connection to the Master is Wired (image of three networked computers).
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status, regardless of what page is
currently active.
• A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master requiring a username and password.
Panel Type: Displays the model of the Modero panel being used.
Firmware Version: Displays the G4 firmware version being used by the panel.
• Verify that the panel has the latest version from www.amx.com.
Setup Port: Displays the setup port information/value being used by the panel.
High Port: Displays the high port (port count) value for the panel.
