5. Press the Enable/Enabled button until it toggles to Enabled (light blue color).
6. The Network Interface Select field is read-only and displays the method of communication to the web.
Verify the selection of the proper interface connection, as this field does not auto-detect the connection
type being used (see below).
Wired is used when a direct Ethernet connection is being used for communication to the web. This
is the default setting if no wireless interface card is detected or if both an Ethernet and wireless card
connection is detected by the panel.
Wireless is used when a wireless card is detected within the internal card slot. 7" Modero panels do
not provide wireless communication, so this option is not available.
7. Press the Web Control Name field to open the Web Name keyboard.
8. From the Web Name keyboard, enter a unique alphanumeric string to identify this panel and press Done
when finished. This information is used by the NetLinx Security Web Server to display on-screen links to
the panel. The on-screen links use the IP Address of the panel and not the name for communication
(FIG. 35).
9. Press the Web Control Password field to open the Web Password keyboard.
10. From the Web Password keyboard, enter a unique alpha-numeric string to be assigned as the G4
Authentication session password associated with VNC web access of this panel. Press Done when
finished.
11. Press the Web Control Port field to open the Web Port Number keypad.
12. Within the keypad, enter a unique numeric value to be assigned to the port being used by the VNC Web
Server and press Done when finished. The default value is 5900. The remaining fields within the G4 Web
Control Settings section of this page are read-only and cannot be altered.

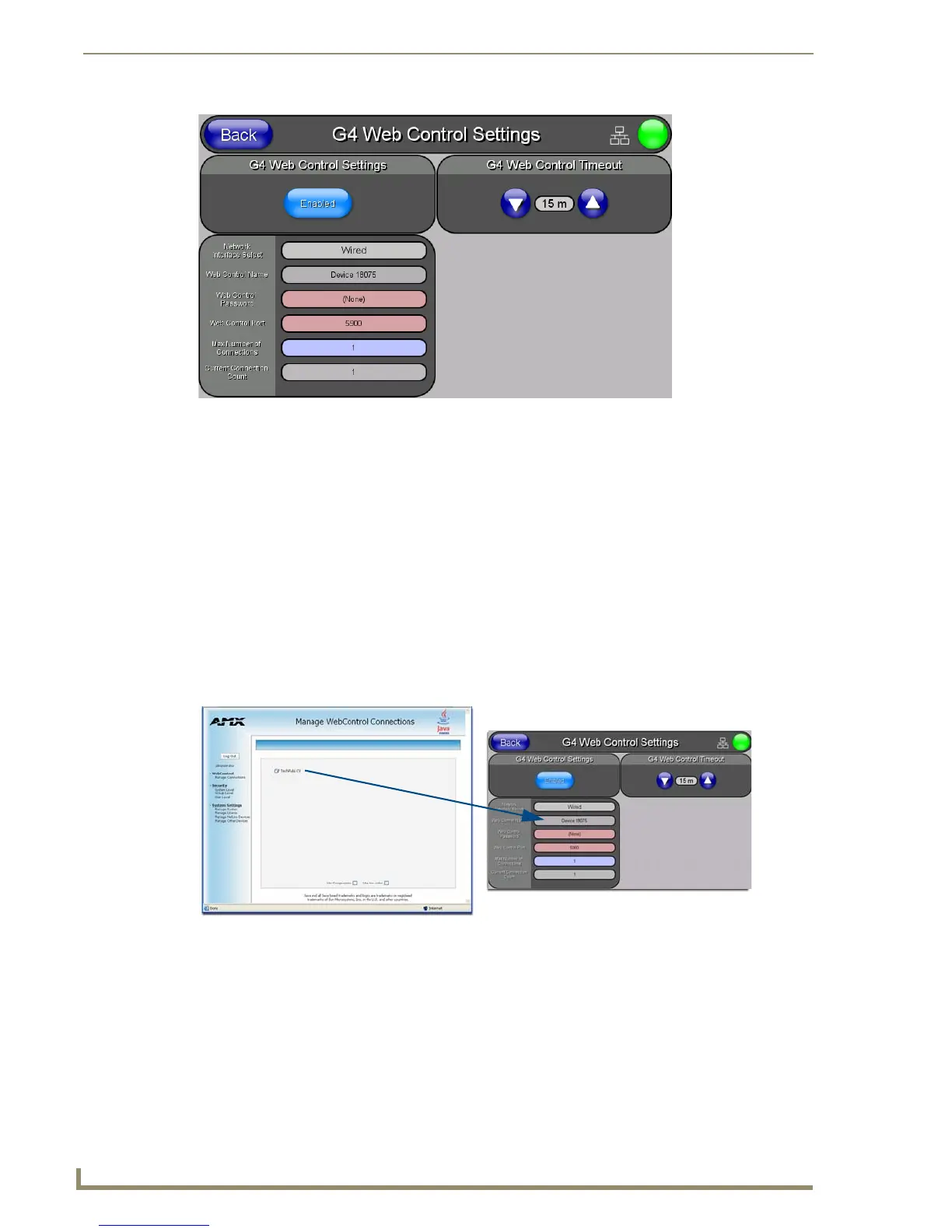

FIG. 34 G4 Web Control page
FIG. 35 Sample relationship between G4 Web Control and Mange WebControl Connections window
