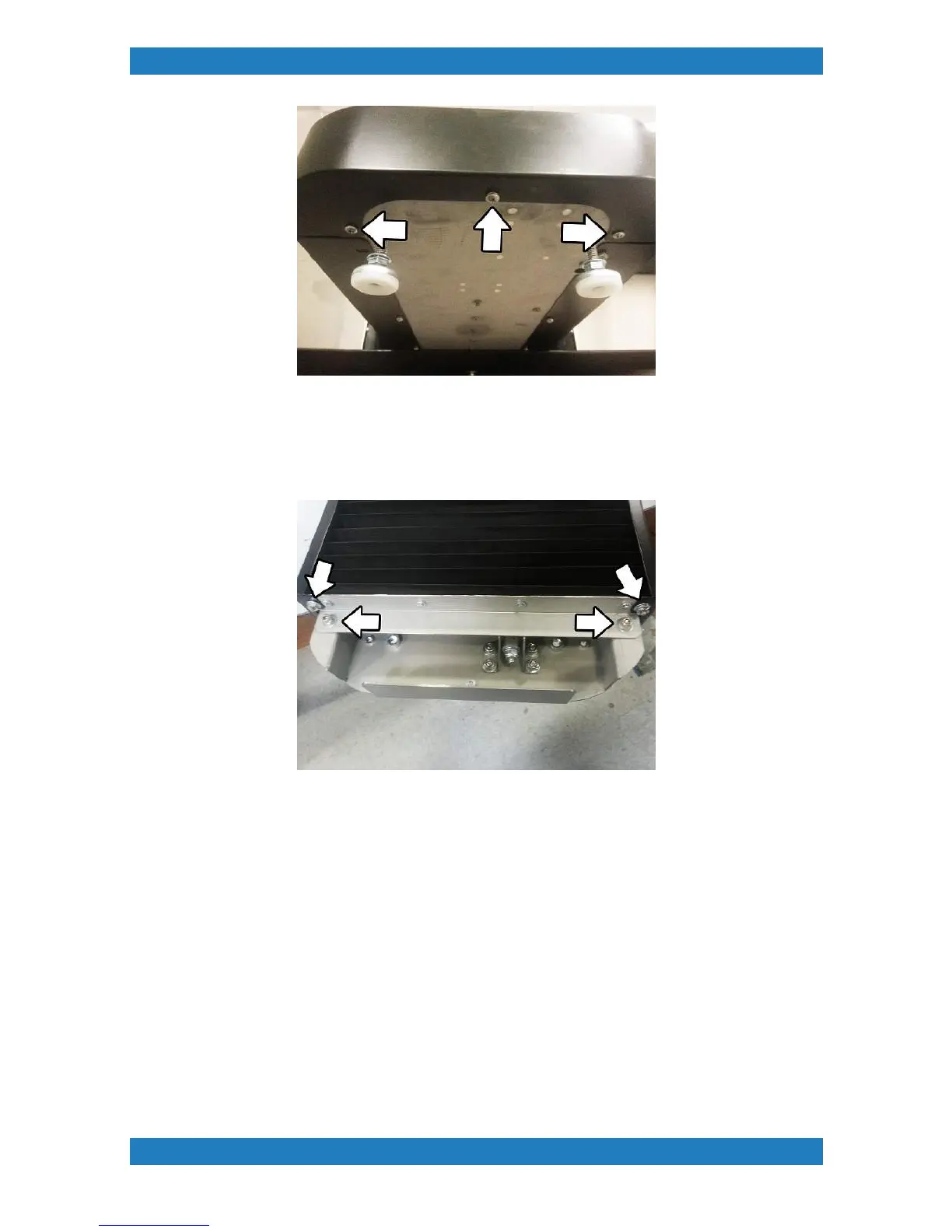

Photo 2.3.5

4. Remove the Two 10-32 screws (use a 11/32 ratchet wrench) and two 8-32 nuts (use 10/32 Allen key / T

handle) from the pleated screen mount and slide the pleated screen back to reveal the table belt tensionor.

See Photo 2.3.6 below.

Photo 2.3.6

3. Loosen the table belt bracket nuts(use a 3/8 ratchet wrench). Loosening the adjustment nut on the

threaded rod (use a 7/16 ratchet wrench). See Photo 2.3.7
