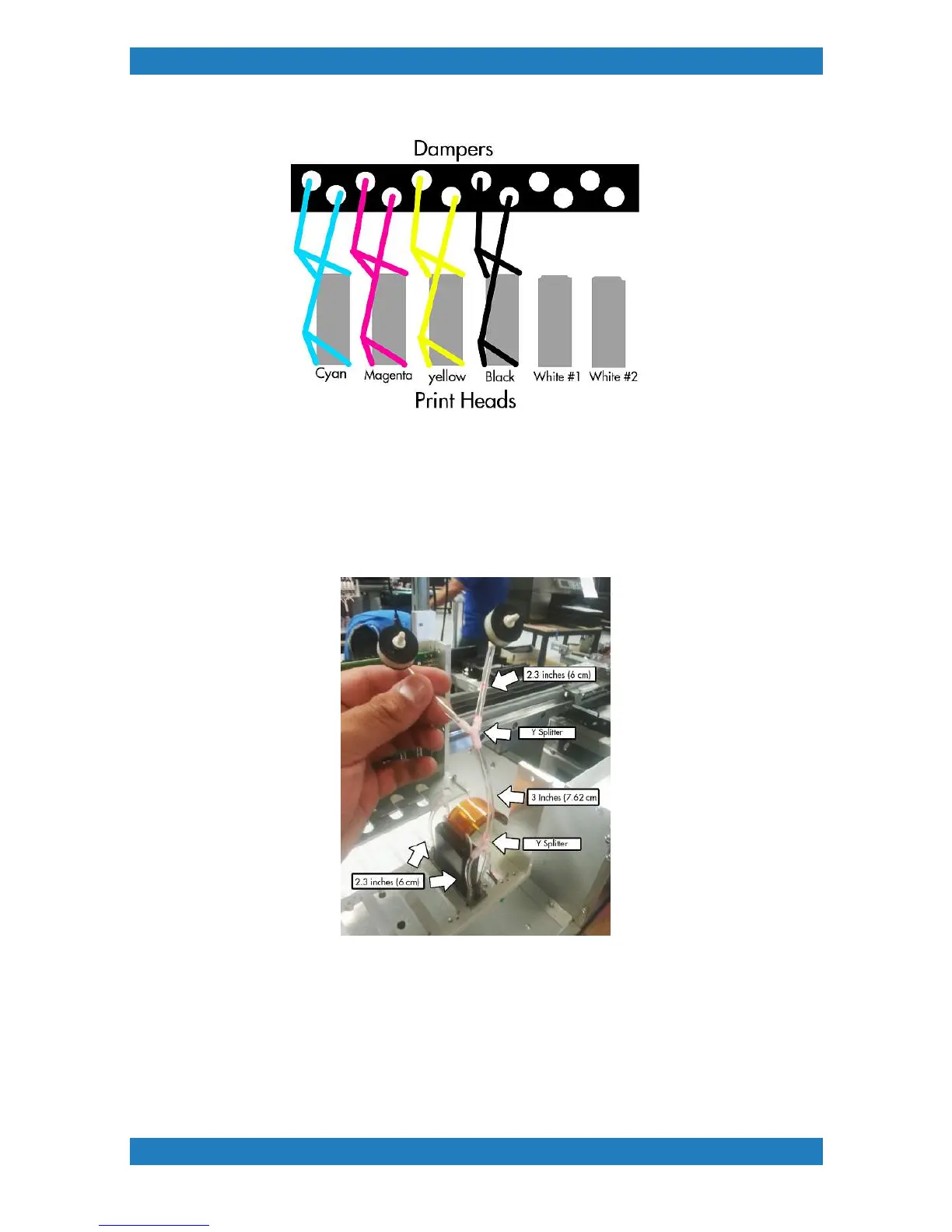

Photo 3.2.5
The white print heads consist of a Y splitter in the front > Followed by 3 inches (7.62cm) of tubbing > Y
splitter > 2.3 inches of tubbing > Damper Valve.
The back of the print heads will have a Y splitter connected one for each purge line.
The valves will bend back and connect to the corresponding dampers. See Photo 3.2.6
