AnaJet mP5i - Page 53

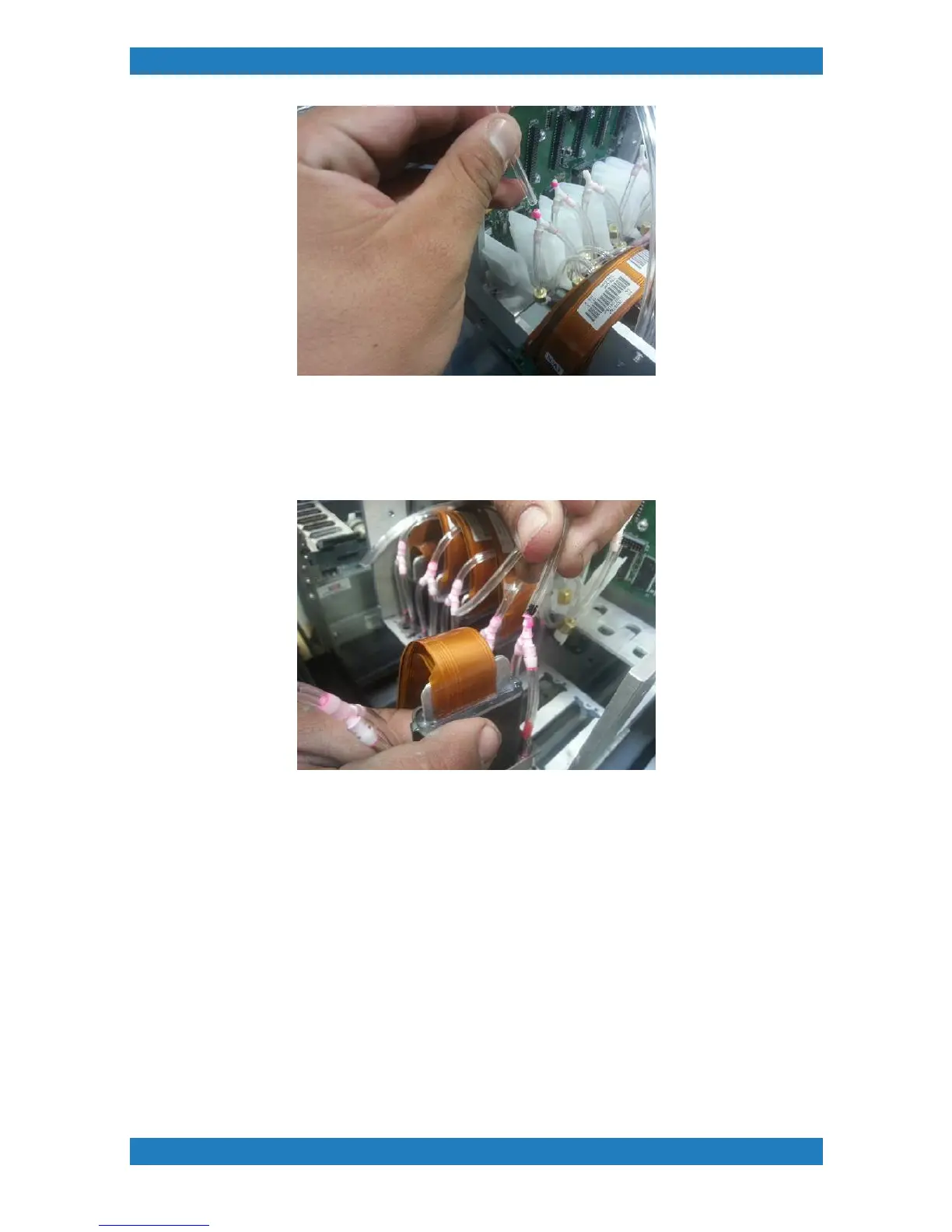

Photo 3.2.8
Connecting Purge lines
The purge lines (set of 2) will connect direct to the back of the white print heads using the Y splitter. If there
is extra tubbing cut a small amount if needed. See Photo 3.2.9
Photo 3.2.9
Your carriage tubbing should now all be connected. See photo 3.2.10
Anajet mPower i-Series ServiceManual
53
