Photo 3.2.12

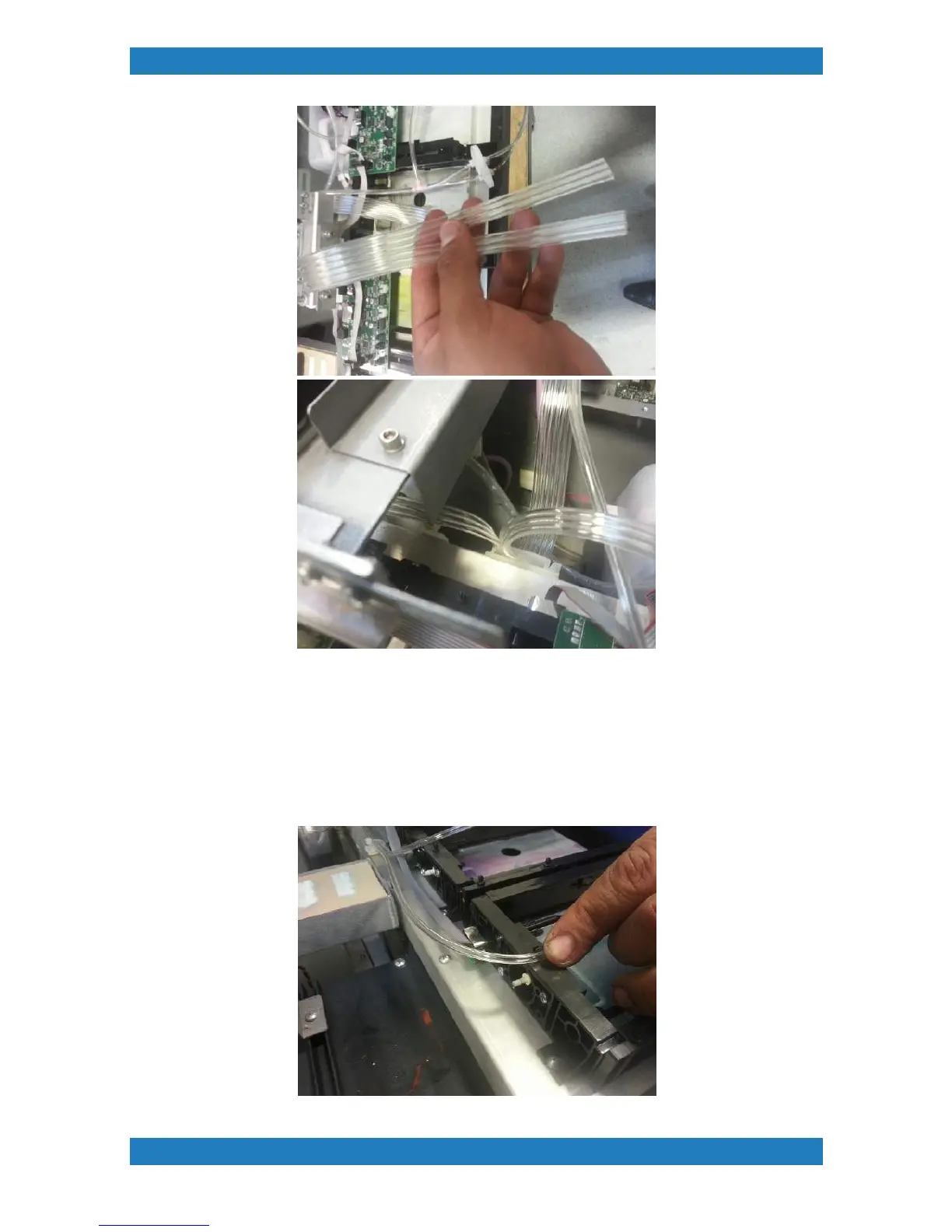

Split tube #1 (yellow) and make the measurement to have the correct length to the needle. See image below.

One you have an appropriate length we can cut and connect the tube to the needle. Make sure the tube is

connected all the way into the valve. Do the same to tube #2 (magenta) . KEEP ALL EXTRA TUBBING

PIECES WE WILL USE THEM LATER. See photo 3.2.13
