Photo 3.2.13

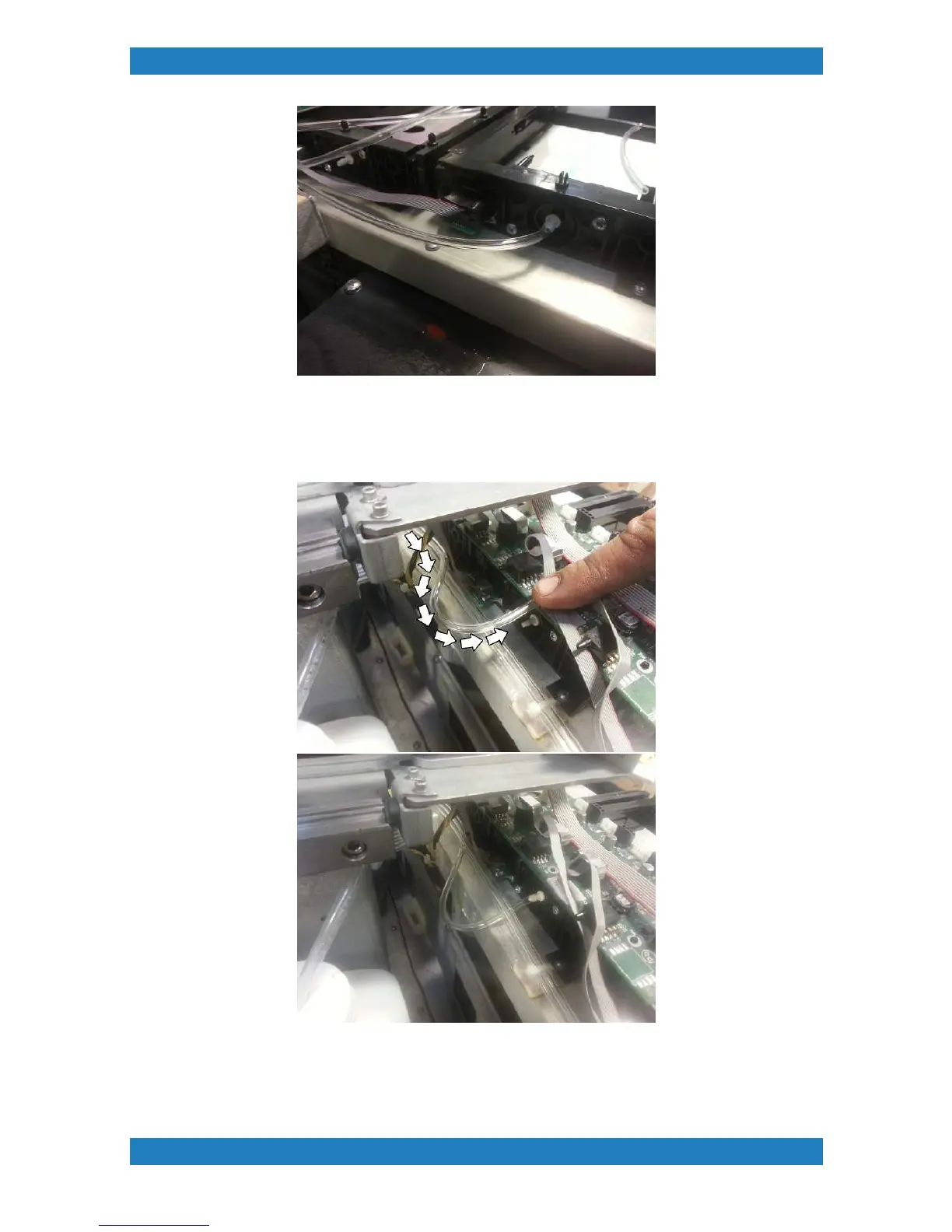

Tube #3 (yellow) will have a small curve to the tubbing. Its very important that the tube is not kinked or bent. If

the tube is bent it will result in poor to no ink flow. See photo 3.2.14

Photo 3.2.14

Tube #4 (Black) will have a small loop around the print lines. See image below. It is very important that the

tube is not kinked or bent. If the tube is bent it will result in poor to no ink flow. See photo 3.2.15
